WELE
FG 1610/1612/2012

Type: Vertical machining center Vertical

Brand: WELE

Model: FG 1610/1612/2012

C.N.C: Fanuc 31iM

Request a quote

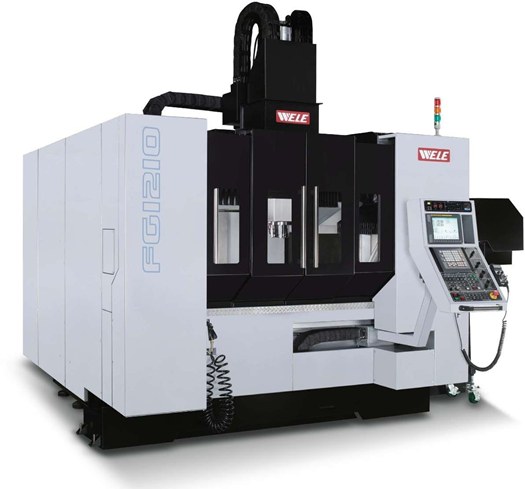

Vertical machining center WELE FG 1610/1612/2012

Technical information

Table

Table dimensions: 1610x1000/1610x1200/2010x1200 mm

Capacity

Longitudinal X-travel: 1600/2000 mm
Cross Y-travel: 1000/1200 mm
Vertical Z-travel: 650/720 mm

Spindle

Spindle nose: 40 ISO
Spindle speed: 15000 rpm.
Motor power: 15-22 Kw

Tool Warehouse

Tool Stations: 20/40 no.

Table mm. : 1610x1000/1610x1200/2010x1200

X,Y,Z strokes mm. : 1600/2000x1000/1200x650/720

RPM : 15000

Power Kw : 15-22

ISO : 40

Tools : 20/40
