Home New Vertical machining center WELE LB 321/421/521

WELE
LB 321/421/521

Type: Vertical machining center Gantry

Brand: WELE

Model: LB 321/421/521

C.N.C: Fanuc 31iMB

Watch the video

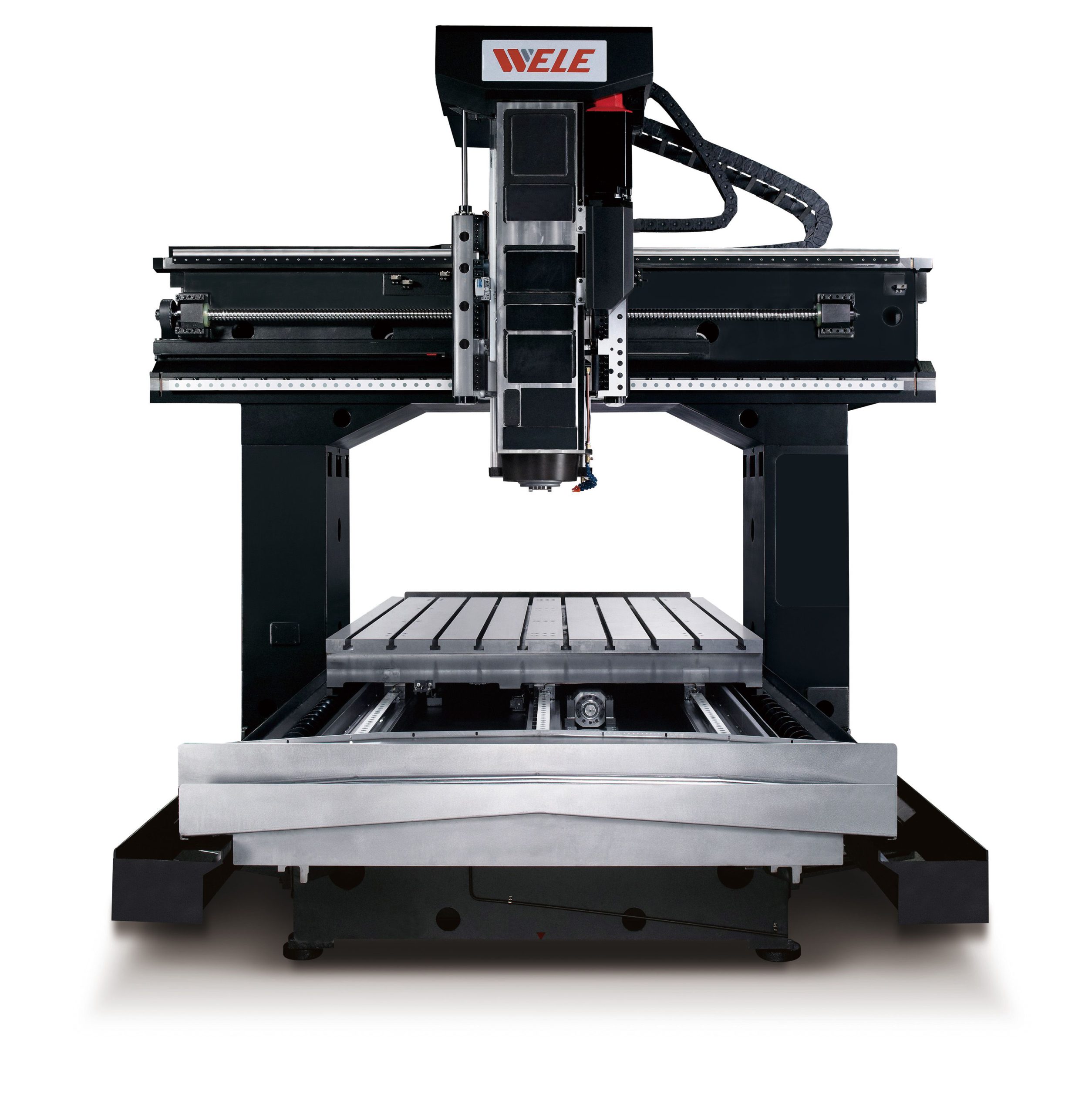

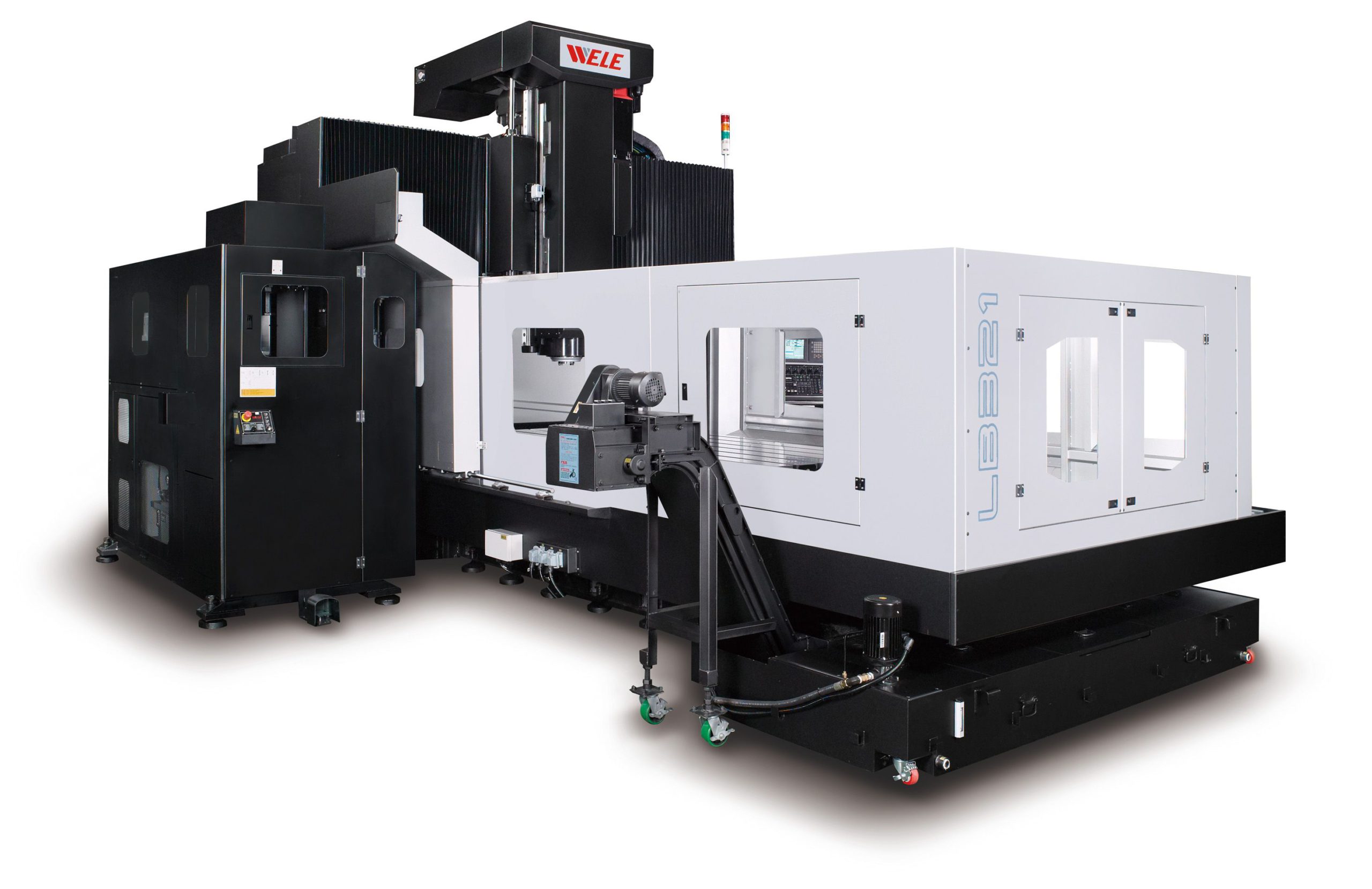

Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521
Vertical machining center WELE LB 321/421/521

Technical information

Table

  • Table dimensions: 3000/4000/5000x2000 mm
  • Max table load: 12000 kg

Turning capacity

  • Longitudinal X-travel: 3060/4060/5060 mm
  • Cross Y-travel: 2150 mm
  • Vertical Z-travel: 800 mm

Spindle

  • Spindle nose: 50 ISO
  • Spindle speed: 6000 giri/min.
  • Motor power: 22 - 26 Kw

Tool magazine

  • Tools holder: 32 nr.

Specific properties

  • Max table load capacity: 12.000 kg

Table mm. : 3000/4000/5000x2000

X,Y,Z travels mm. : 3060/4060/5060x2150x800

Rpm : 6000

Motor power Kw : 22-26

ISO : 50

Tools : 32
