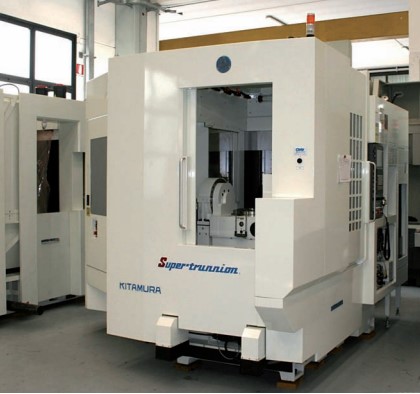

KITAMURA
SUPERTRUNNION

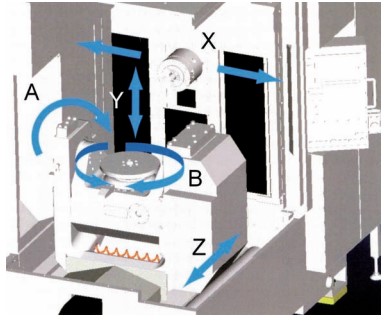

Type: Horizontal machining center 5- Axis machining center

Brand: KITAMURA

Model: SUPERTRUNNION

Year: 2009

C.N.C: FANUC 300iS

Serial number: 40990

Request a quote

SUPERTRUNNION

SUPERTRUNNION

SUPERTRUNNION

SUPERTRUNNION

Technical information

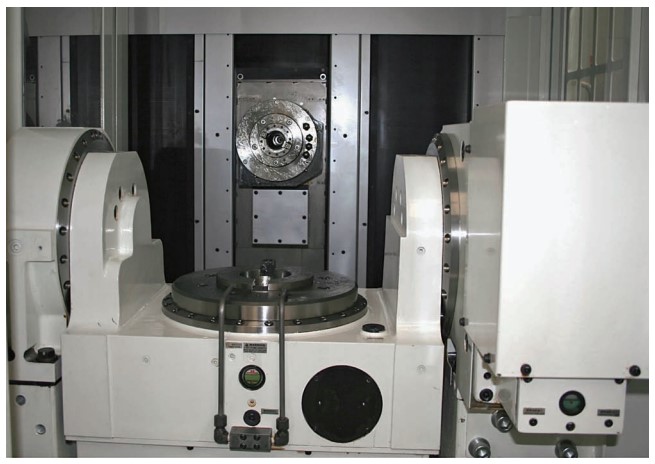

Table

Pallet dimensions: Ø 350 mm
Table rotation: 0,001 gradi

Turning capacity

Longitudinal X-travel: 510 mm
Vertical y-travel: 510 mm
Cross z-travel: 510 mm
Rapid feedrates: 50 mt./min.

Spindle

Spindle nose: 40 ISO
Spindle speed: 20000 giri/min.
Motor power: 18,5 Kw

Tool magazine

Tools holder: 80 nr.

Pallet mm. : Ø 350

X,Y,Z travels mm. : 510x510x510

Rpm : 20000

Motor power Kw : 18,5

ISO : 40

Tools : 80
