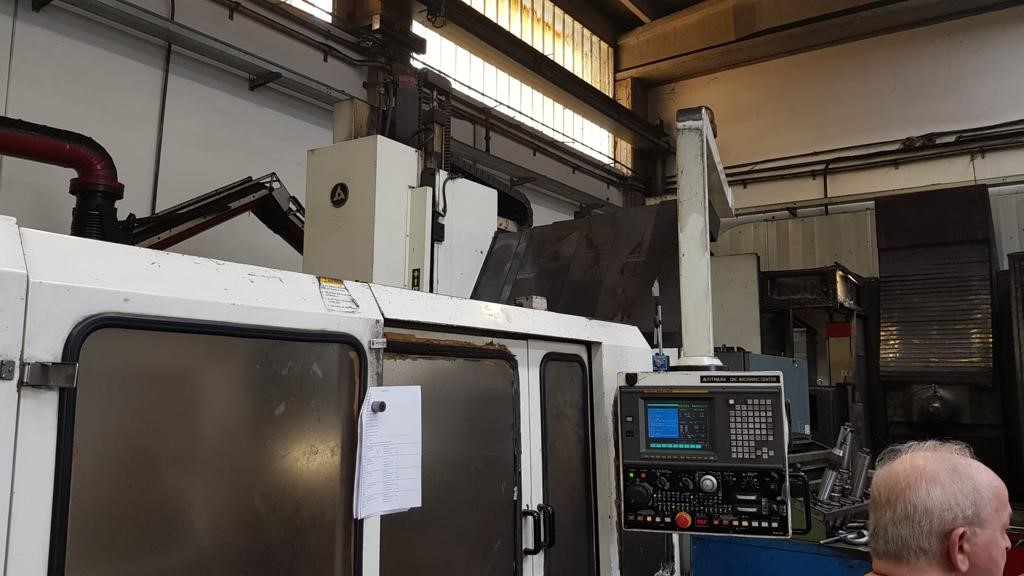

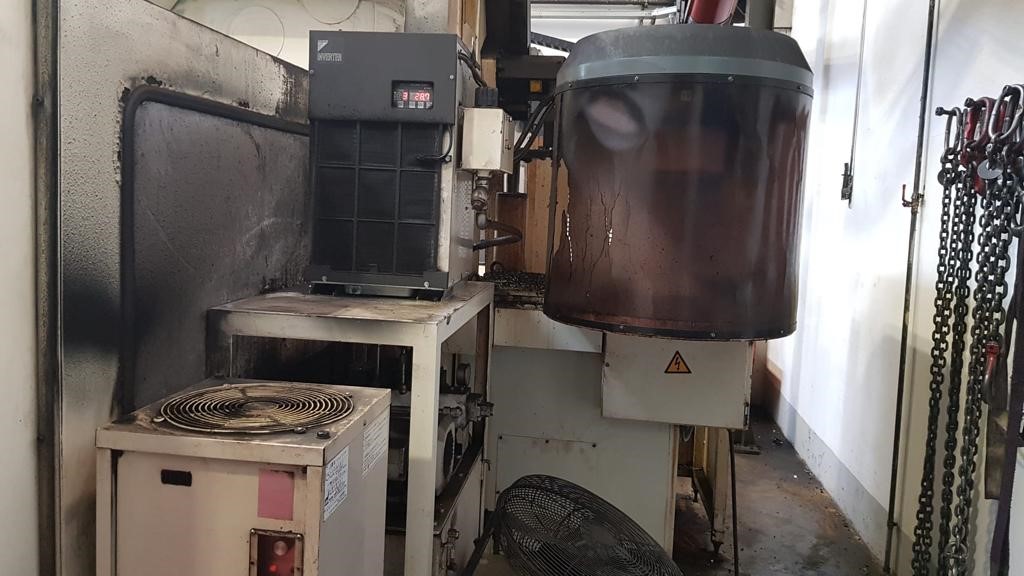

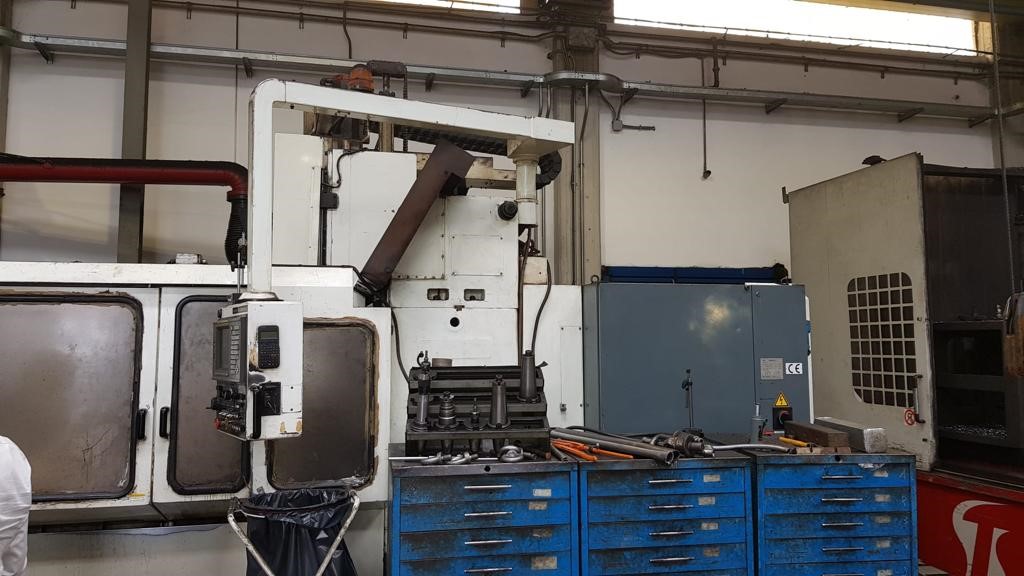

KITAMURA
BRIDGECENTER 8
Type: Vertical machining center Gantry
Brand: KITAMURA
Model: BRIDGECENTER 8
C.N.C: Fanuc 15 MB
Serial number: 55125
Technical information
Table
- Table dimensions: 900x2500 mm
- Max table load: 3000 kg
Turning capacity
- Longitudinal X-travel: 2032 mm
- Cross Y-travel: 1085 mm
- Vertical Z-travel: 710 mm
Spindle
- Spindle nose: 50 ISO
- Spindle speed: 35-3500 giri/min.
- Motor power: ac22 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 12.000-12.000-10.000 mm/min
Tool magazine
- Tools holder: 30 nr.
Table mm. : 900x2500
X,Y,Z travels mm. : 2032x1085x710
Rpm : 35-3500
Motor power Kw : AC22
ISO : 50
Tools : 30
