BIGLIA
B301 SM

Sold

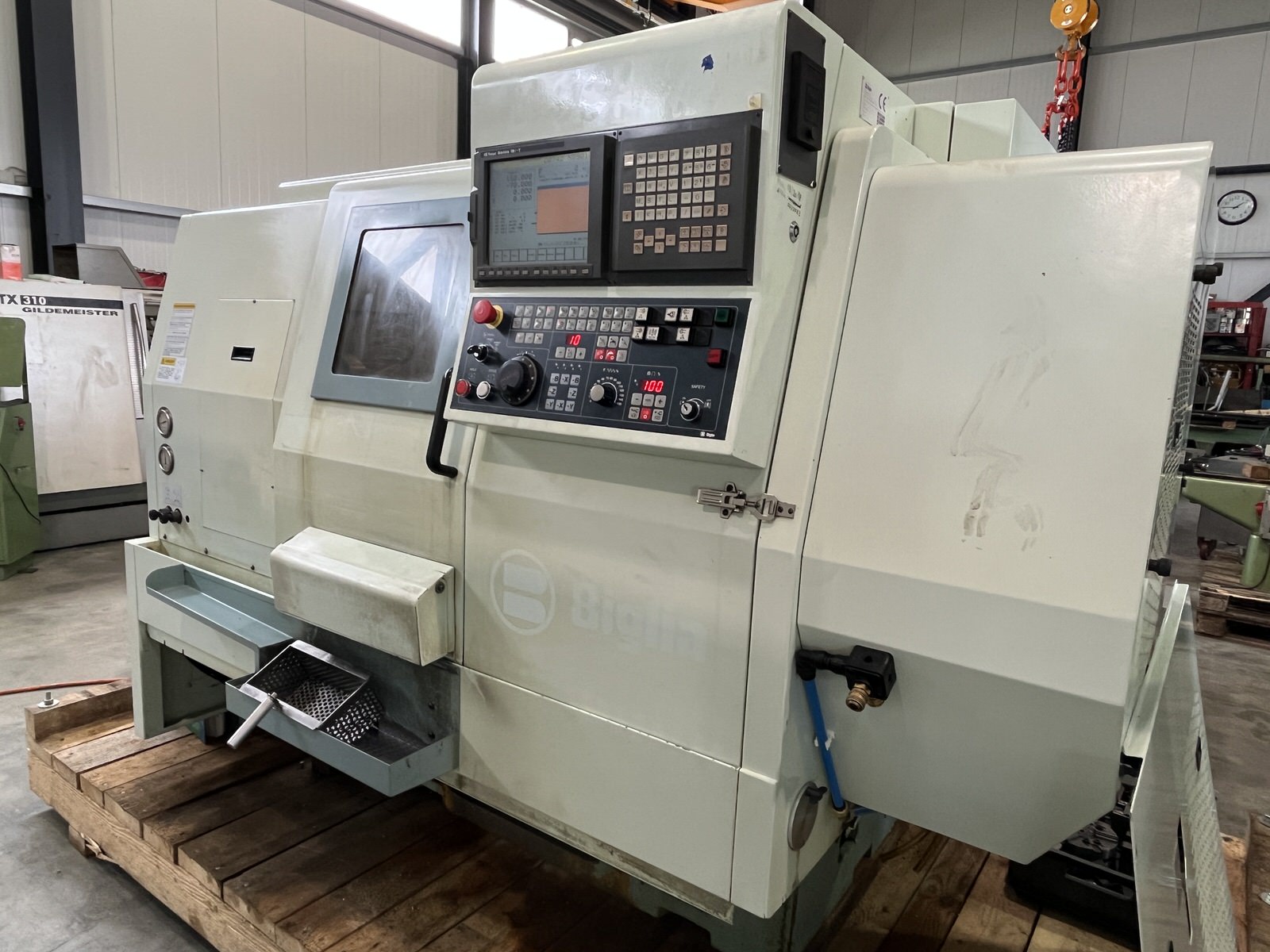

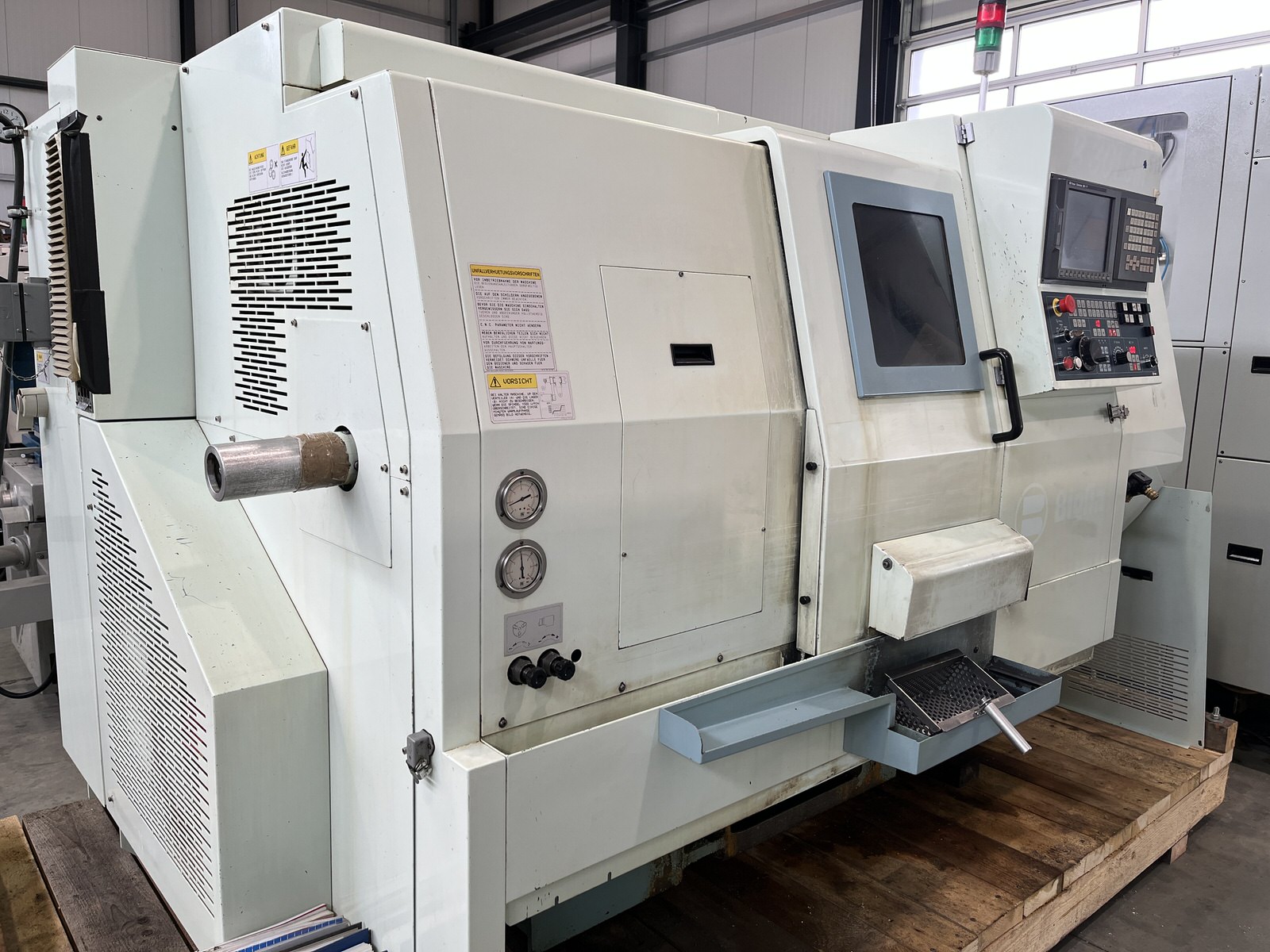

Type: Cnc lathe With subspindle

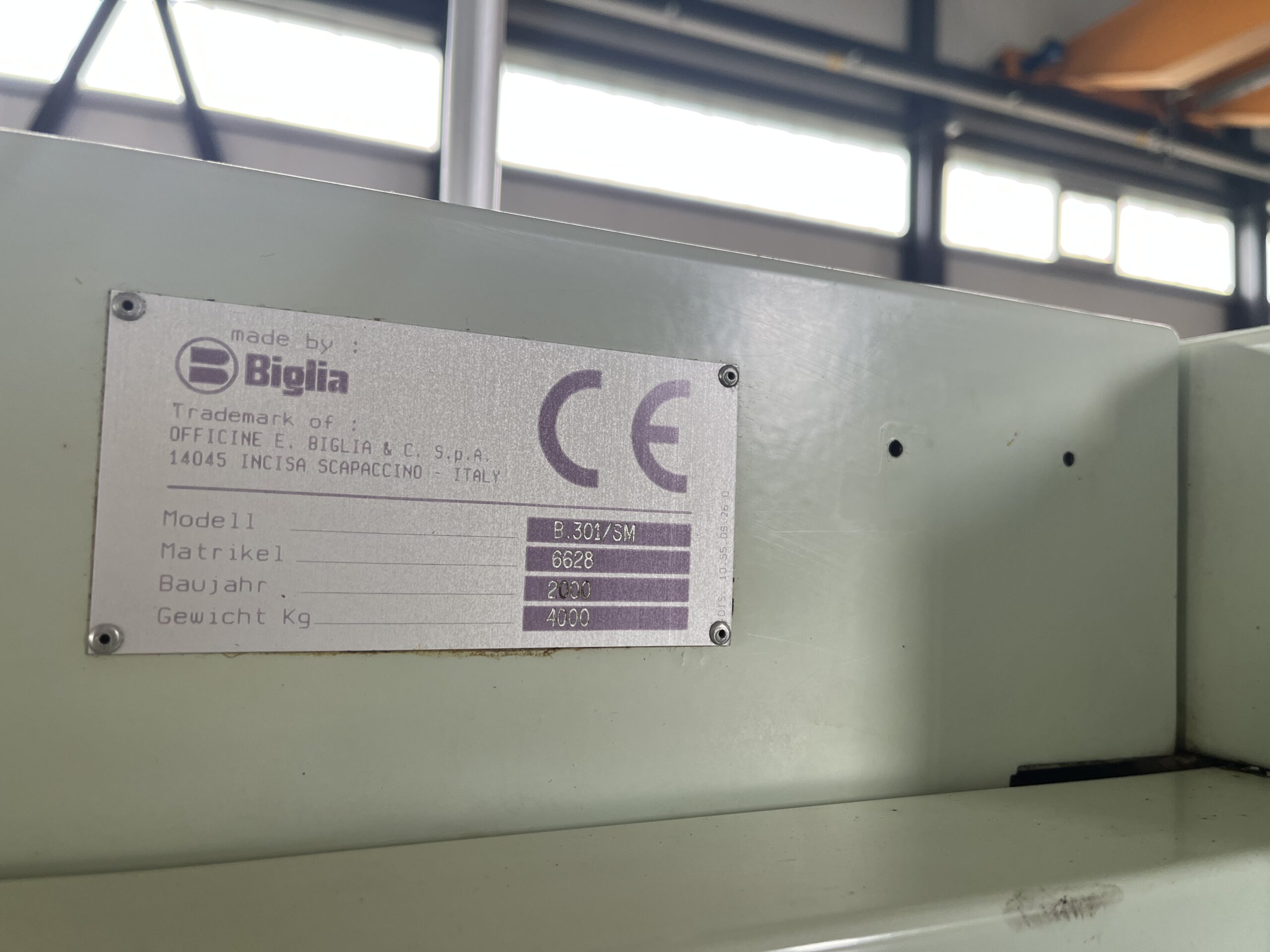

Brand: BIGLIA

Model: B301 SM

Year: 2000

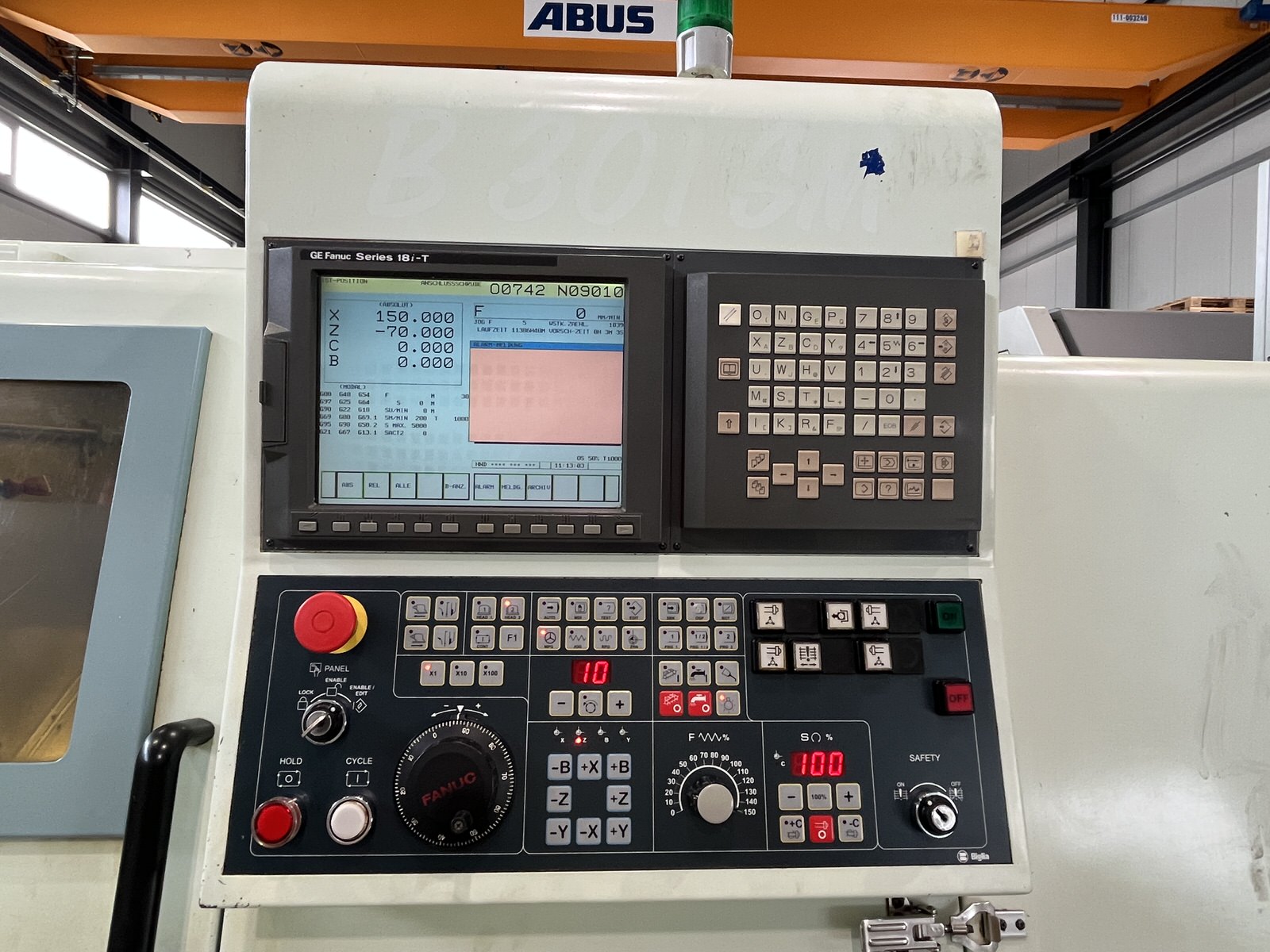

C.N.C: FANUC 18iT

Serial number: 6628

Technical information

Specifications

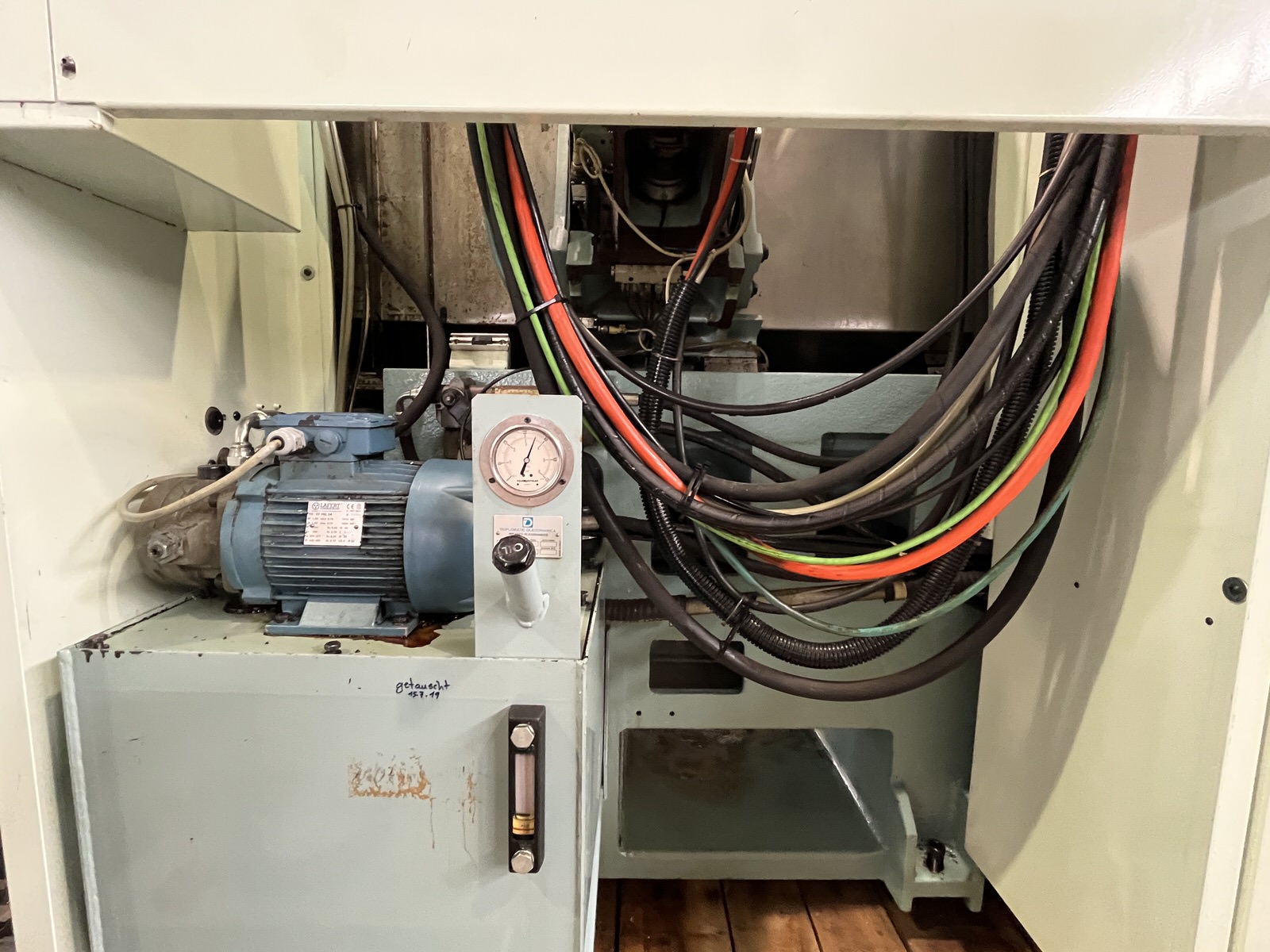

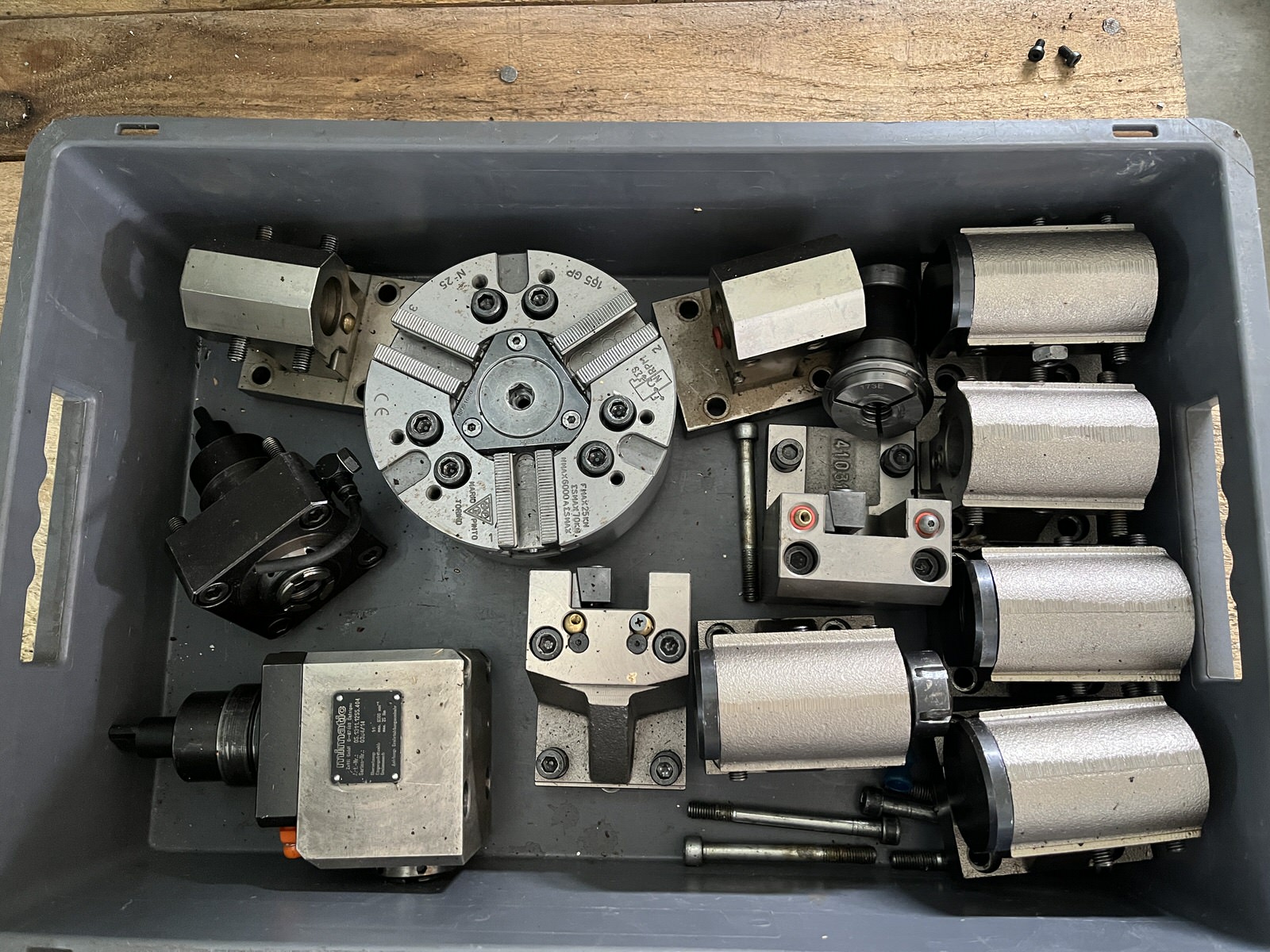

ACCESSORIES: No. 1 TOOL SETTER.• No. 1 Additional Pump for the collant with high pressure (7 bar) with Filter for 4 bar and 7 bar pump. • Part catcher and slider for unloading of pieces till length 200 mm. • No. 1 axial driven tool •No 1 radial driven tool •No. 9 fixed tool older •No. 1 Chuck Brand Mario Pinto 165 mm •No. 2 Collet holders Bellegrandi.

Specific properties

– Max.working bar diameter mm 42
– Max. machining diameter mm 200
– Max. machining length mm 380
– Max. swing over diameter mm 400
MAIN SPINDLE:
– Max speed : giri/min. 100-5000
– Spindle nose: ASA 5?
– Spindle bore: mm 52
– Chuck diameter: mm 165
– Motor power : Kw 11-15(50%)

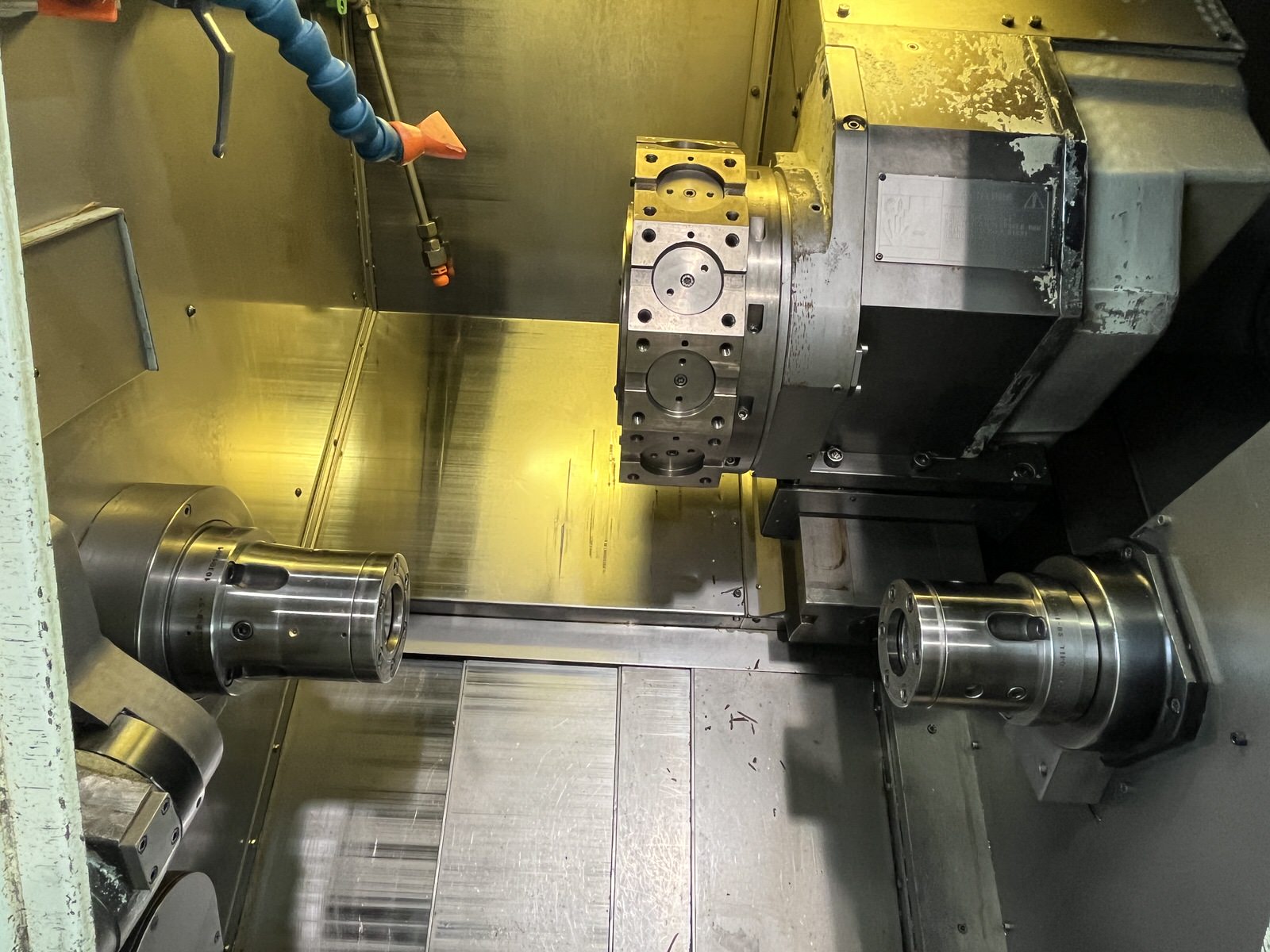

SUBSPINDLE:
– Max speed: 5000 Rpm
– Spindle nose: ASA 4
– Spindle bore: mm 42
– Inside diam of bearings: mm 27
– Chuck diameter mm 130
– Motor power Kw 3,7-5,5(50%)

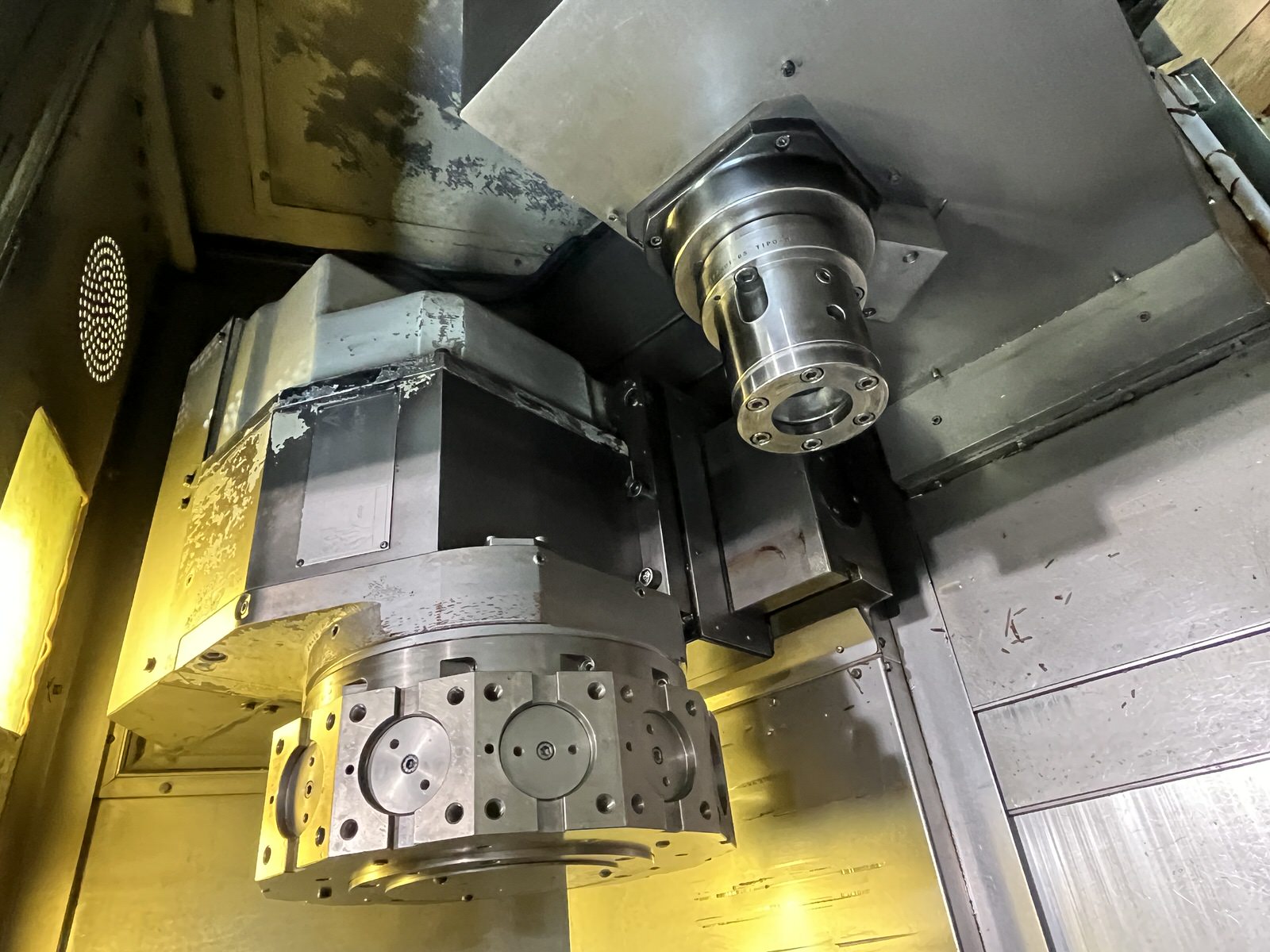

TURRET
– Tool positions 12
