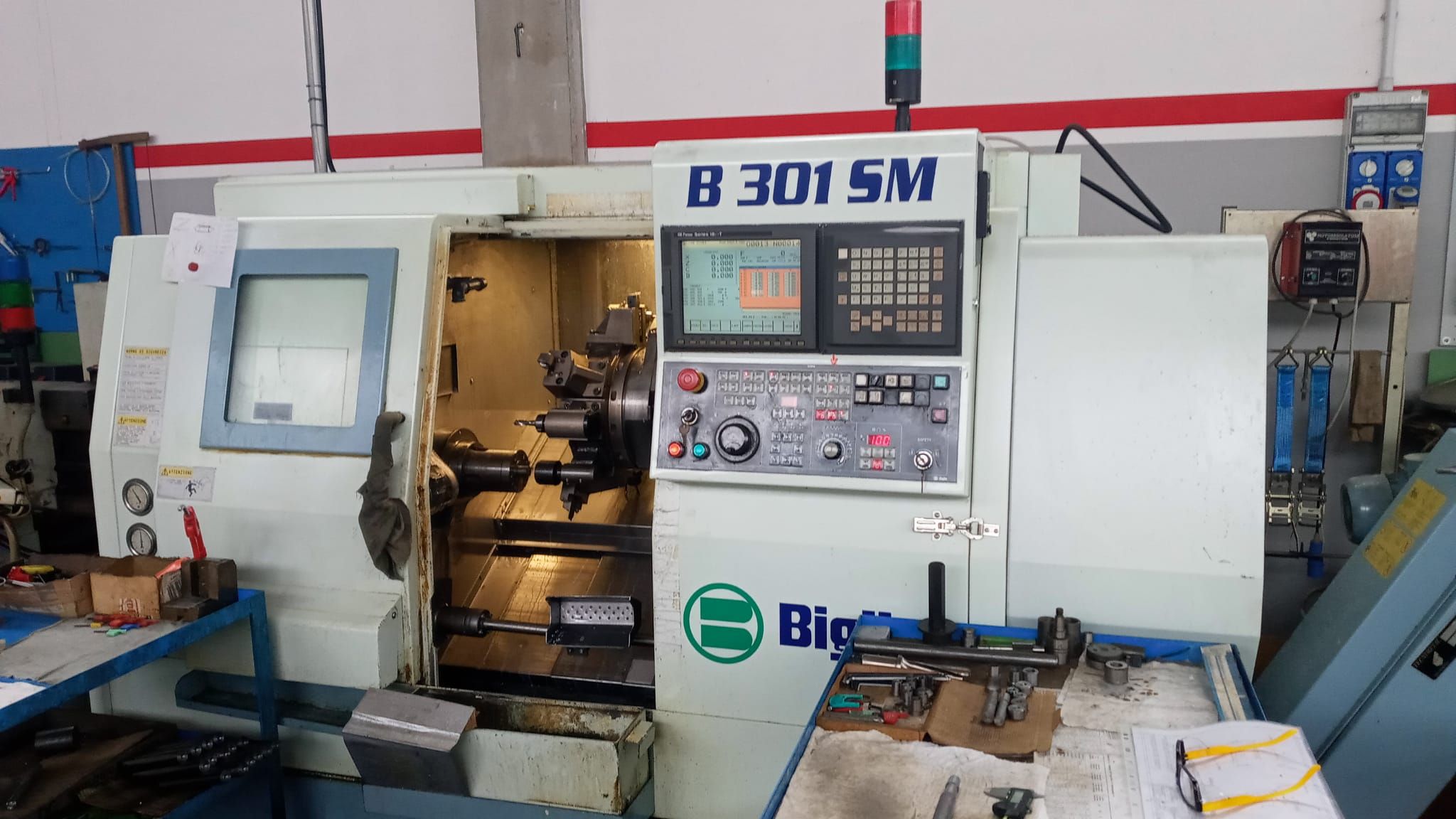

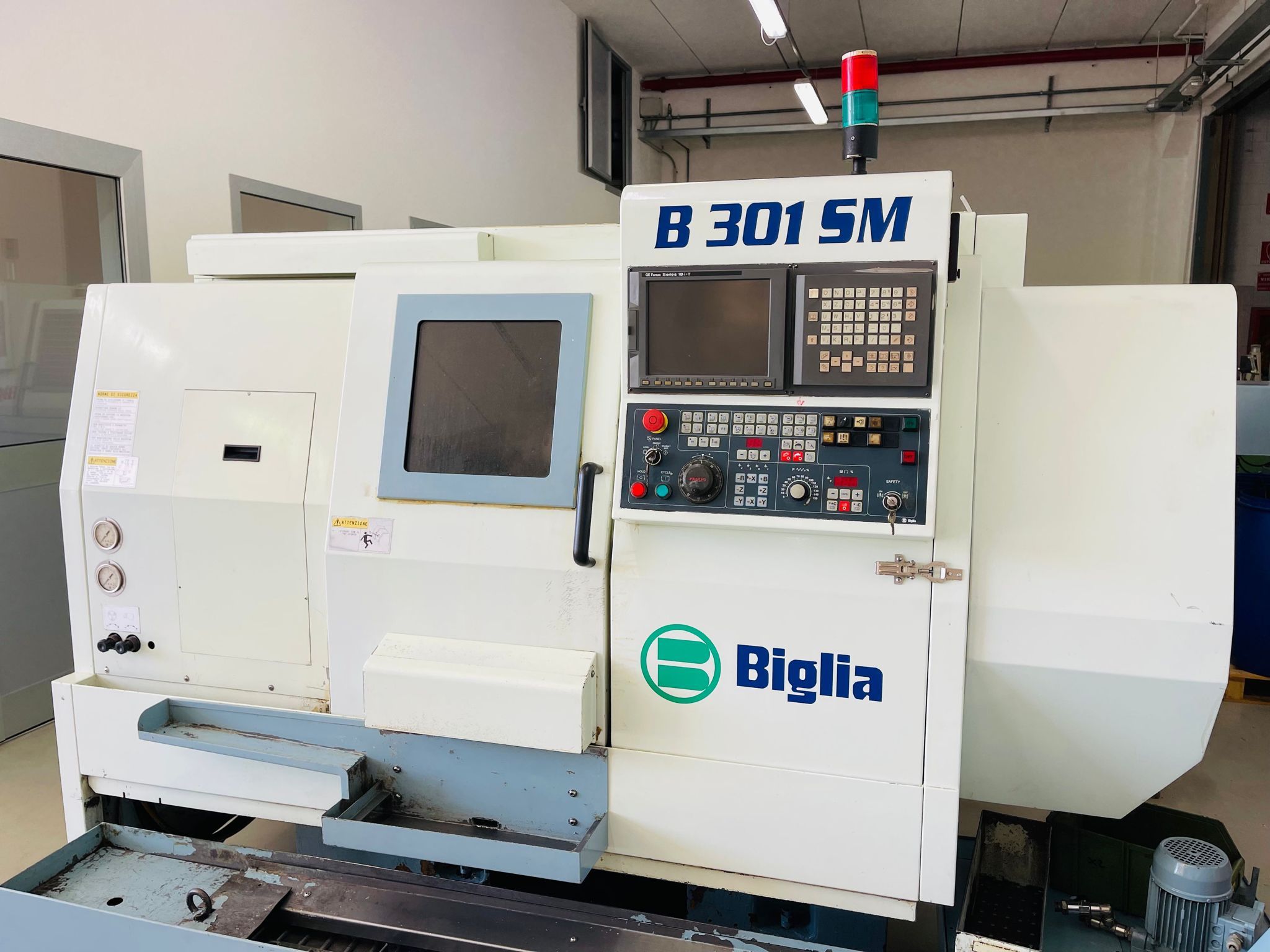

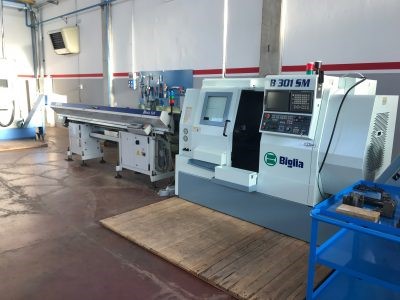

BIGLIA
B301SM
Sold
Type: Cnc lathe With subspindle
Brand: BIGLIA
Model: B301SM
Year: 2000

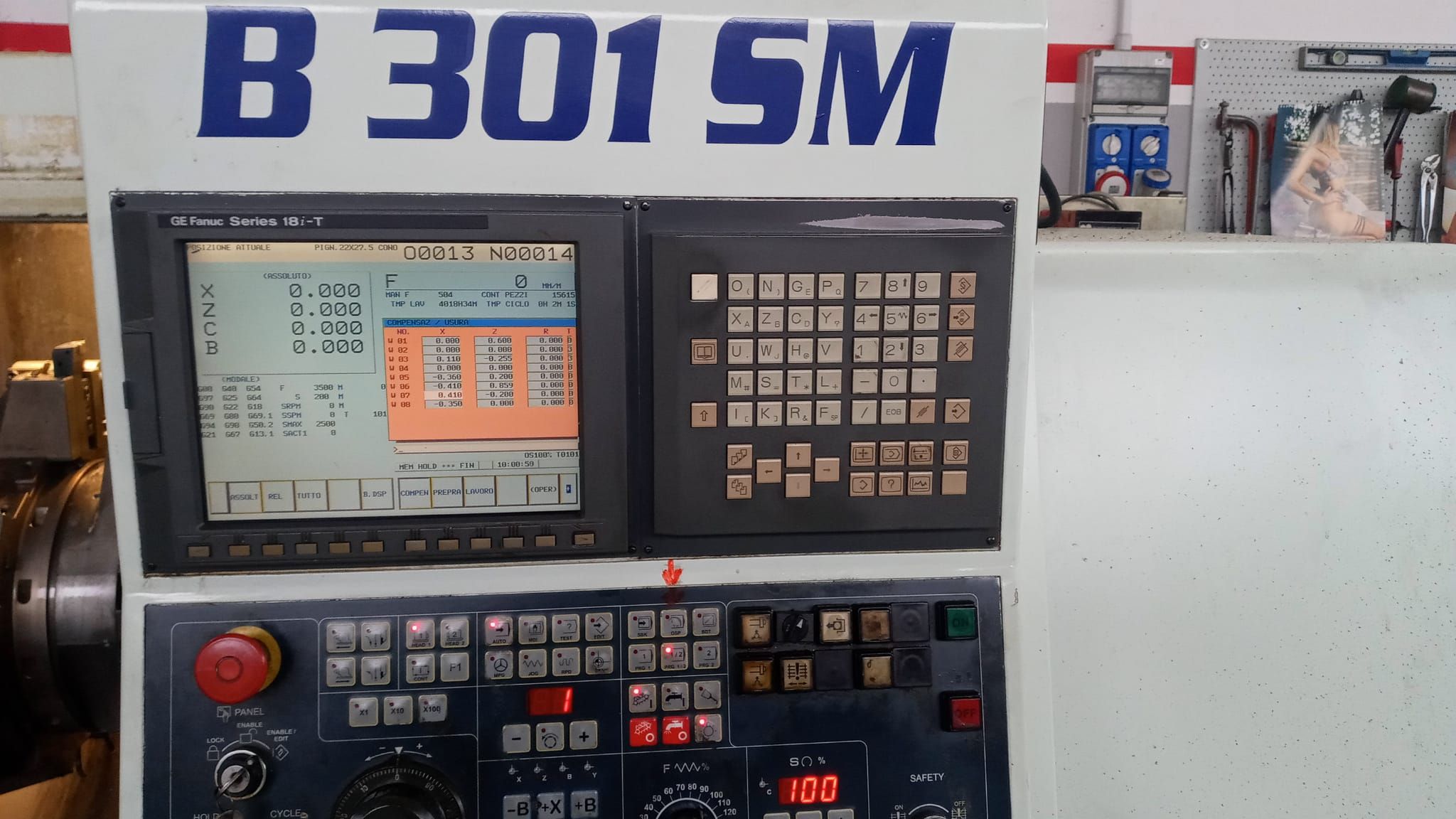

C.N.C: FANUC 18iT
Serial number: 6637
Watch the video
Technical information
Specifications

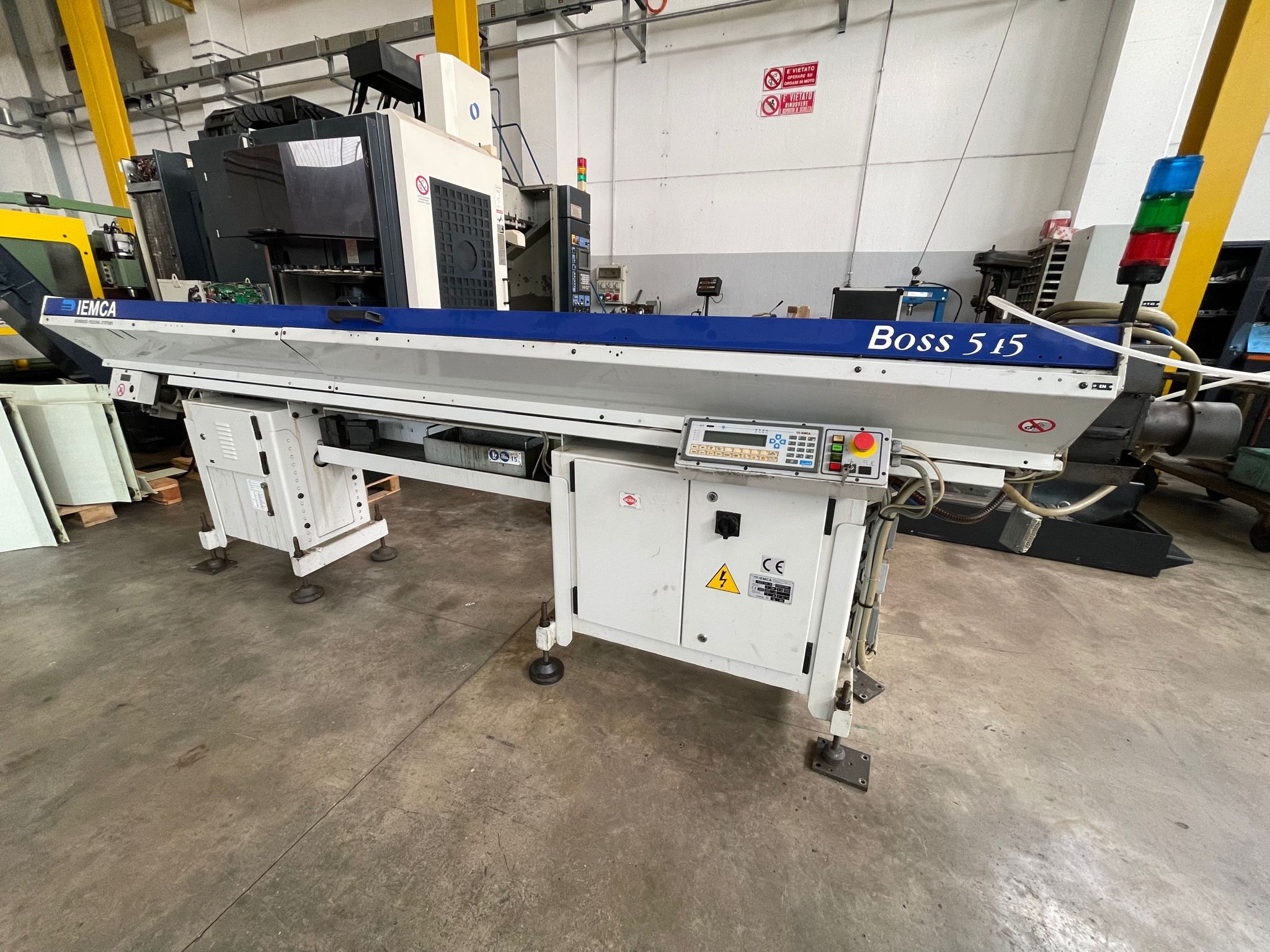

Macchina completa di caricatore di barre IEMCA BOSS 545 anno 2000
SBS MONITORAGGIO SFORZO UTENSILE, EVACUATORE TRUCIOLI E PORTAUTENSILI IN DOTAZIONE
Nr. 2 Porta pinze Bellegrandi, nr. 30 Pinze monocono, nr.5 pinze doppio cono, nr. 5 portautensili motorizzati
Capacity
- Turning Ø: 220 mm
- Turning length: 380 mm
- Rotation diameter: 400 mm
1st Spindle
- Spindle nose: 5 ASA
- Bar capacity: 42 mm
- Spindle speed: 5000 rpm
- Motor power: 15 Kw
- C axis: 0,001 degrees
2nd Spindle
- Spindle nose: 5 ASA
- Bar capacity: 42 mm
- Spindle speed: 5000 rpm
- Motor power: 5,5 Kw

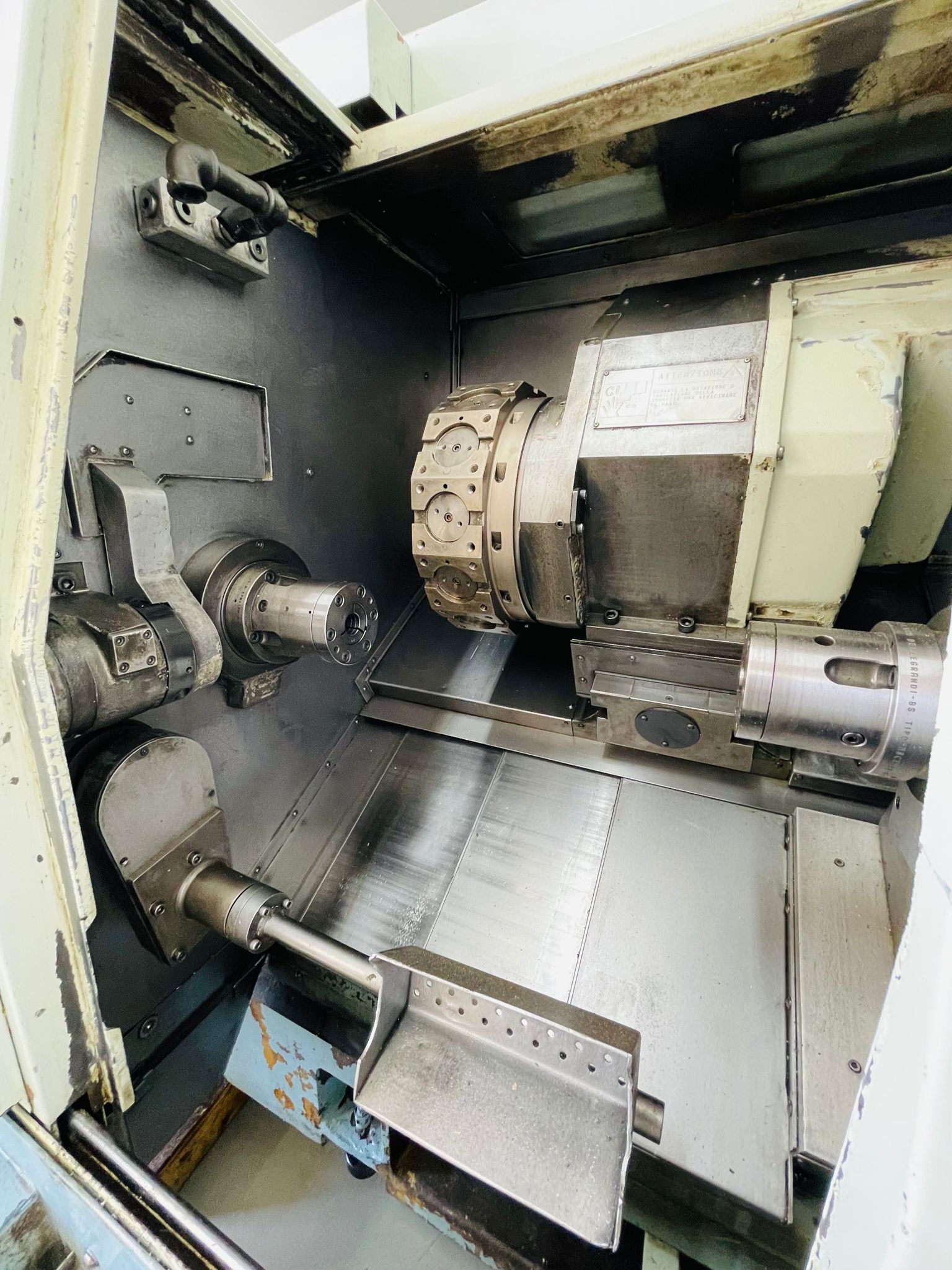

1st Turret
- Tool Stations: 12
- Power turret: 12
Turning Ø mm. : 220
Length. turnable mm. : 380
RPM. :
Power kw. : 15
Capac.bar Ø : 42
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle : 5000
