BIGLIA
B42 S2M

Type: Cnc lathe 2 spindles / 2 turrets

Brand: BIGLIA

Model: B42 S2M

Year: 1996

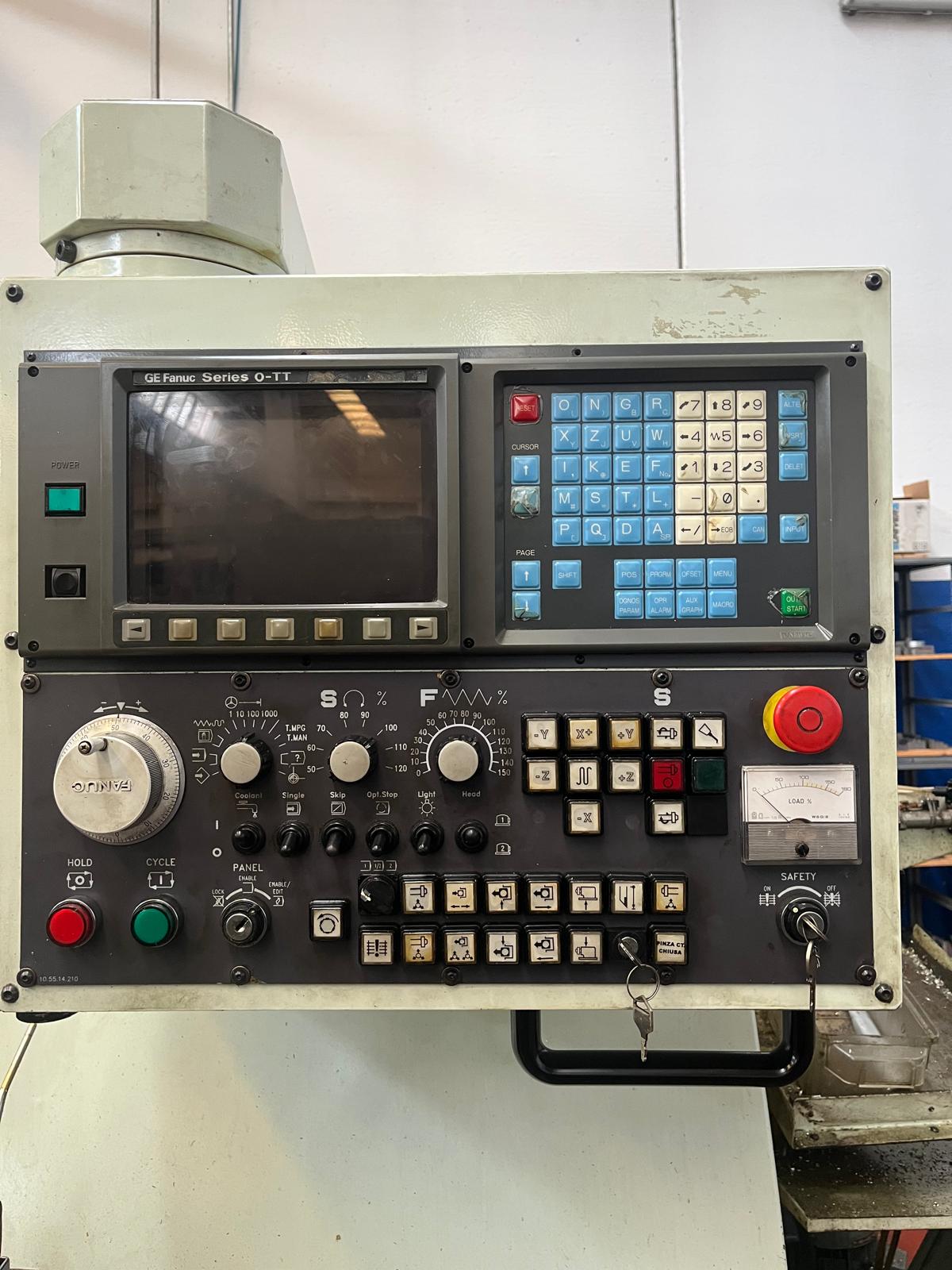

C.N.C: FANUC 0ITC

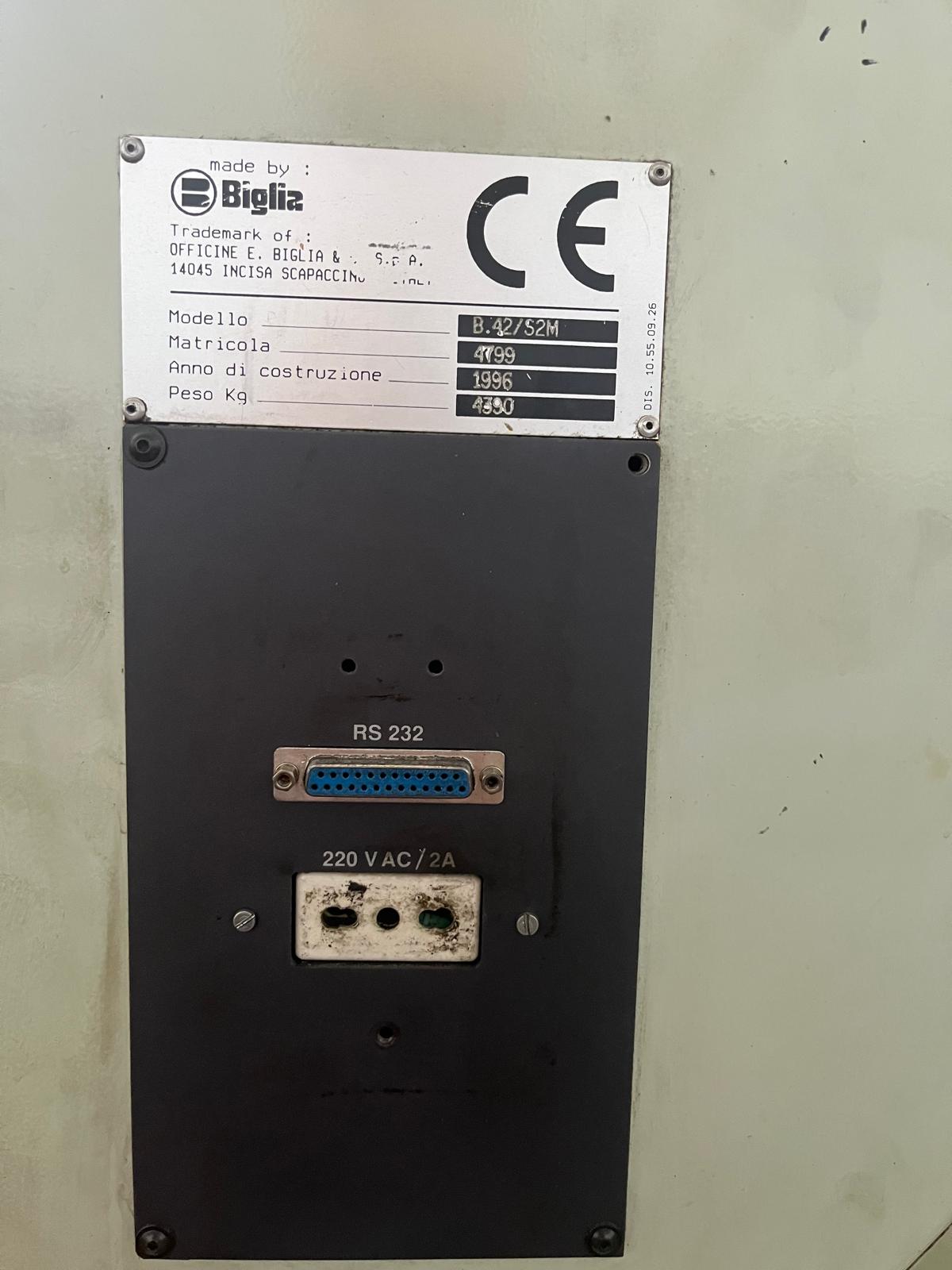

Serial number: 4799

Request a quote

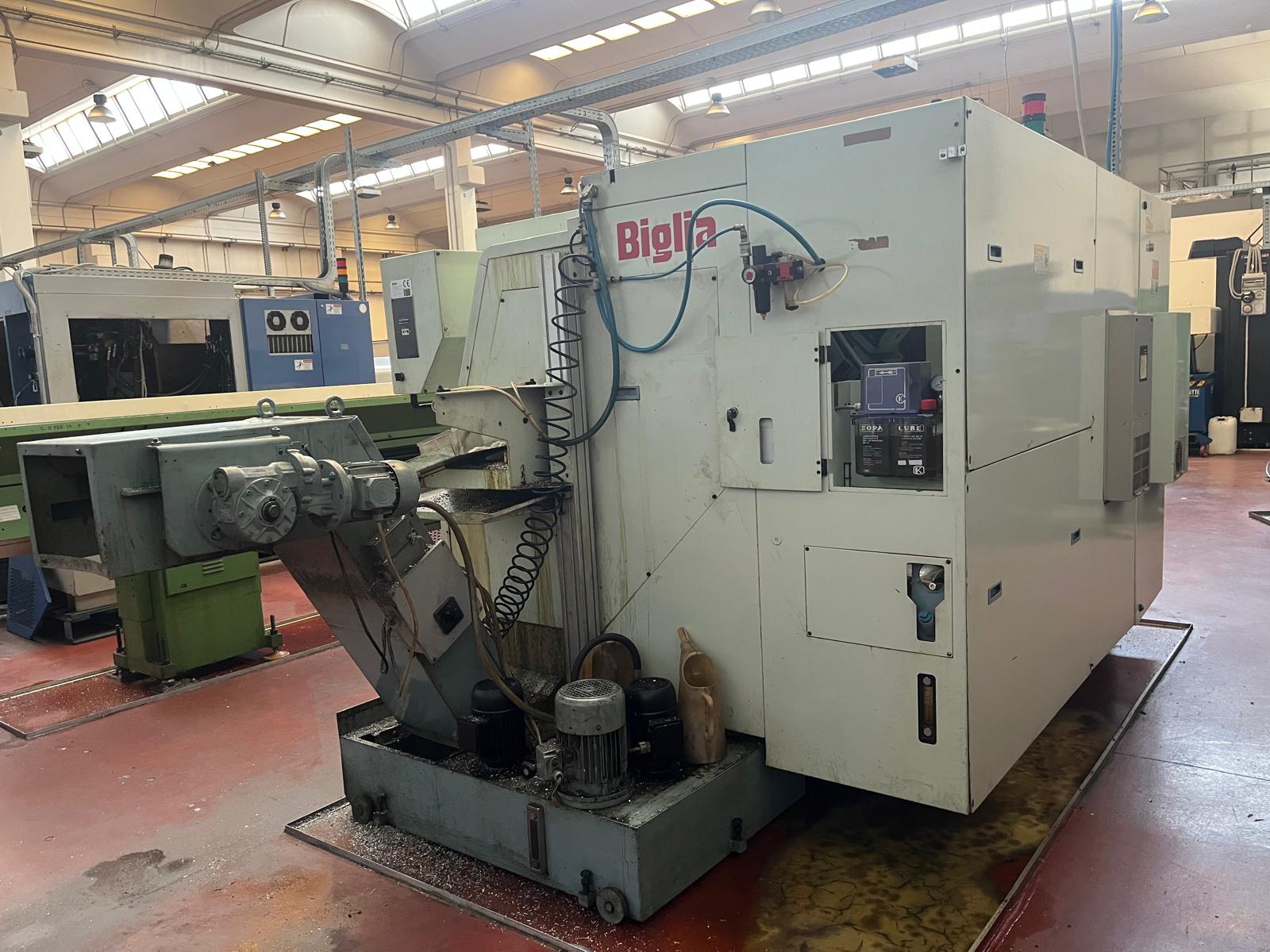

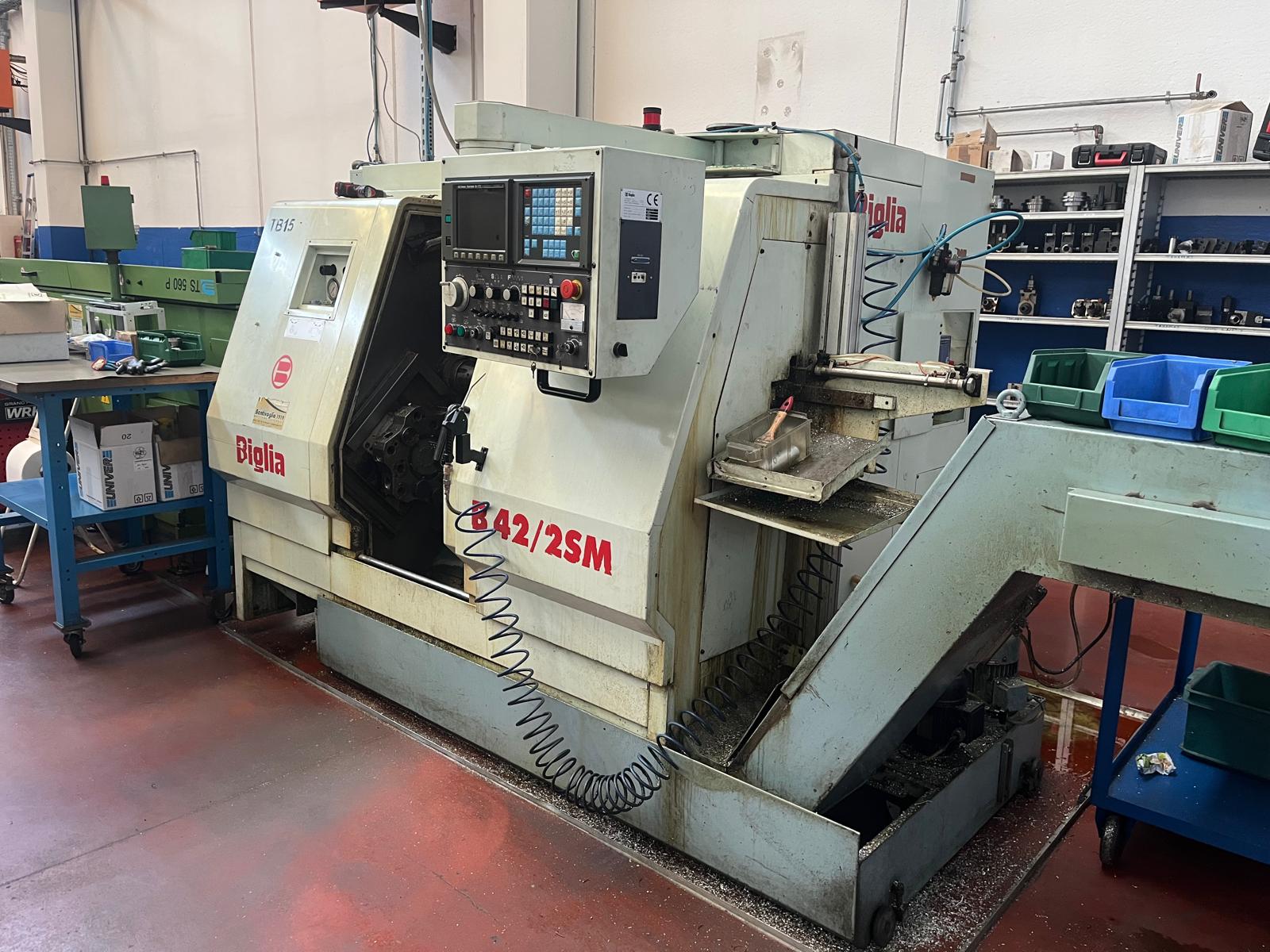

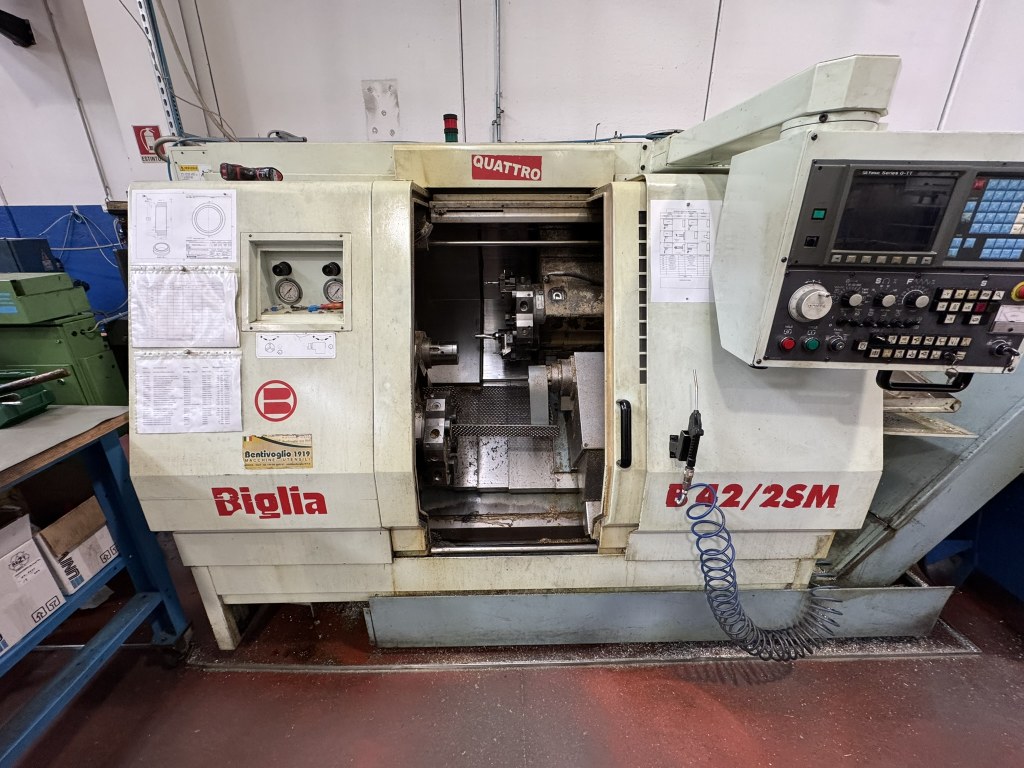

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Cnc lathe BIGLIA B42 S2M

Technical information

Capacity

Turning Ø: 160 mm
Turning length: 300 mm

1st Spindle

Spindle nose: 5 ASA
Bar capacity: 41 mm
Spindle speed: 5000 rpm
Motor power: 11-15 Kw

2nd Spindle

Spindle nose: 4 ASA
Bar capacity: 25 mm
Spindle speed: 5000 rpm
Motor power: 7,5 Kw

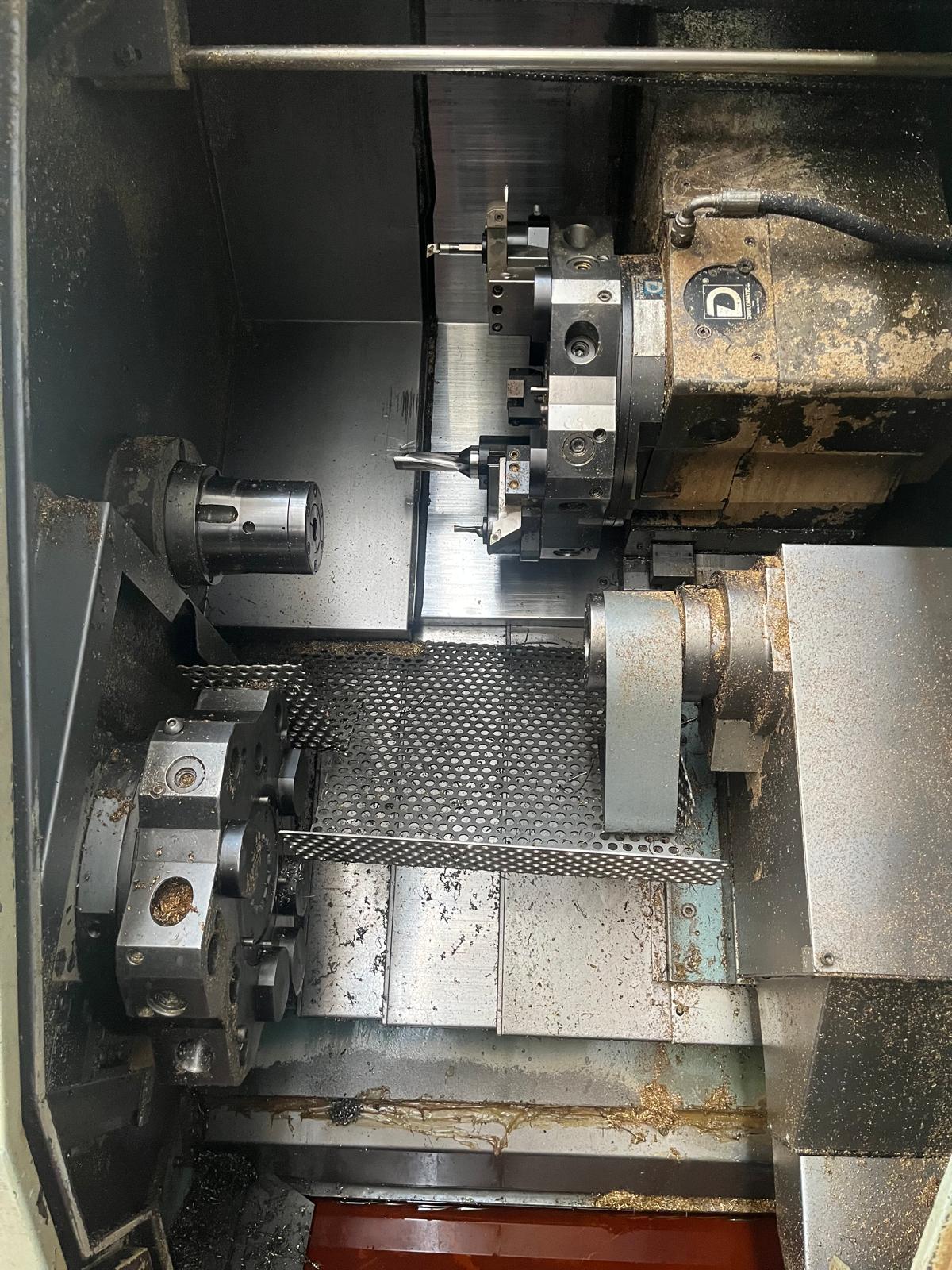

1st Turret

Motorized turret: 12

II Turret

Motorized turret: 12

Specific properties

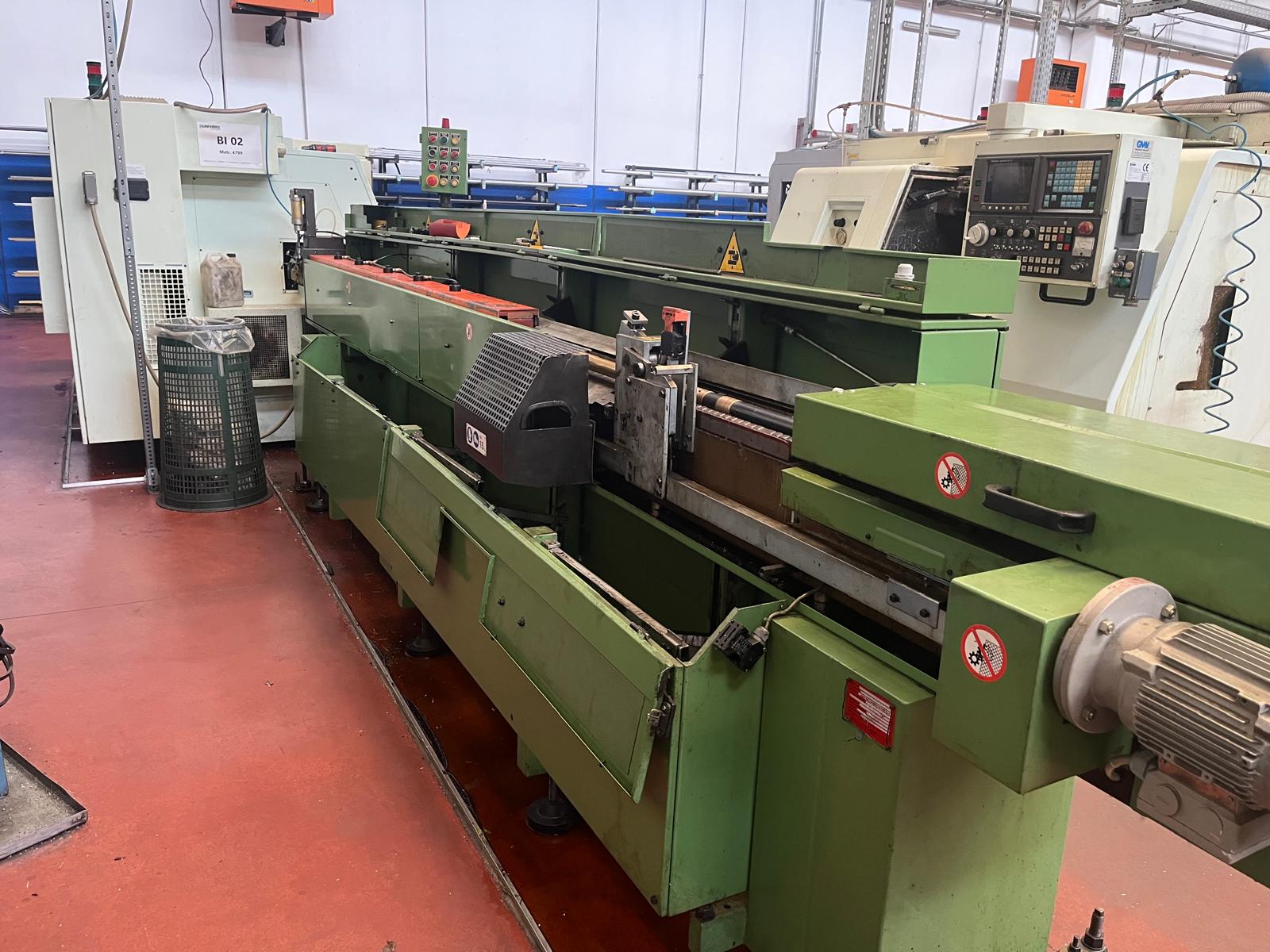

With bar loader IEMCA TAL AUTO 65. Chip conveyor, piece discharger, hand wheel.

Turning Ø mm. : 160

Length. turnable mm. : 300

RPM. :

Power kw. :

Capac.bar Ø :

Diameter Rotation :

Distance between centers :

Spindle speed I and II spindle : 5000
