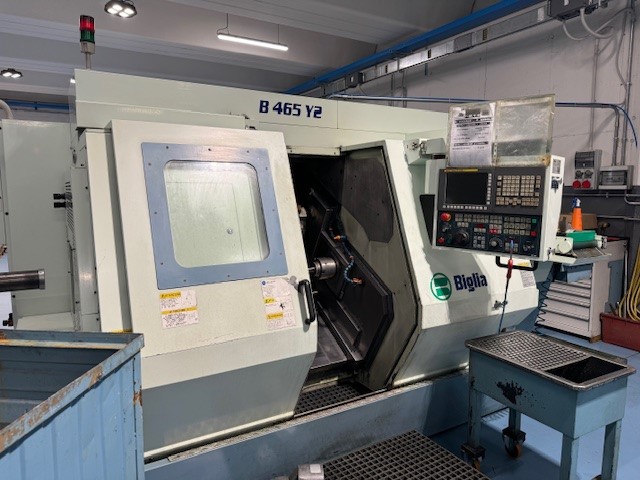

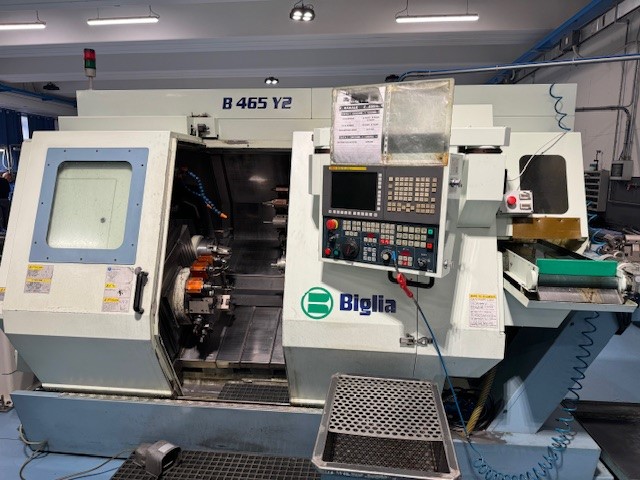

BIGLIA
B465Y2
Type: Cnc lathe 2 spindles / 2 turrets
Brand: BIGLIA
Model: B465Y2
Year: 2010

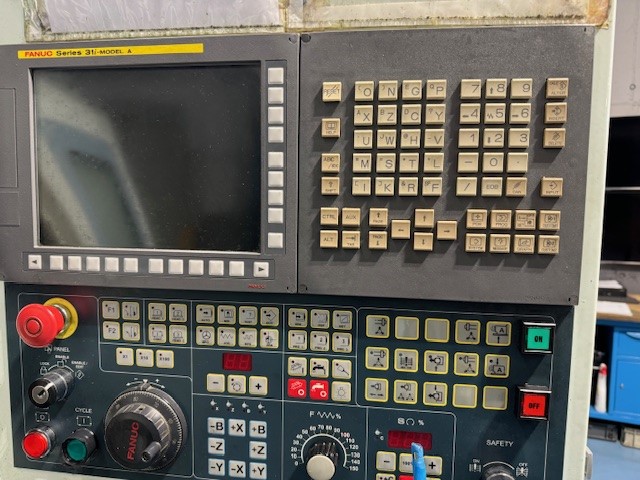

C.N.C: FANUC 31iT
Technical information
Capacity
- Turning Ø: 200 mm
- Rotation diameter: 65 mm
1st Spindle
- Spindle nose: 6 ASA
- Bar capacity: 67 mm
- Spindle speed: 4000 rpm
- Motor power: 22-26 Kw
- C axis: 0,001 degrees
2nd Spindle
- Spindle nose: 5 ASA
- Bar capacity: 45 mm
- Spindle speed: 5000 rpm
- Motor power: 7.5-11 Kw
- C axis: 0,001 degrees

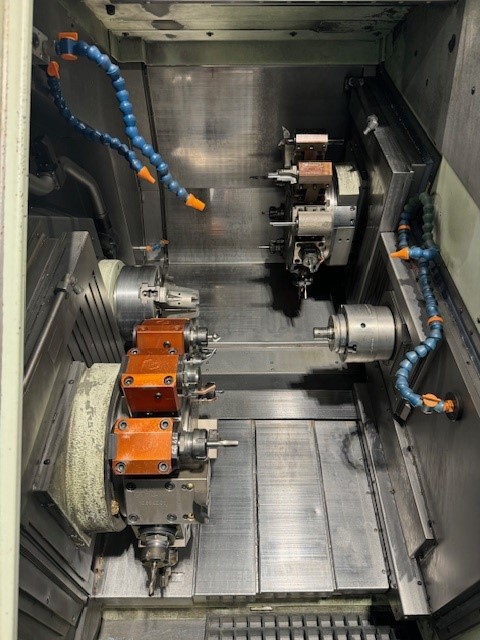

1st Turret
- Tool Stations: 12
II Turret
- Tool Stations: 12
Turning Ø mm. : 200
Length. turnable mm. :
RPM. : 4000
Power kw. : 22-26
Capac.bar Ø : 67
Diameter Rotation : 65
Distance between centers :
Spindle speed I and II spindle :
