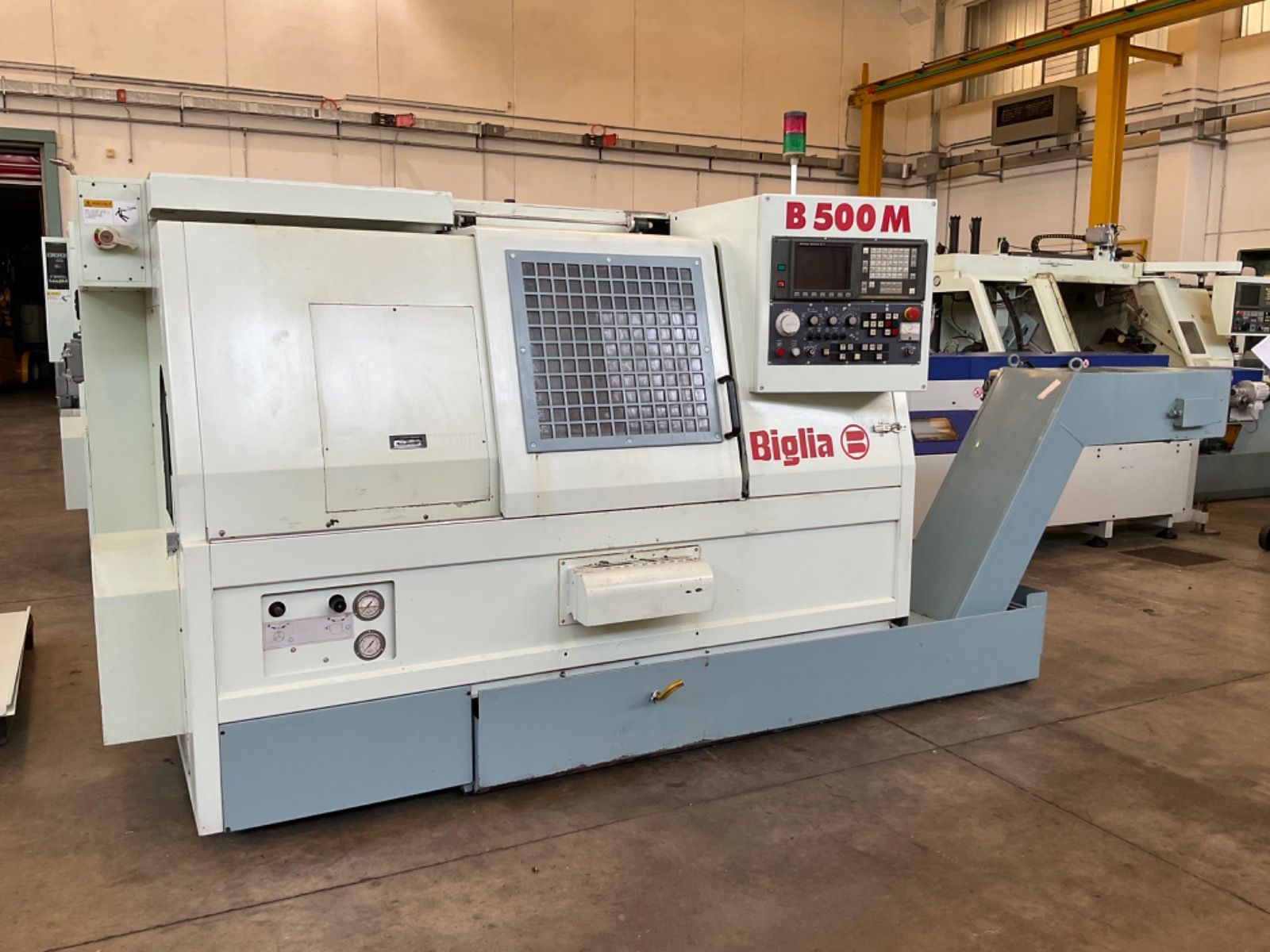

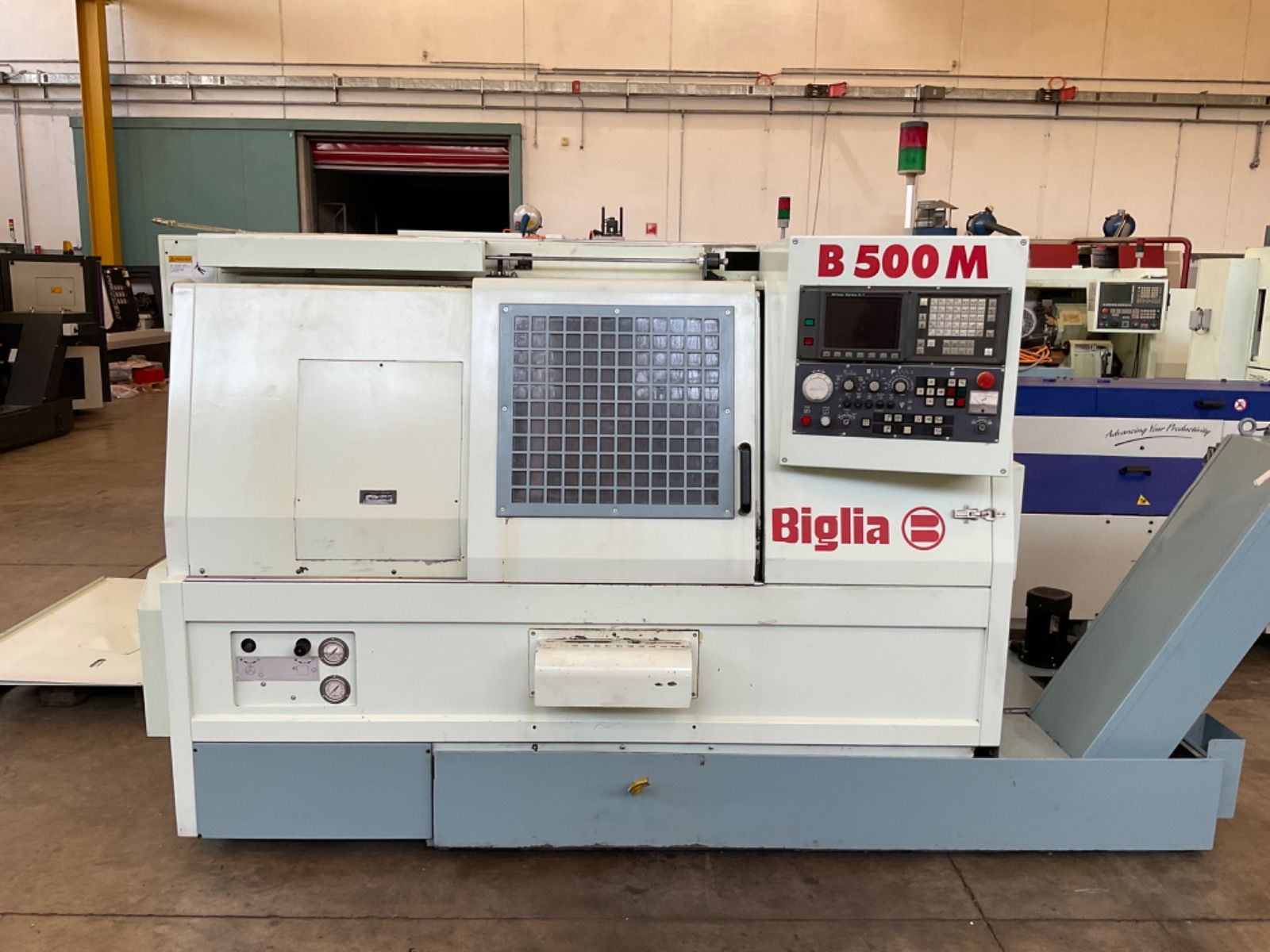

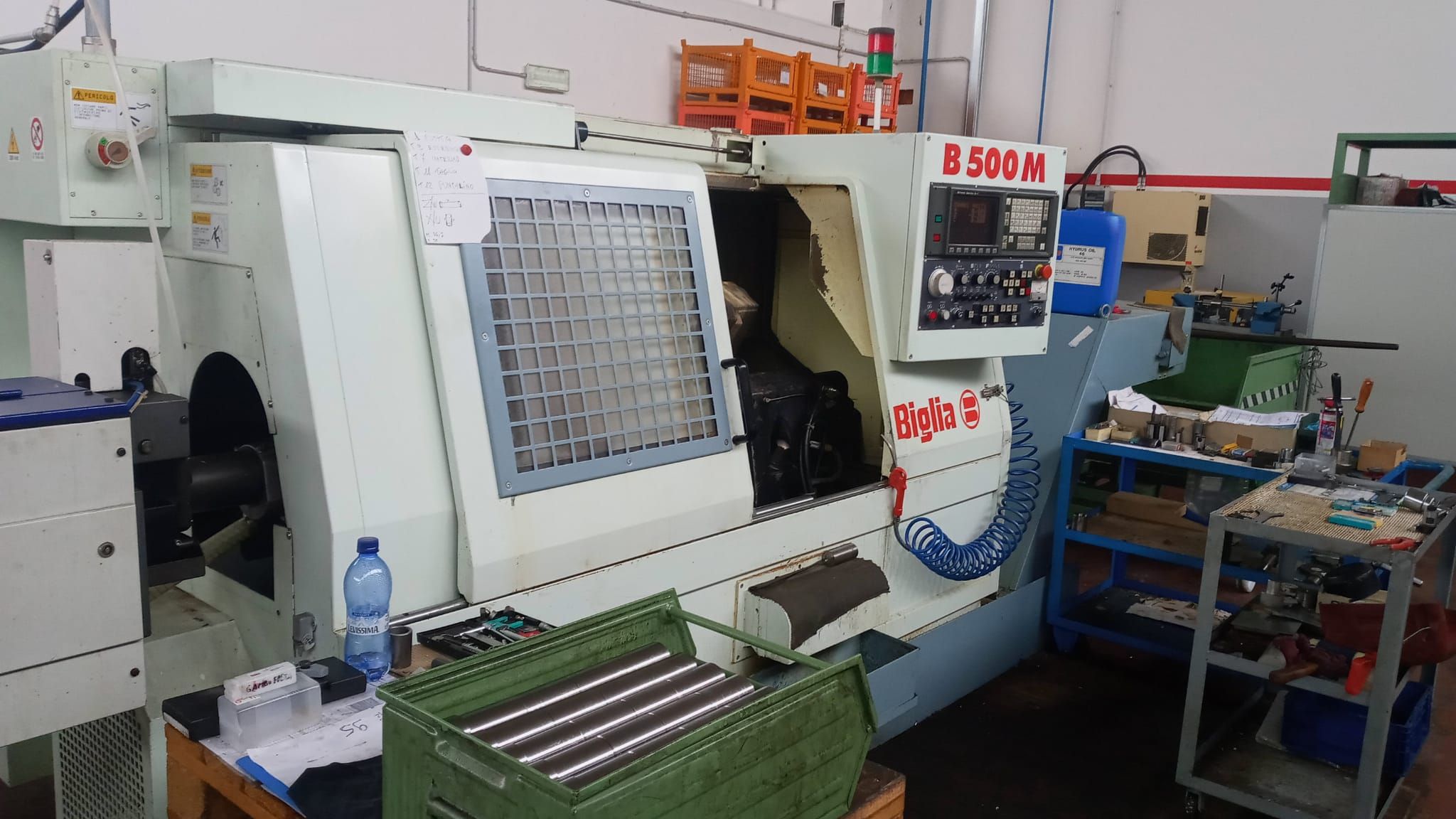

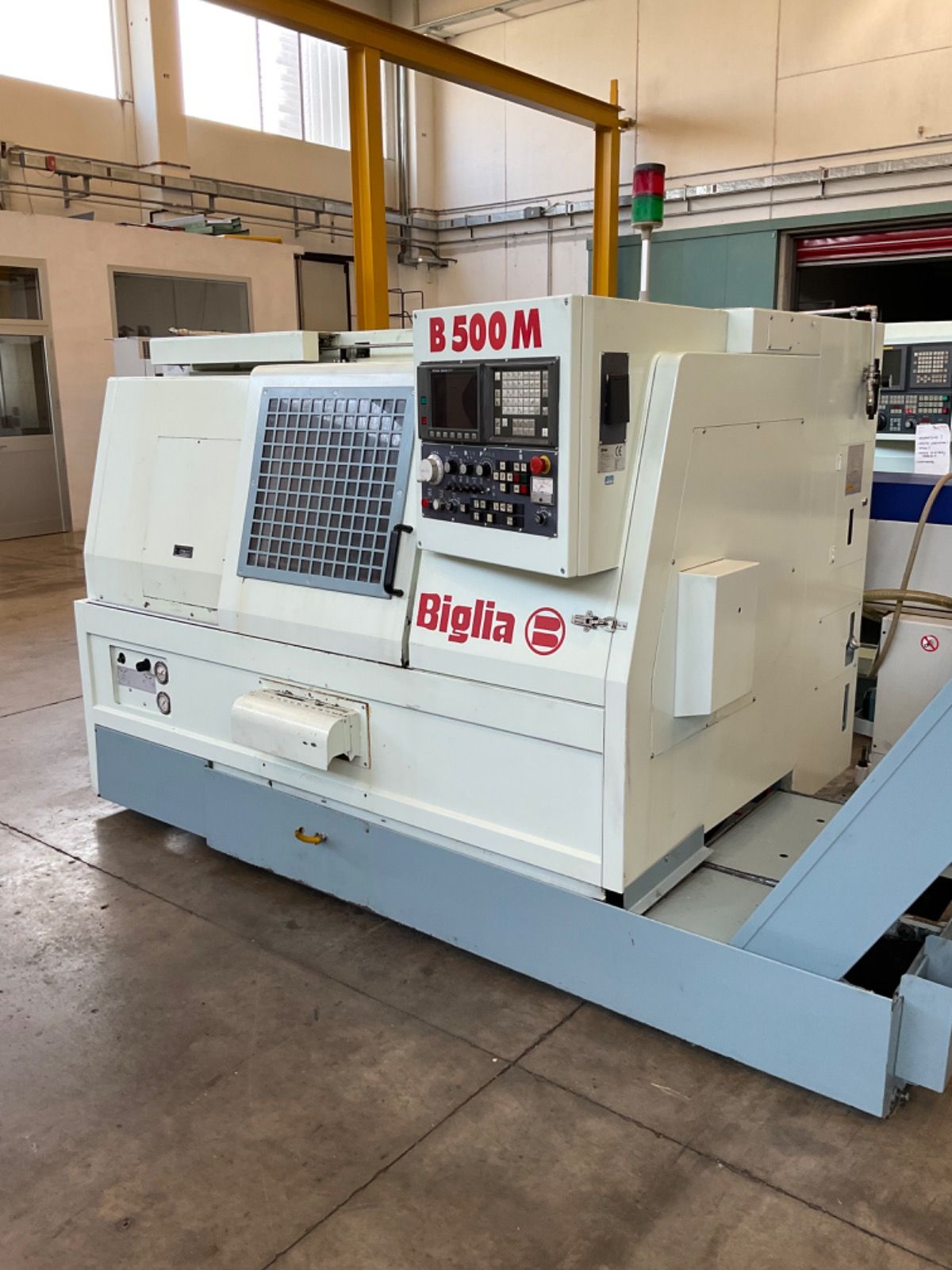

BIGLIA
B500 M
Sold
Type: Cnc lathe With tailstock
Brand: BIGLIA
Model: B500 M
Year: 1995

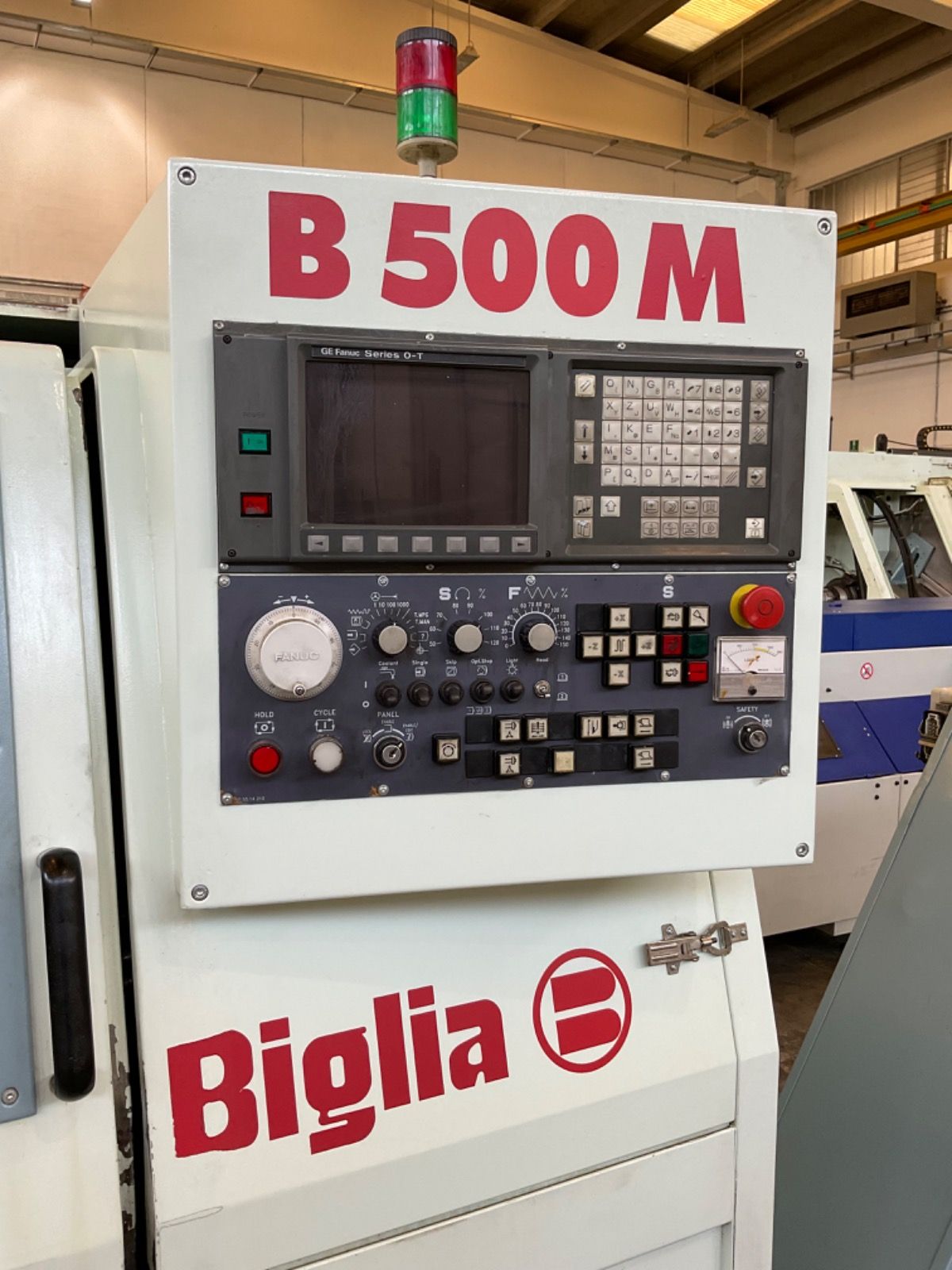

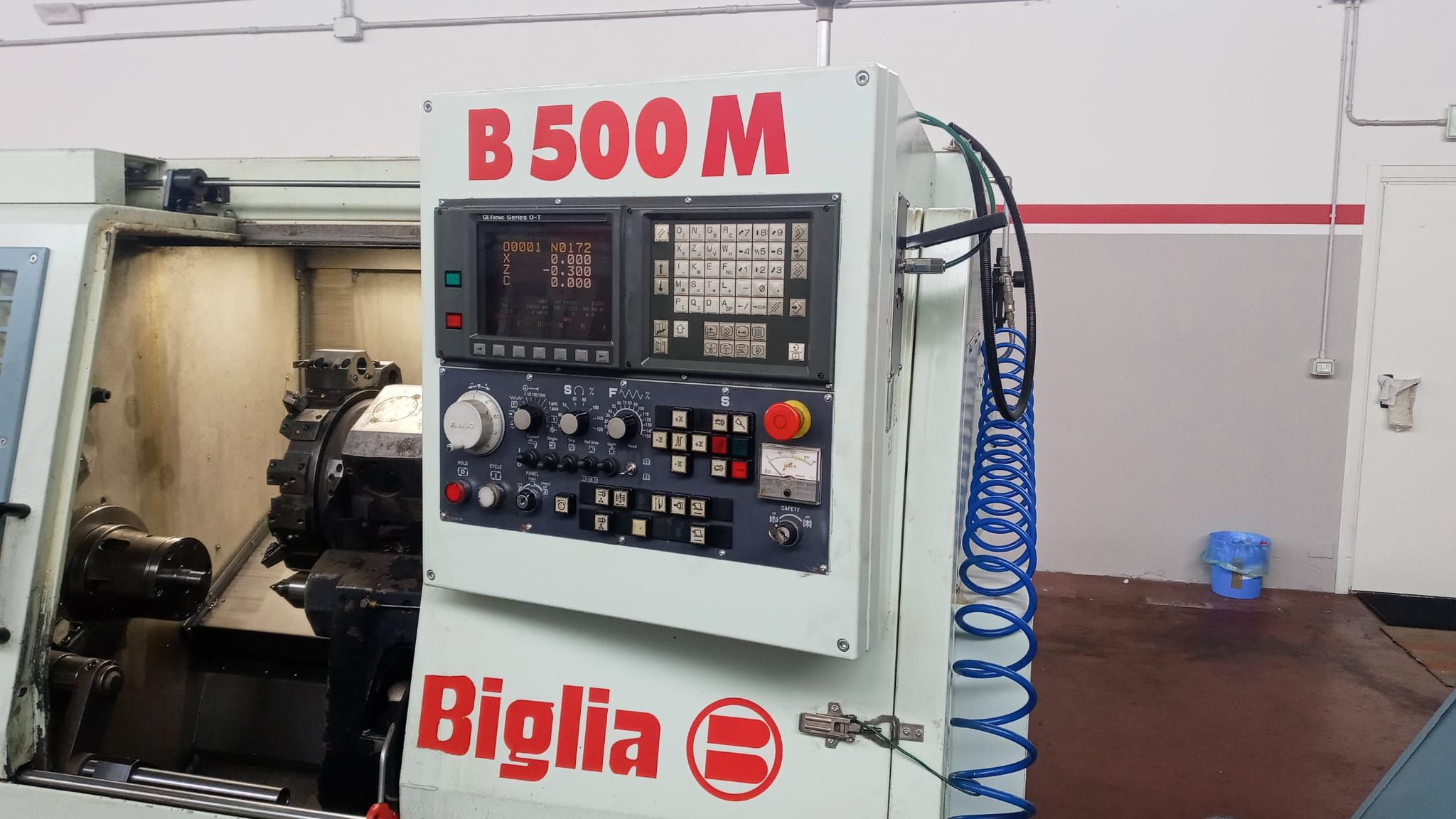

C.N.C: FANUC 0T
Serial number: 4363
Technical information
Specifications
Chip conveyor, Kit for bar working (Harting socket 24 pin + part catcher) Electronic probe for reset of tools, with 7 driven tools, no. 1 Automatic 3 jaws Chuck SMW Autoblock 250, no. 1 Bellegrandi collet chuck, no.35 collets.

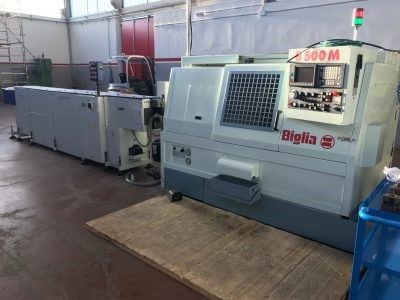

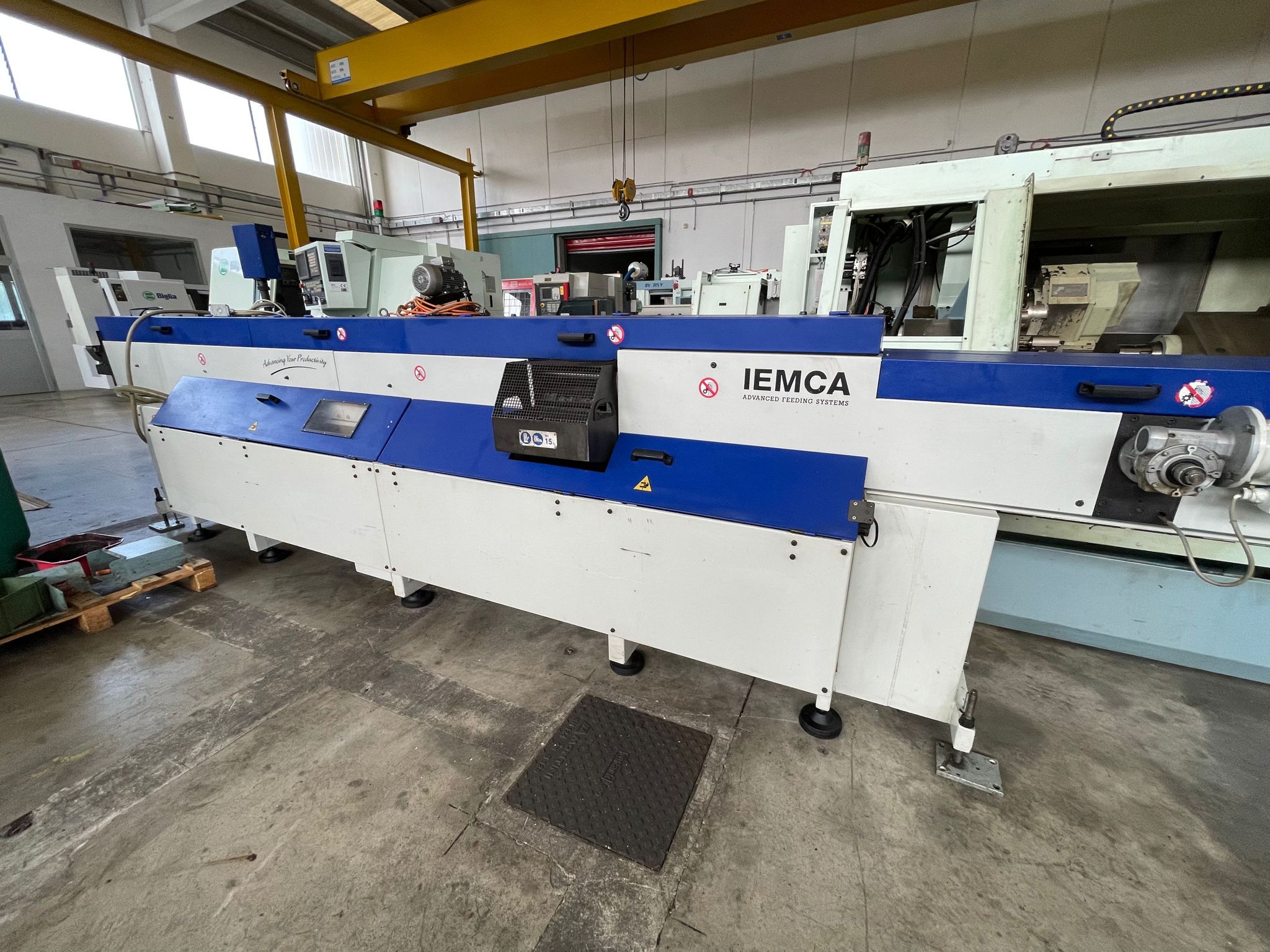

With one bar loader IEMCA TS-560P s/n. 0200050C01
Capacity
- Turning Ø: 250 mm
- Turning length: 500 mm
- Rotation diameter: 520 mm
1st Spindle
- Spindle nose: 6 ASA
- Bar capacity: 54 mm
- Spindle speed: 40-4000 rpm
- Motor power: 11-26 Kw
- C axis: 0,001 degrees

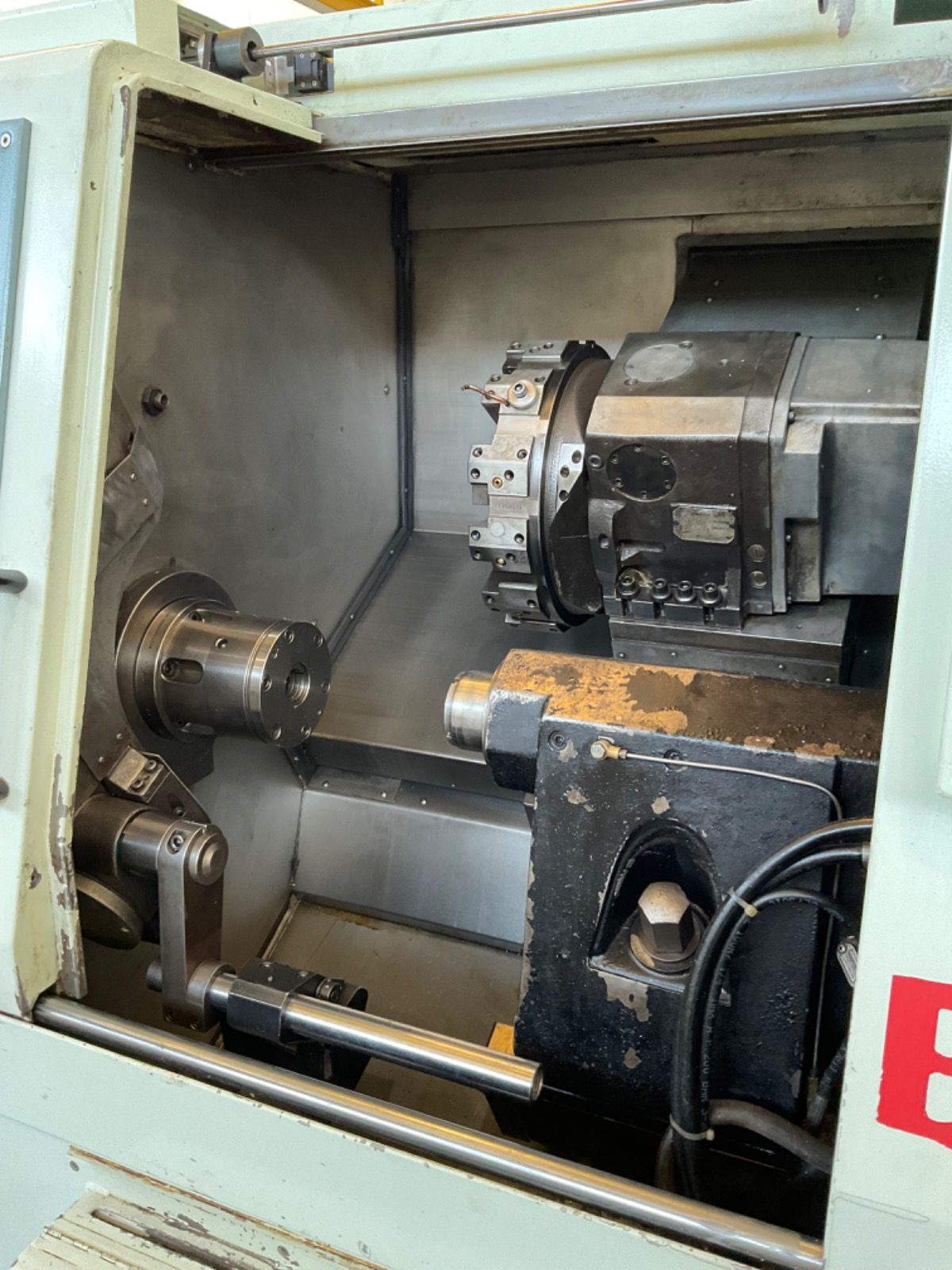

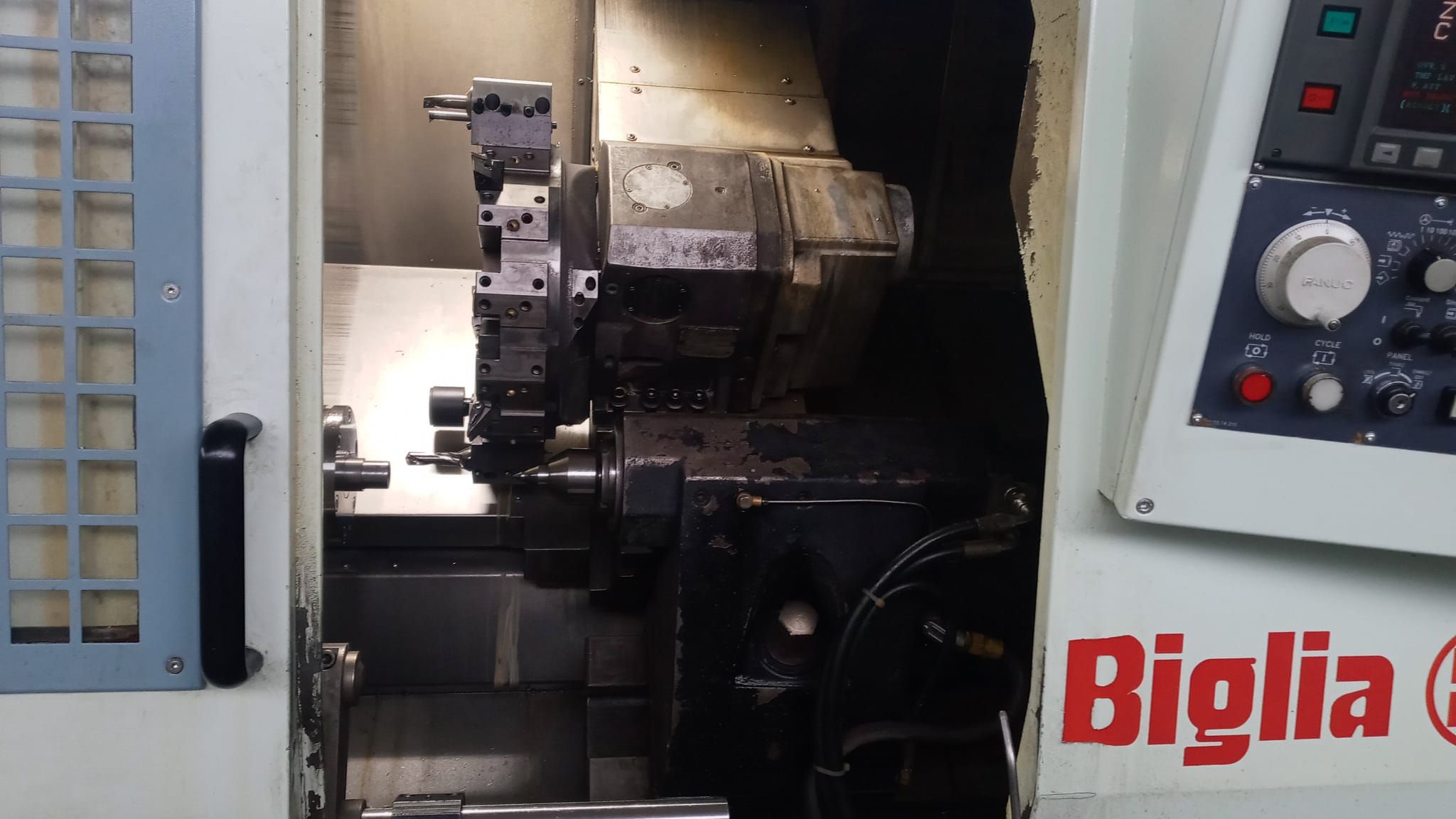

1st Turret
- Tool Stations: 12
- Power turret: 6
Tailstock
- Cone: 4 CM
Turning Ø mm. : 250
Length. turnable mm. : 500
RPM. : 4000
Power kw. :
Capac.bar Ø :
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle :
