Home Used Horizontal machining center WELE HMC 500

WELE
HMC 500

Type: Horizontal machining center Pallet changer

Brand: WELE

Model: HMC 500

Year: 2020

C.N.C: Fanuc OiMF

Serial number: 2007

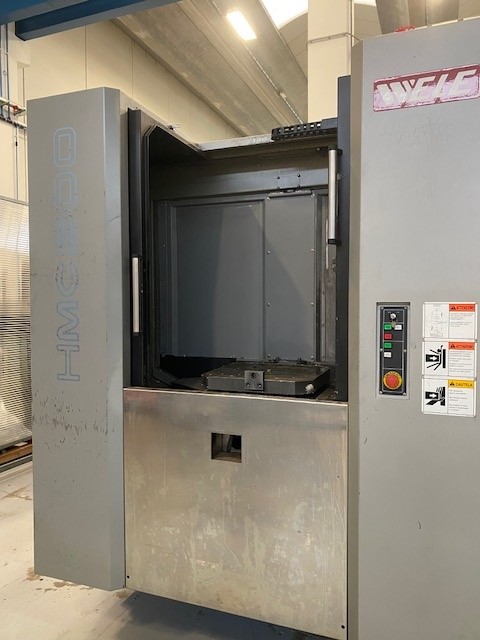

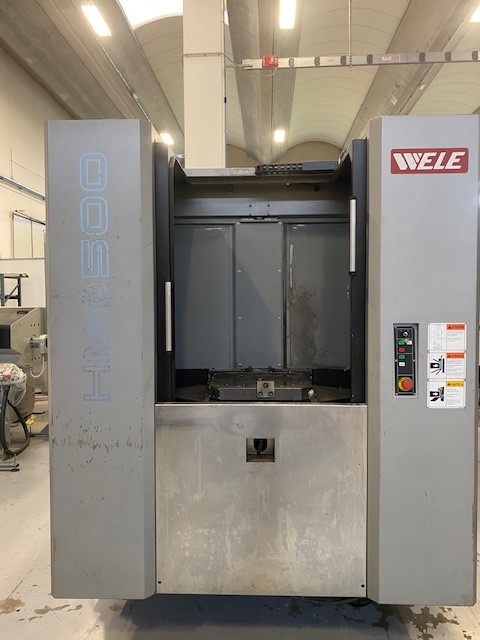

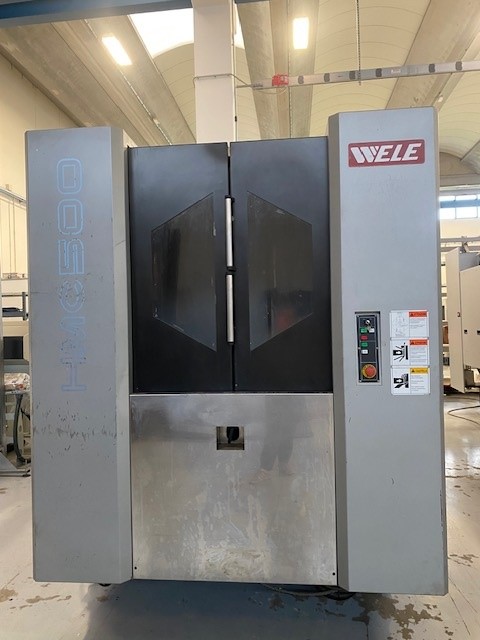

Horizontal machining center WELE HMC 500
Horizontal machining center WELE HMC 500
Horizontal machining center WELE HMC 500
Horizontal machining center WELE HMC 500
Horizontal machining center WELE HMC 500
Horizontal machining center WELE HMC 500

Technical information

Specifications

BLUM laser tool presetting system for tool length, radius, presence, and wear detection. The transmitter and receiver are separate units mounted on dedicated supports. Fagor optical scales.

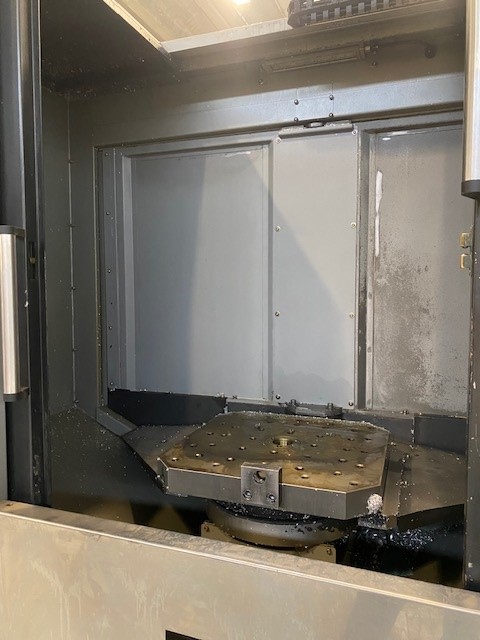

Table

  • Pallet dimensions: 500x500 mm
  • No. pallets: 2 nr.
  • Table rotation: 0,001 gradi

Turning capacity

  • Longitudinal X-travel: 640 mm
  • Vertical y-travel: 610 mm
  • Cross z-travel: 680 mm
  • Rapid feedrates: 20/60 mt./min.

Spindle

  • Spindle nose: BBT40 ISO
  • Spindle speed: 40-15.000 giri/min.
  • Motor power: 18.5/22 Kw

Tool magazine

  • Tools holder: 60 nr.

Pallet mm. : 500x500

X,Y,Z travels mm. : 640x610x680

Rpm : 40-15.000

Motor power Kw : 18.5/22

ISO : 40

Tools : 60
