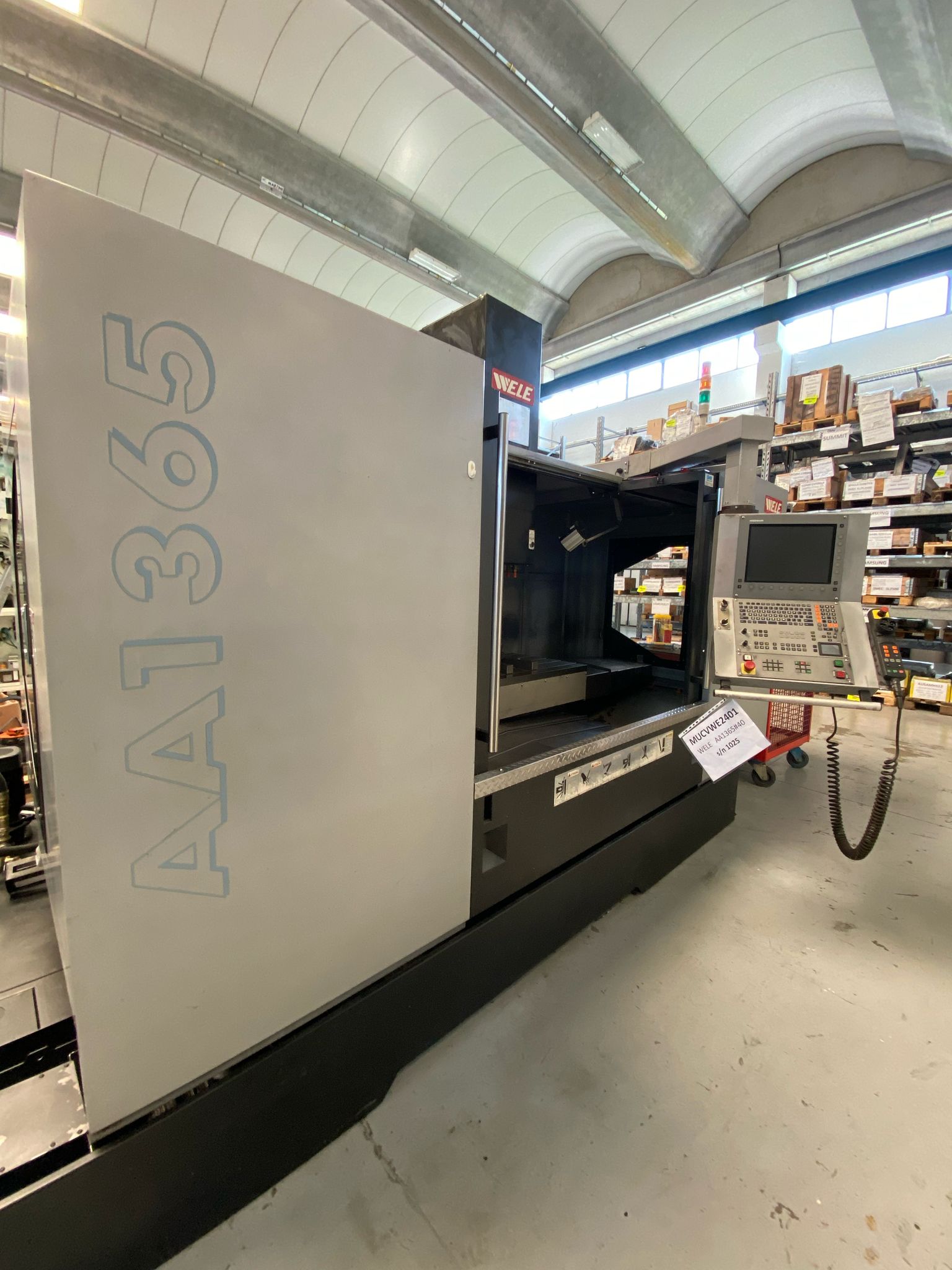

WELE
AA1365#40
Type: Vertical machining center Vertical
Brand: WELE
Model: AA1365#40
Year: 2010
C.N.C: Heidenhain iTNC 530
Serial number: 1025
Technical information
Specifications
With high pressure 20 bar + tank lt 550, with twin internal and side chip auger, chip conveyor. Installation date 2011
Table
- Table dimensions: 1450x650 mm
- Max table load: 1300 kg
Turning capacity
- Longitudinal X-travel: 1300 mm
- Cross Y-travel: 650 mm
- Vertical Z-travel: 600 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 12000 giri/min.
- Motor power: 15-18 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 30.000/30.000/24.000 mm/min
Tool magazine
- Tools holder: 24 nr.
Table mm. : 1450x650
X,Y,Z travels mm. : 1300x650x650
Rpm : 12000
Motor power Kw : 15-18
ISO : 40
Tools : 24
