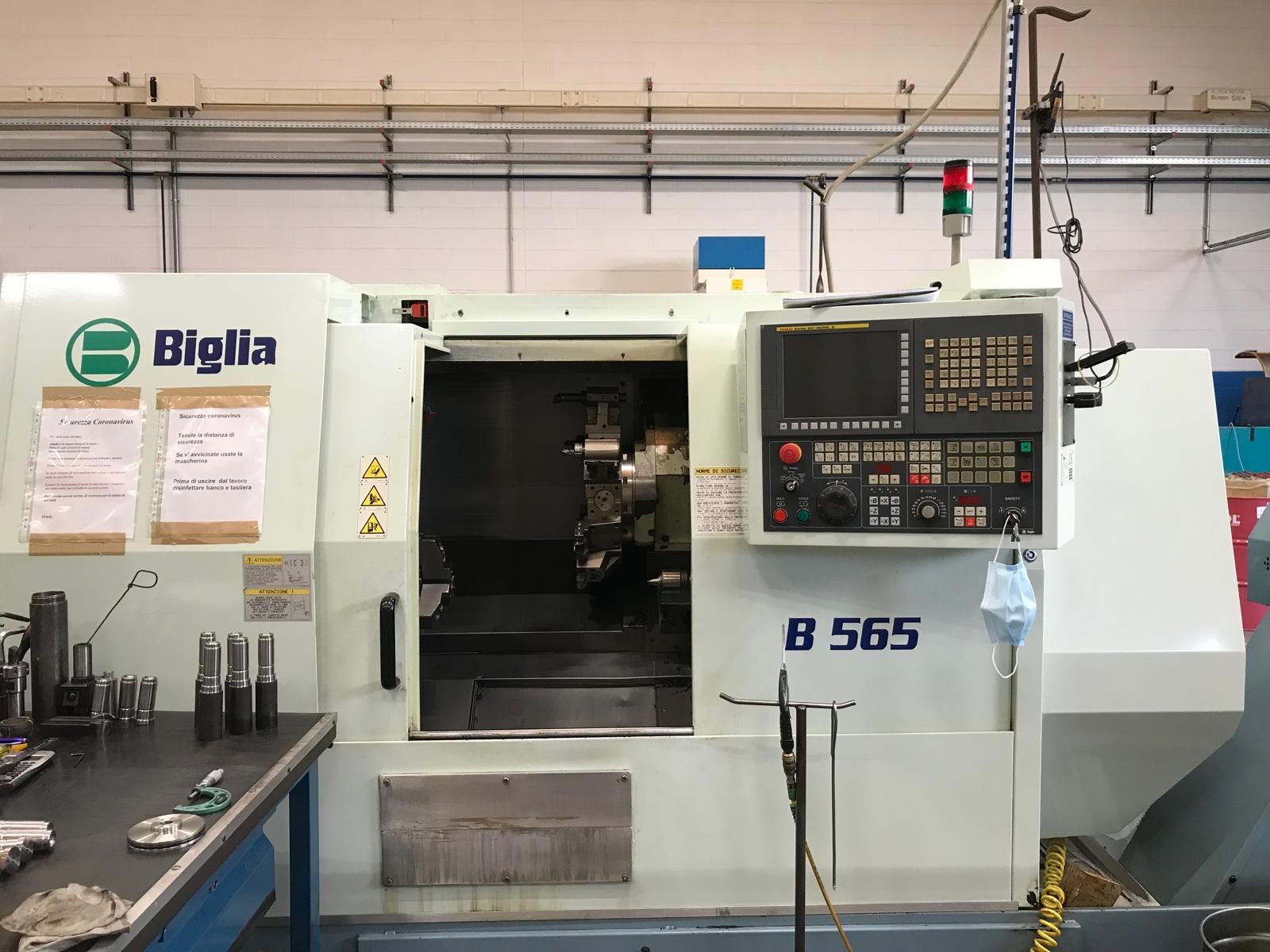

BIGLIA
B 565/B
Type: Cnc lathe With tailstock
Brand: BIGLIA
Model: B 565/B
Year: 2011

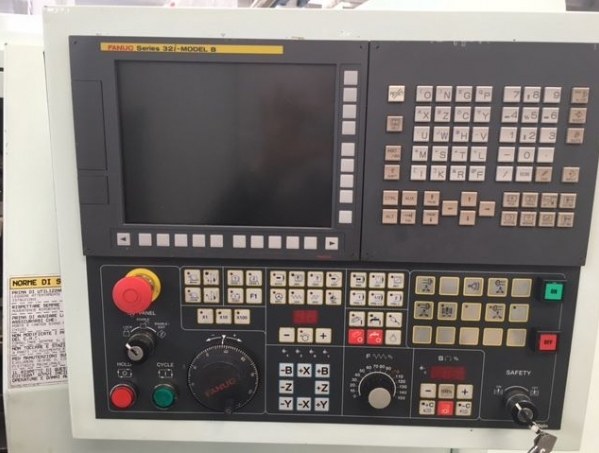

C.N.C: FANUC 32iB
Technical information
Capacity
- Turning Ø: 290 mm
- Turning length: 560 mm
- Rotation diameter: 580 mm
1st Spindle
- Spindle nose: 6 ASA
- Bar capacity: 65 mm
- Spindle speed: 4000 rpm
- Motor power: 22-26 Kw
- C axis: 0,001 degrees
1st Turret
- Tool Stations: 12
Tailstock
- Cone: 5 CM
Turning Ø mm. : 290
Length. turnable mm. : 560
RPM. : 4000
Power kw. : 22/26
Capac.bar Ø : 65
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle :
