NIKKEI
VH 850
Sold
Type: Vertical machining center Vertical
Brand: NIKKEI
Model: VH 850
Year: 2010

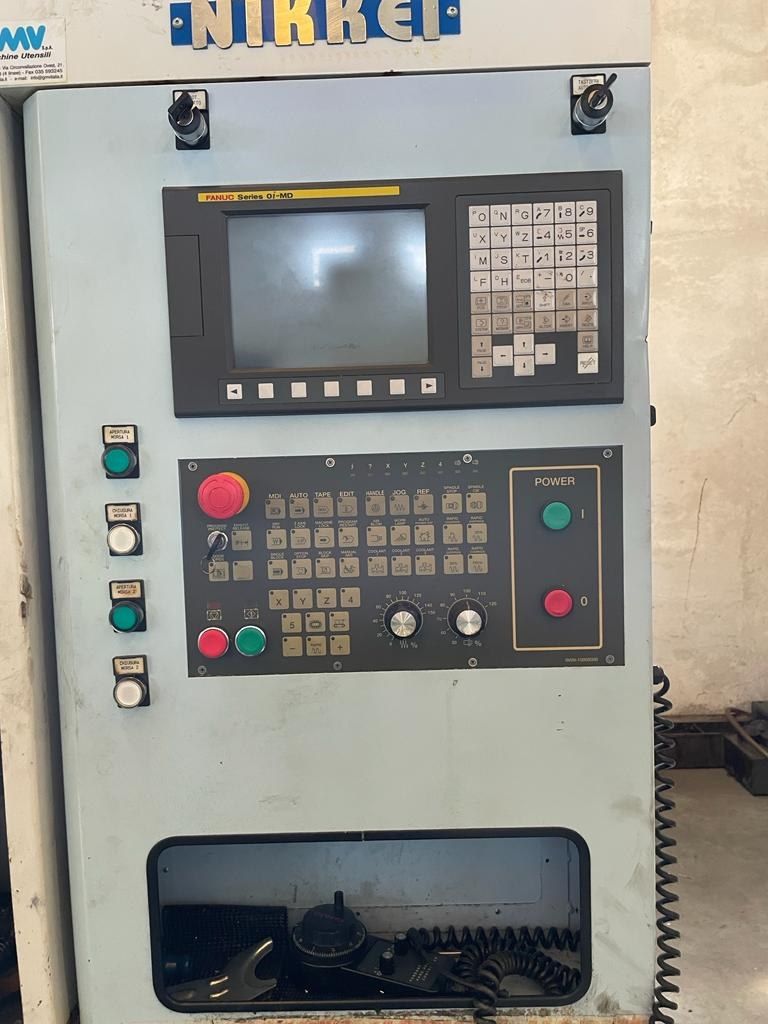

C.N.C: FANUC 0iMC

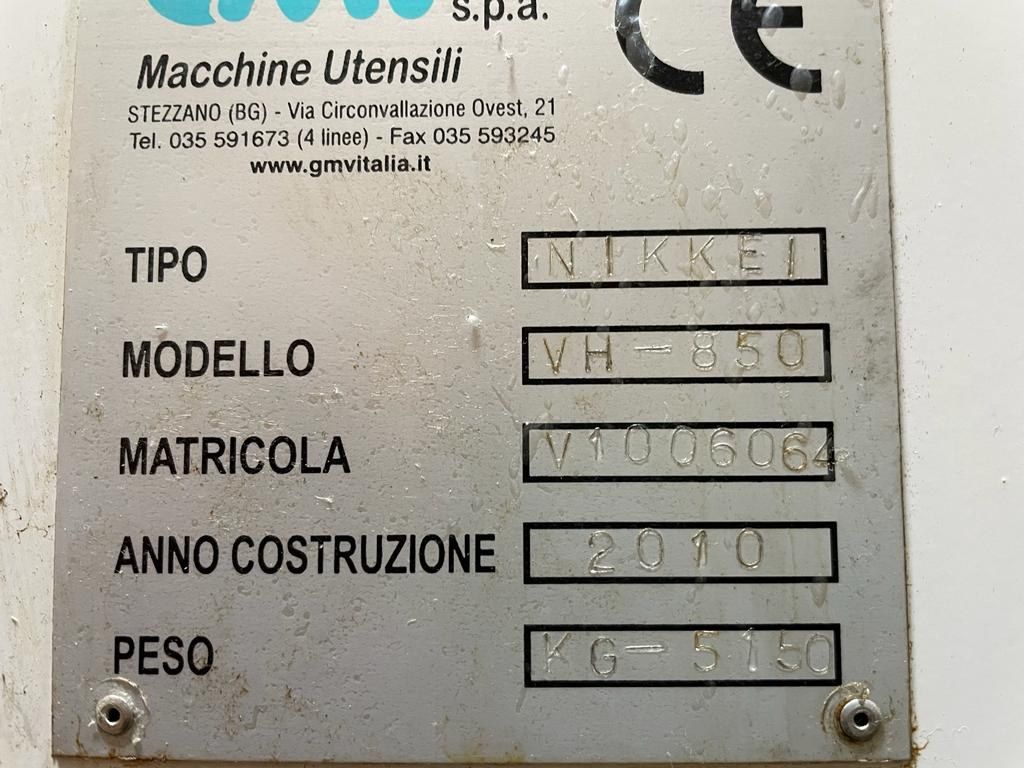

Serial number: 1006064
Technical information
Table
- Table dimensions: 1000x550 mm
- T slots width/ pitch: 3/125 mm
- Max table load: 650 kg
Turning capacity
- Longitudinal X-travel: 850 mm
- Cross Y-travel: 500 mm
- Vertical Z-travel: 520 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 10000 giri/min.
- Motor power: 7,5/11 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 24.000 (X,Y) 20.000 mm/min
Tool magazine
- Tools holder: 24 nr.
Table mm. : 1000x550
X,Y,Z travels mm. : 850x500x520
Rpm : 10000
Motor power Kw : 7,5/11
ISO : 40
Tools : 24
