NIKKEI
VP1500

Type: Vertical machining center Vertical

Brand: NIKKEI

Model: VP1500

Year: 2011

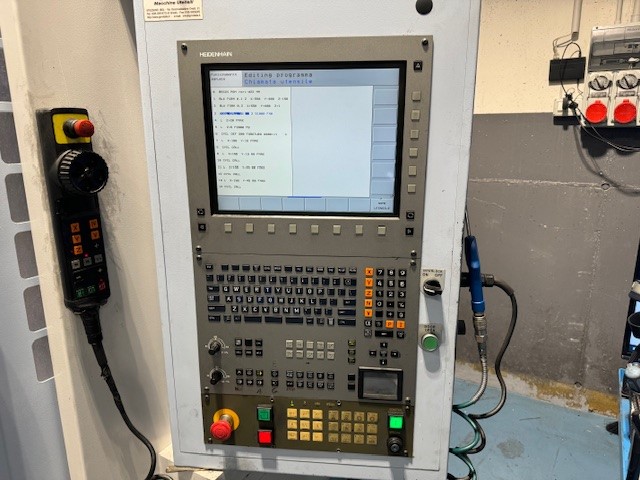

C.N.C: Heidenhain iTNC 530

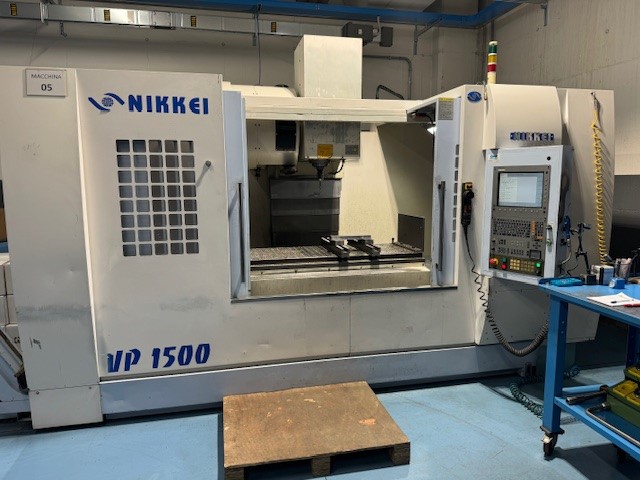

Vertical machining center NIKKEI VP1500
Vertical machining center NIKKEI VP1500
Vertical machining center NIKKEI VP1500

Technical information

Specifications

– Remoted hand wheel
– Interface RS 232
– Automatic power OFF
– Centralised Coolant system
– Electronic gear range motor spindle
– High pressure through spindle 20 bar / 300 lt
– Bottom Cleaning for chips
– Chip conveyor

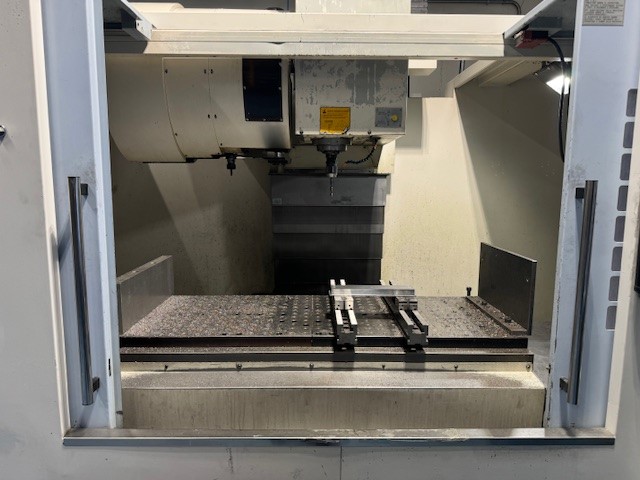

Table

  • Table dimensions: 1600x700 mm
  • T slots width/ pitch: 5/125 mm
  • Max table load: 1000 kg

Turning capacity

  • Longitudinal X-travel: 1500 mm
  • Cross Y-travel: 700 mm
  • Vertical Z-travel: 600 mm

Spindle

  • Spindle nose: 40-din69871 ISO
  • Spindle speed: 10.000 giri/min.
  • Motor power: 12 Kw

Feed rates

  • Rapid feedrate axis X,Y,Z: 20.000(X,Y)15.000 (Z) mm/min

Tool magazine

  • Tools holder: 24 nr.

Table mm. : 1600x700

X,Y,Z travels mm. : 1500x700x600

Rpm : 10.000

Motor power Kw : 12

ISO : 40-DIN69871

Tools : 24
