Home New Horizontal machining center KITAMURA HX1250i

KITAMURA
HX1250G

Type: Horizontal machining center

Brand: KITAMURA

Model: HX1250G

Watch the video

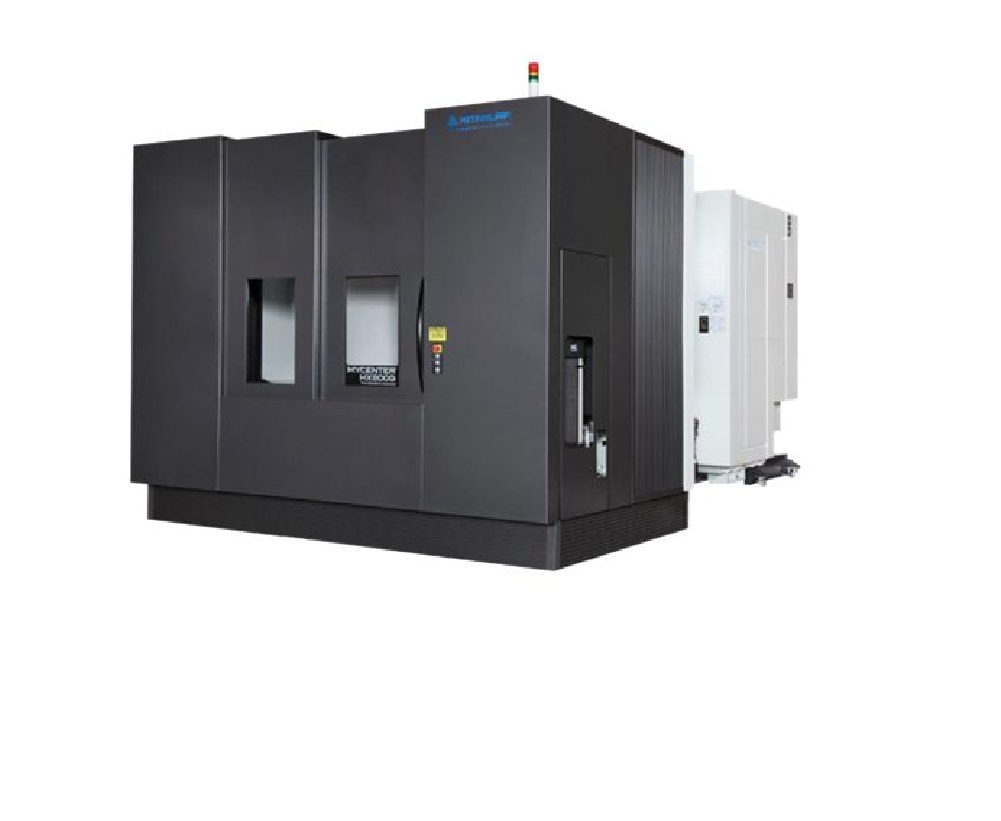

Horizontal machining center KITAMURA HX1250i

Technical information

Table

  • Pallet dimensions: 1250 x 1250 mm
  • No. pallets: 2 nr.
  • Table rotation: 1 - 360° gradi

Turning capacity

  • Longitudinal X-travel: 2040 mm
  • Vertical y-travel: 1320 mm
  • Cross z-travel: 1370 mm
  • Rapid feedrates: 36000 mt./min.

Spindle

  • Spindle nose: 50 ISO
  • Spindle speed: 8000 giri/min.
  • Motor power: 30 Kw

Tool magazine

  • Tools holder: 60 nr.

Pallet mm. : 1250 x 1250

X,Y,Z travels mm. : 2040 x 1320 x 1370

Rpm : 8000

Motor power Kw : 30

ISO : 50

Tools : 60

Watch the video
