KITAMURA

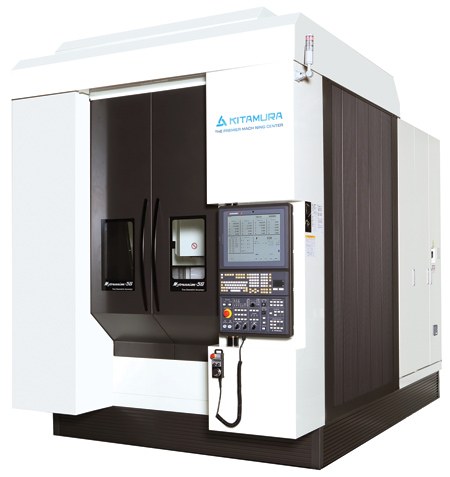

Mytrunnion 5G
Type: Vertical machining center 5 axes
Brand: KITAMURA
Model: Mytrunnion 5G
C.N.C: Mytrunnion 5/G
Technical information
Specifications
Centro di lavoro a 5 assi con 4° asse continuo brandeggiante da -30° a 120° e 5° asse continuo 360°
Table
- Table dimensions: Ø 630 mm
- Max table load: 400 kg
Turning capacity
- Longitudinal X-travel: 815 mm
- Cross Y-travel: 745 mm
- Vertical Z-travel: 500 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 20000 giri/min.
- Motor power: 11-13 Kw
Tool magazine
- Tools holder: 50 (opz. 100) nr.
Table mm. : 630 x 630
X,Y,Z travels mm. : 815x745x500
Rpm : 20000
Motor power Kw : 11-13
ISO : 40
Tools : 50 (opz.100)
