Home New Horizontal machining center KITAMURA SUPERCELL 300G

KITAMURA
SUPERCELL 300G

Type: Horizontal machining center 5- Axis machining center

Brand: KITAMURA

Model: SUPERCELL 300G

C.N.C: Arumatik Mi

Watch the video

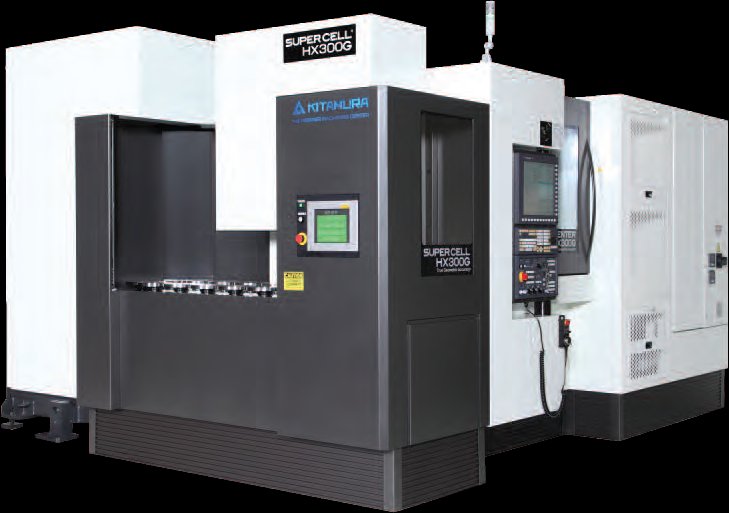

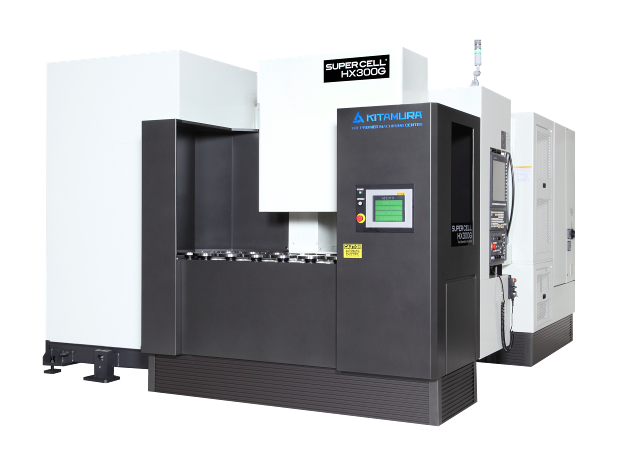

Horizontal machining center KITAMURA SUPERCELL 300G

Technical information

Table

  • Pallet dimensions: 200X200 mm
  • No. pallets: 2 nr.
  • Table rotation: 0,001-360 gradi

Turning capacity

  • Longitudinal X-travel: 460 mm
  • Vertical y-travel: 410 mm
  • Cross z-travel: 460 mm

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 20000 giri/min.
  • Motor power: 18,5-22 Kw

Tool magazine

  • Tools holder: 174 (opz. 230-258-314) nr.

Pallet mm. : 200X200

X,Y,Z travels mm. : 460x410x460

Rpm : 20000

Motor power Kw : 18,5-22

ISO : 40

Tools : 174 (opz. 230-258-314)

Watch the video
