KITAMURA
M4XiD

Type: Vertical machining center

Brand: KITAMURA

Model: M4XiD

C.N.C: Arumatik Jr

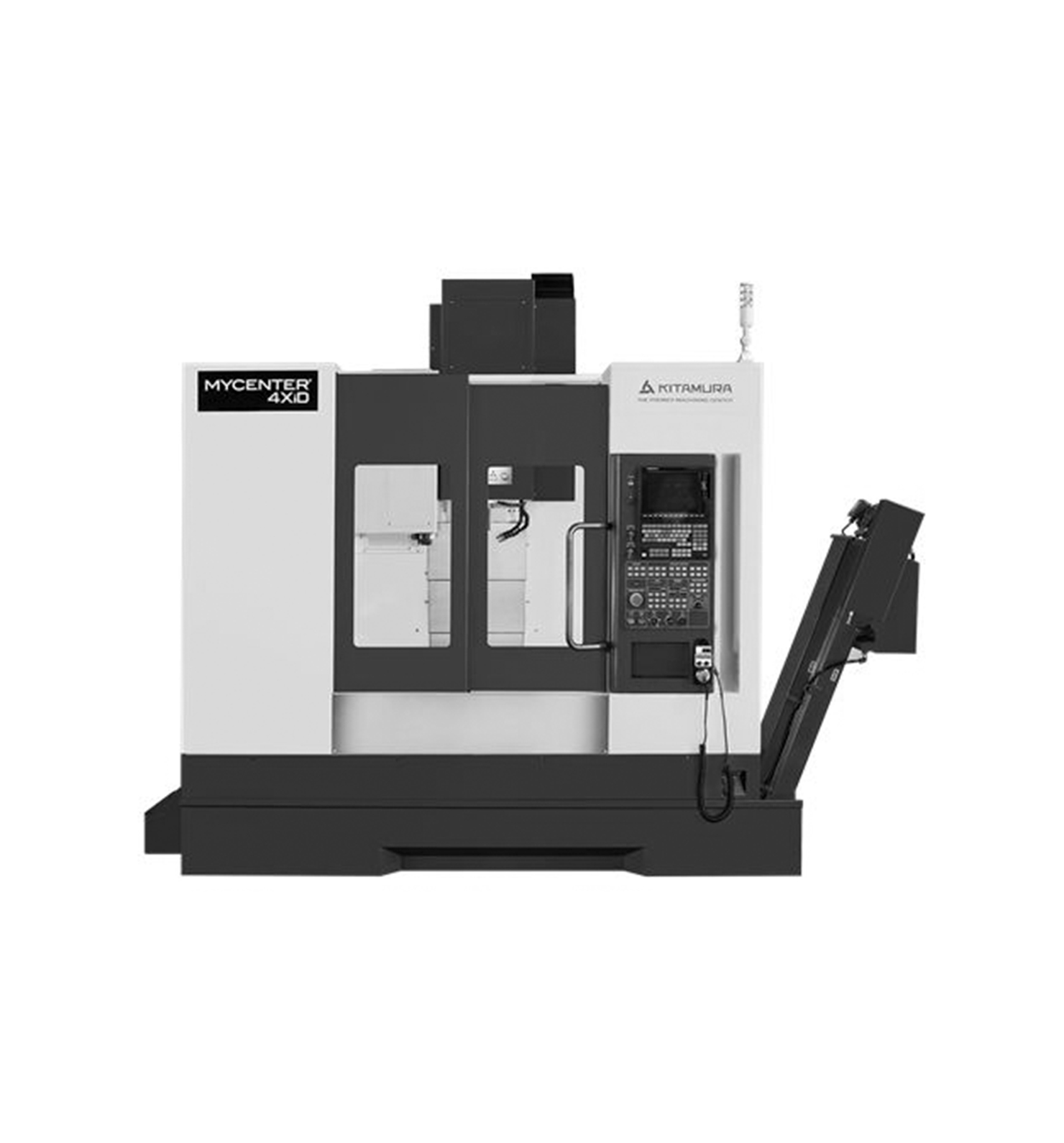

Vertical machining center KITAMURA M4XiD

Technical information

Table

  • Table dimensions: 500x1120 mm
  • T-slot/pitch size: 18x5 mm
  • Max weight allowed: 1200 kg

Capacity

  • Longitudinal X-travel: 1020 mm
  • Cross Y-travel: 510 mm
  • Vertical Z-travel: 510 mm

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 12000 rpm.
  • Motor power: 22/26 Kw

Advances

  • Rapid X,Y,Z axis: 48.000-48.000-42.000 mm/min

Tool Warehouse

  • Tool Stations: 40 no.

Table mm. : 500x1120

X,Y,Z strokes mm. : 1020x510x510

RPM : 12000

Power Kw : 22/26

ISO : 40 / 50

Tools : 40
