Home New Vertical machining center KITAMURA MYCENTER 3XV

KITAMURA
MYCENTER 3XV

Type: Vertical machining center

Brand: KITAMURA

Model: MYCENTER 3XV

C.N.C: Arumatik Jr Pro

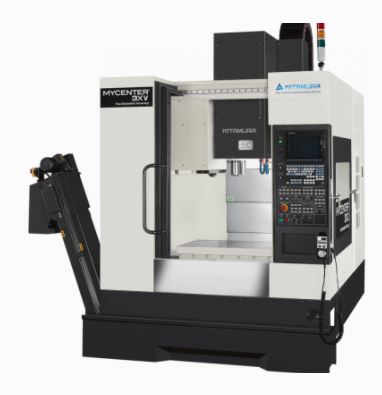

Vertical machining center KITAMURA MYCENTER 3XV
Vertical machining center KITAMURA MYCENTER 3XV
Vertical machining center KITAMURA MYCENTER 3XV

Technical information

Specifications

Con Guide lineari



Table

  • Table dimensions: 500x860 mm
  • T slots width/ pitch: M16x2.0x25 mm
  • Max table load: 800 kg

Turning capacity

  • Longitudinal X-travel: 760 mm
  • Cross Y-travel: 510 mm
  • Vertical Z-travel: 510 mm

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 12000 giri/min.
  • Motor power: 22-26 Kw

Feed rates

  • Rapid feedrate axis X,Y,Z: 48-42 mm/min

Tool magazine

  • Tools holder: 24 (opz 30) nr.

Table mm. : 580x860

X,Y,Z travels mm. : 760x510x510

Rpm : 12000

Motor power Kw : 22-26

ISO : 40

Tools : 24 Opz 30
