KITAMURA
SUPERCELL 1000G

Type: Horizontal machining center 5- Axis machining center

Brand: KITAMURA

Model: SUPERCELL 1000G

C.N.C: Arumatik-MI

Request a quote

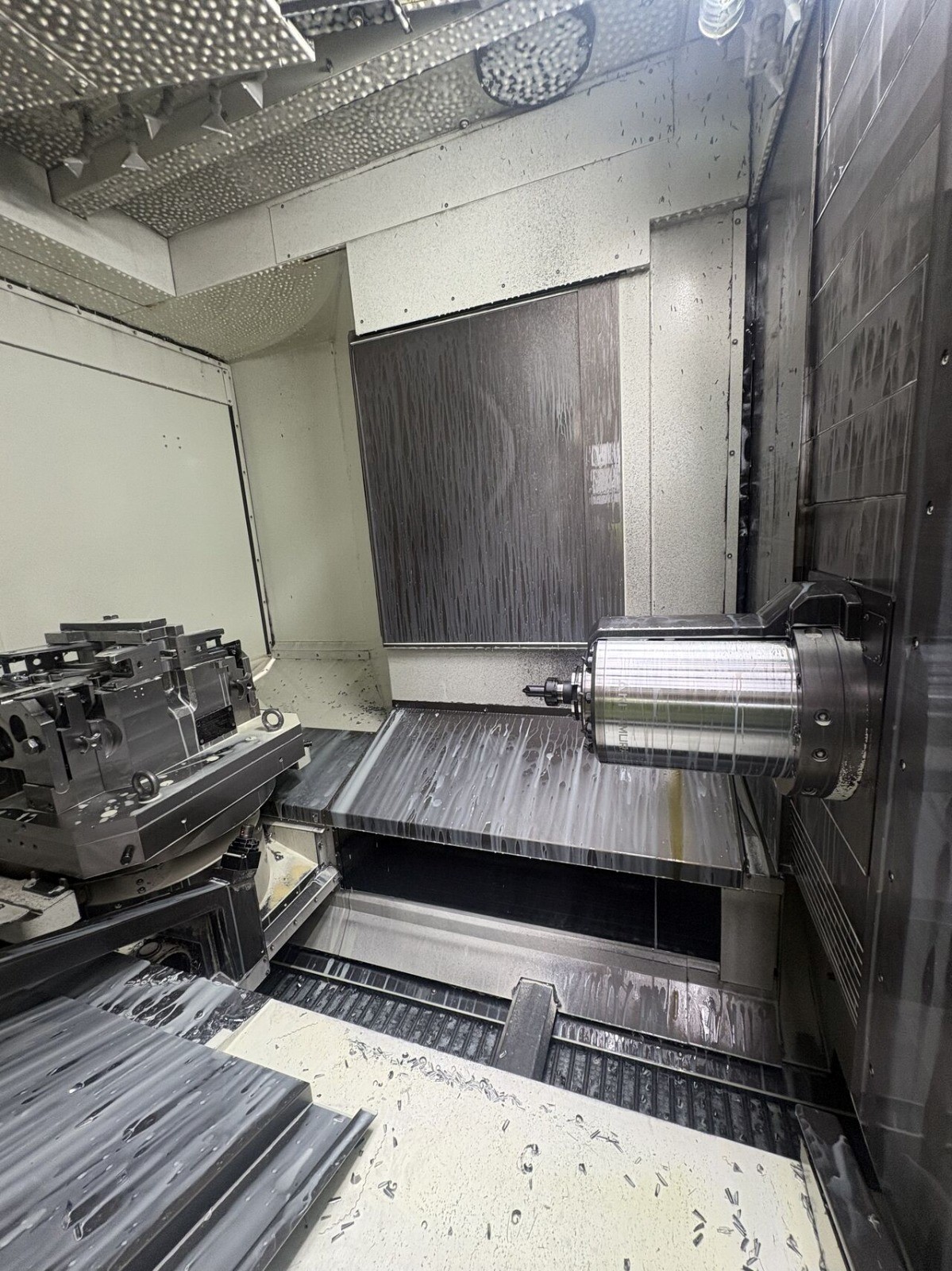

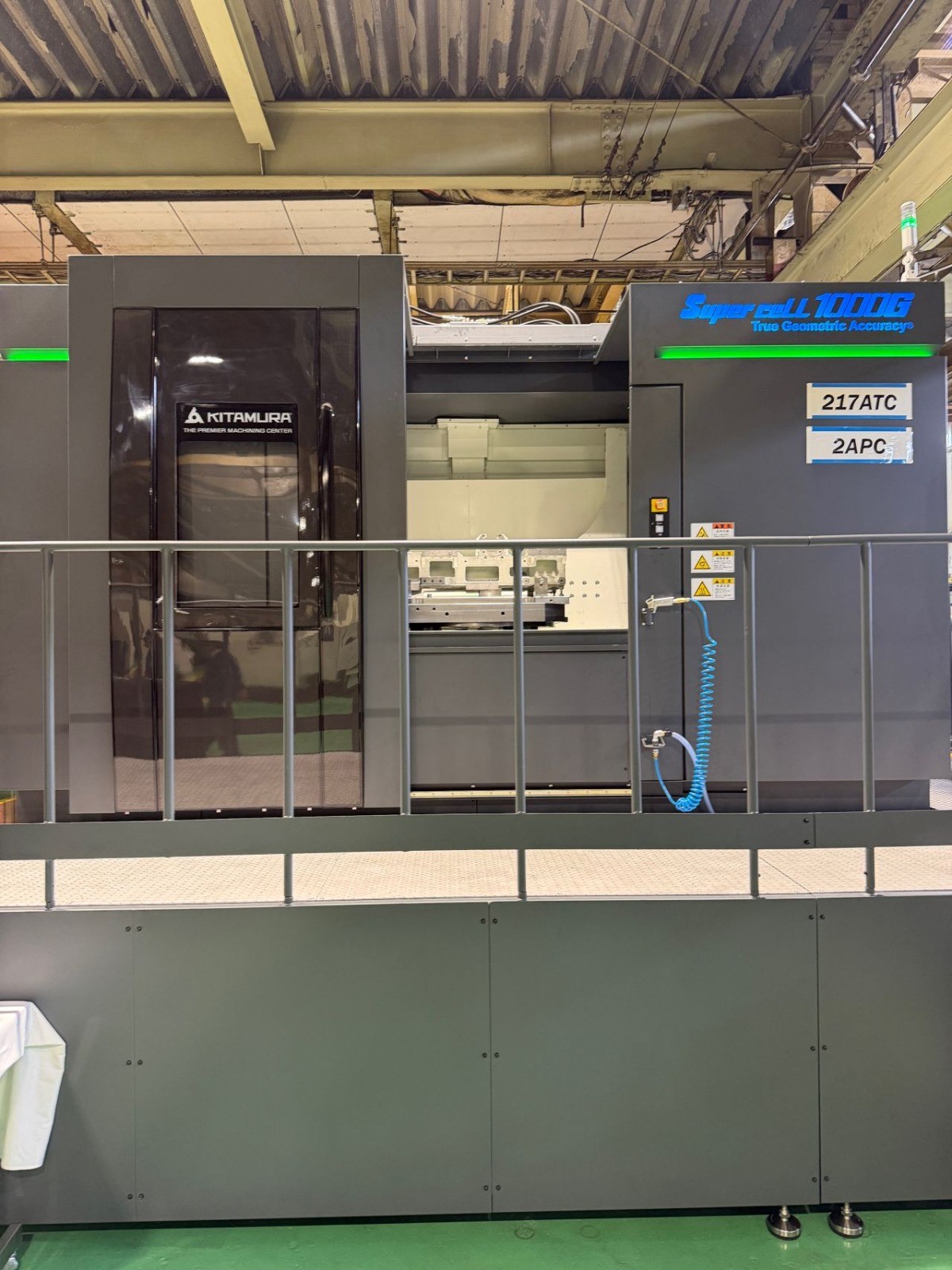

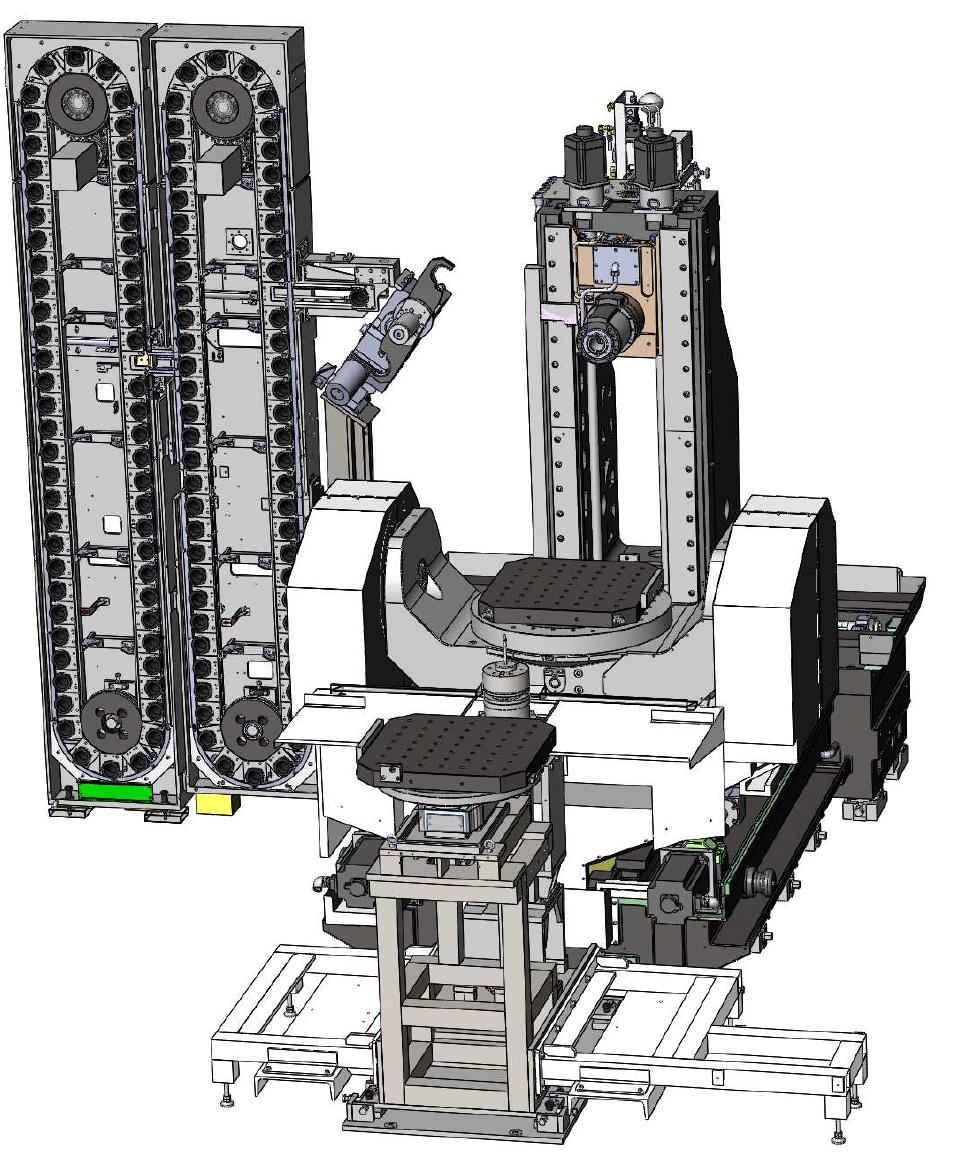

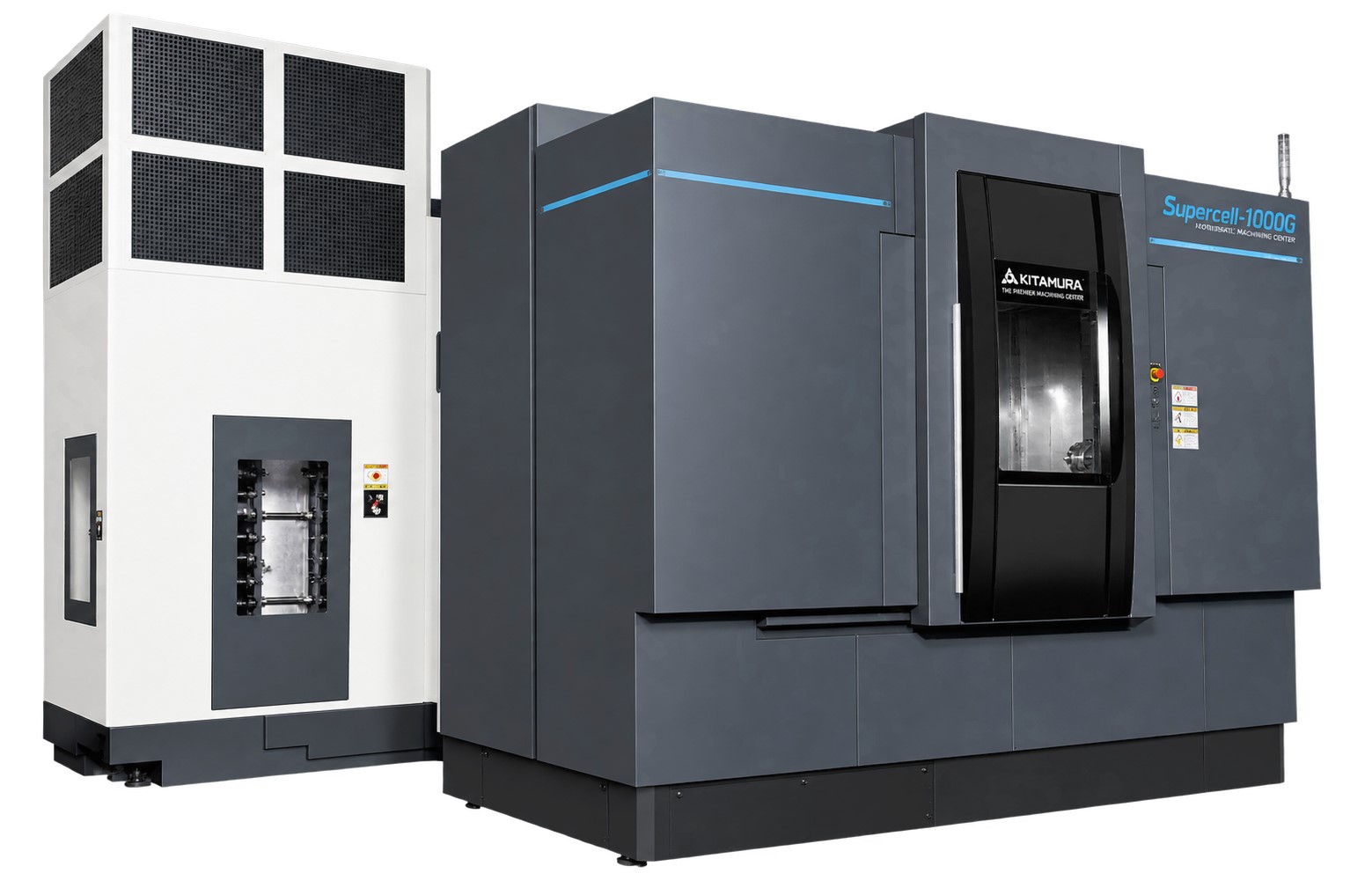

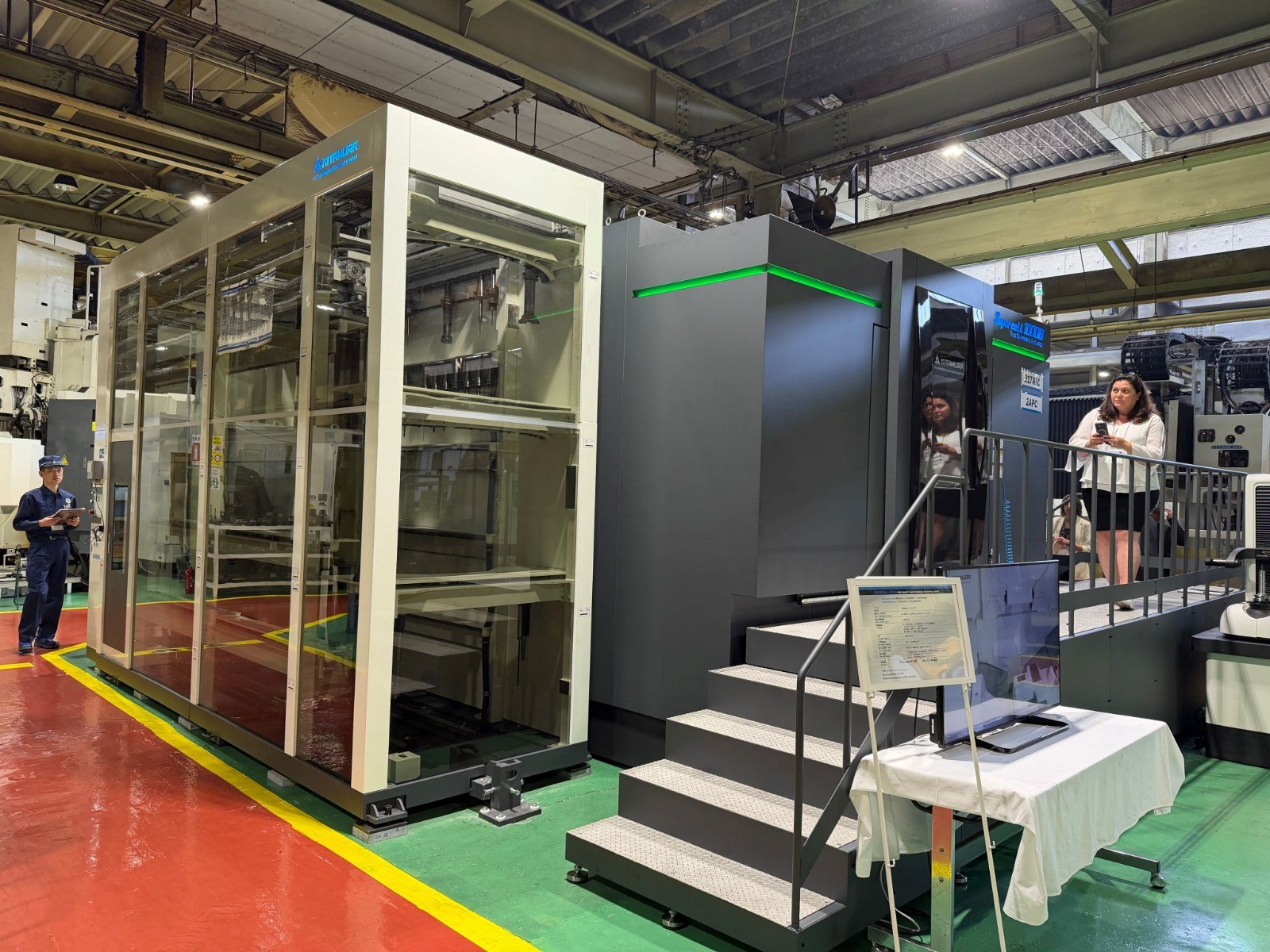

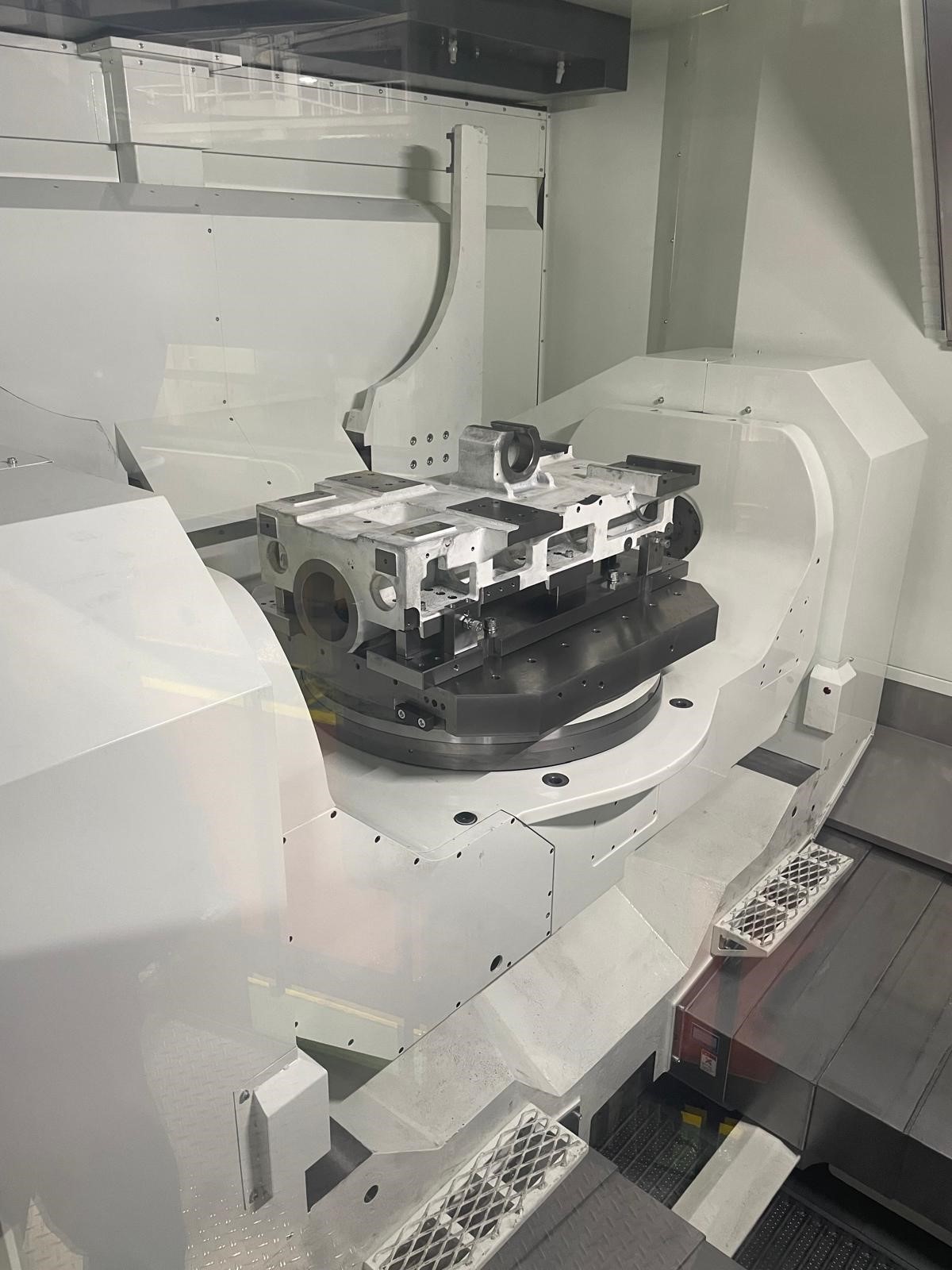

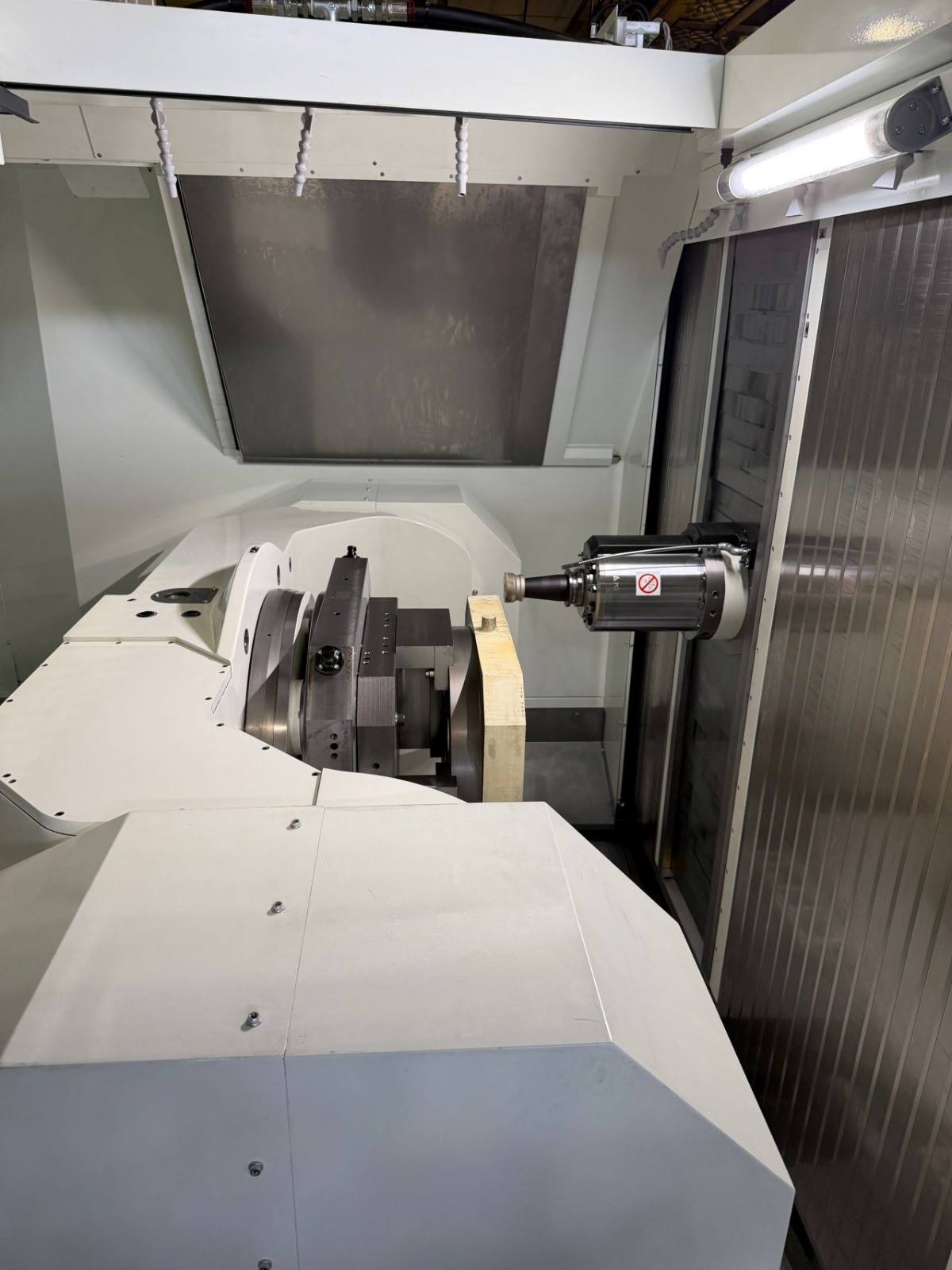

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

SUPERCELL 1000G

Technical information

Table

Pallet dimensions: 800x800 mm
No. pallets: 2 nr.
Table rotation: 0-360° gradi

Turning capacity

Longitudinal X-travel: 1570 mm
Vertical y-travel: 1300 mm
Cross z-travel: 1300 mm
Rapid feedrates: 60 mt./min.

Spindle

Spindle nose: 50 ISO
Spindle speed: 12000 giri/min.

Tool magazine

Tools holder: 122 nr.

Pallet mm. : 800x800

X,Y,Z travels mm. : 1570x1300x1300

Rpm : 12000

Motor power Kw :

ISO : 50

Tools : 122
