PALMARY
PC 24 / 2410 /2412 S

Type: Centerless grinder Hydraulic

Brand: PALMARY

Model: PC 24 / 2410 /2412 S

Request a quote

Watch the video

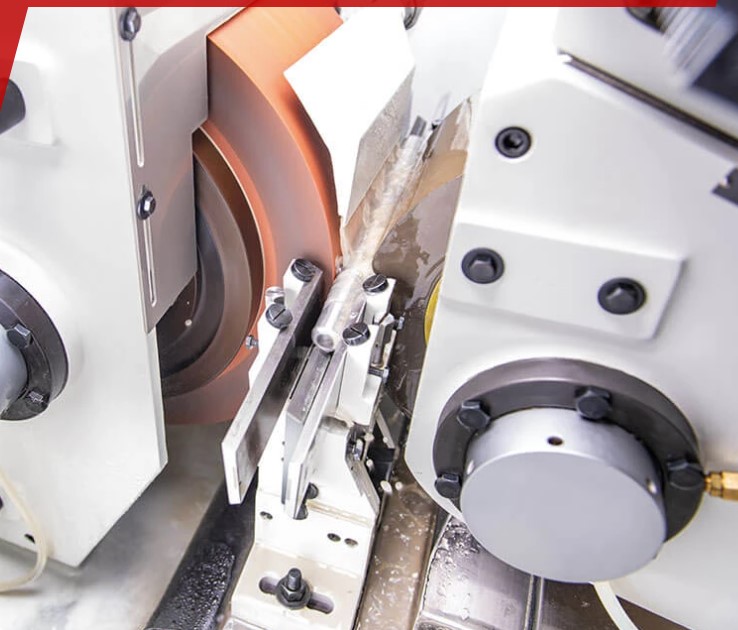

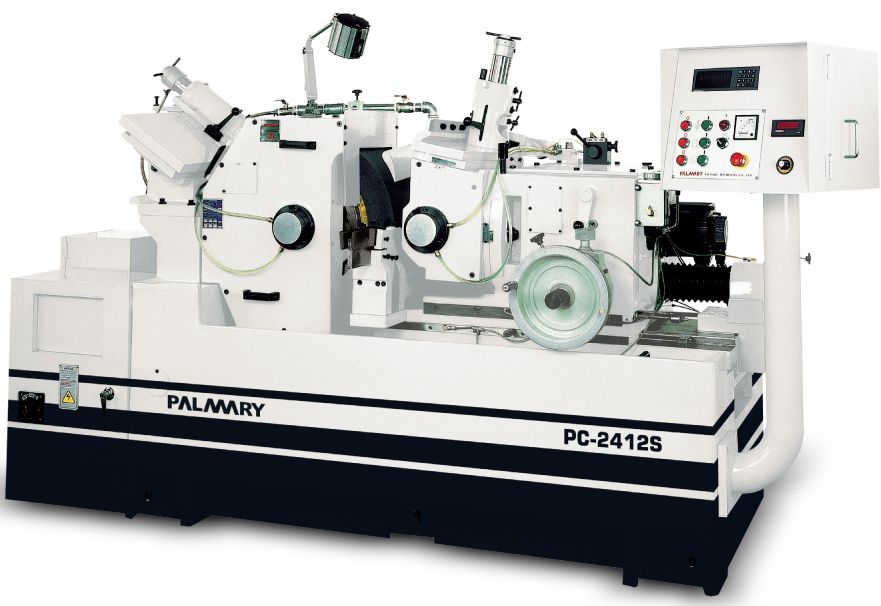

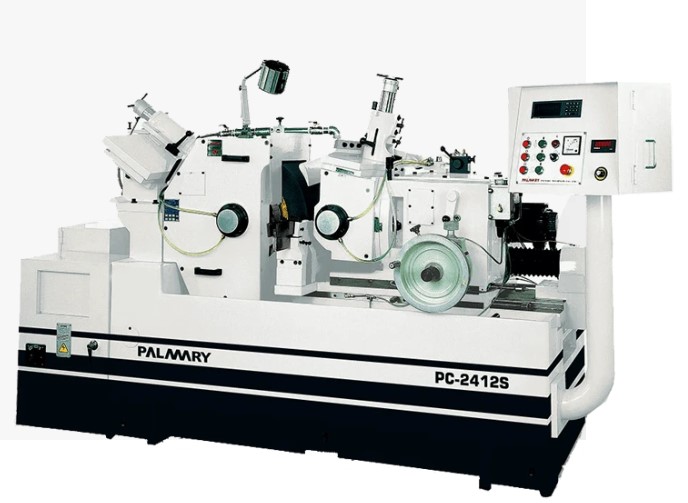

Centerless grinder PALMARY PC 24 / 2410 /2412 S

Centerless grinder PALMARY PC 24 / 2410 /2412 S

Centerless grinder PALMARY PC 24 / 2410 /2412 S

Centerless grinder PALMARY PC 24 / 2410 /2412 S

Centerless grinder PALMARY PC 24 / 2410 /2412 S

Technical information

Specifications

S= WITH SERVO MOTOR

Turning capacity

Grinding Ø: Da 1 a 100 mm

Specific properties

Grinding wheel diam. for PC 24: 610x205x304.8 mm
Grinding wheel diam. for PC 2410: 610x255x304.8 mm
Grinding wheel diam. for PC 2412: 610x305x355.6 mm
Regulating wheel diam for PC 24: 305x205x127 mm
Regulating wheel diam for PC 2410: 305x255x127 mm
Regulating wheel diam forPC 2412: 330x305x127 mm
Linear velocity: 40 m/s

Grinding Ø : Da 1 a 100 mm

Grinding Wheel Ø x thickness/ bore :

Wheel width : 610x205/255/305x304.8/355.6

Regulating wheel Ø x thickness/ bore :

Grinding wheel power :

Dimension (electrical cabinet included) :

Weight :

Grinding lenght :
