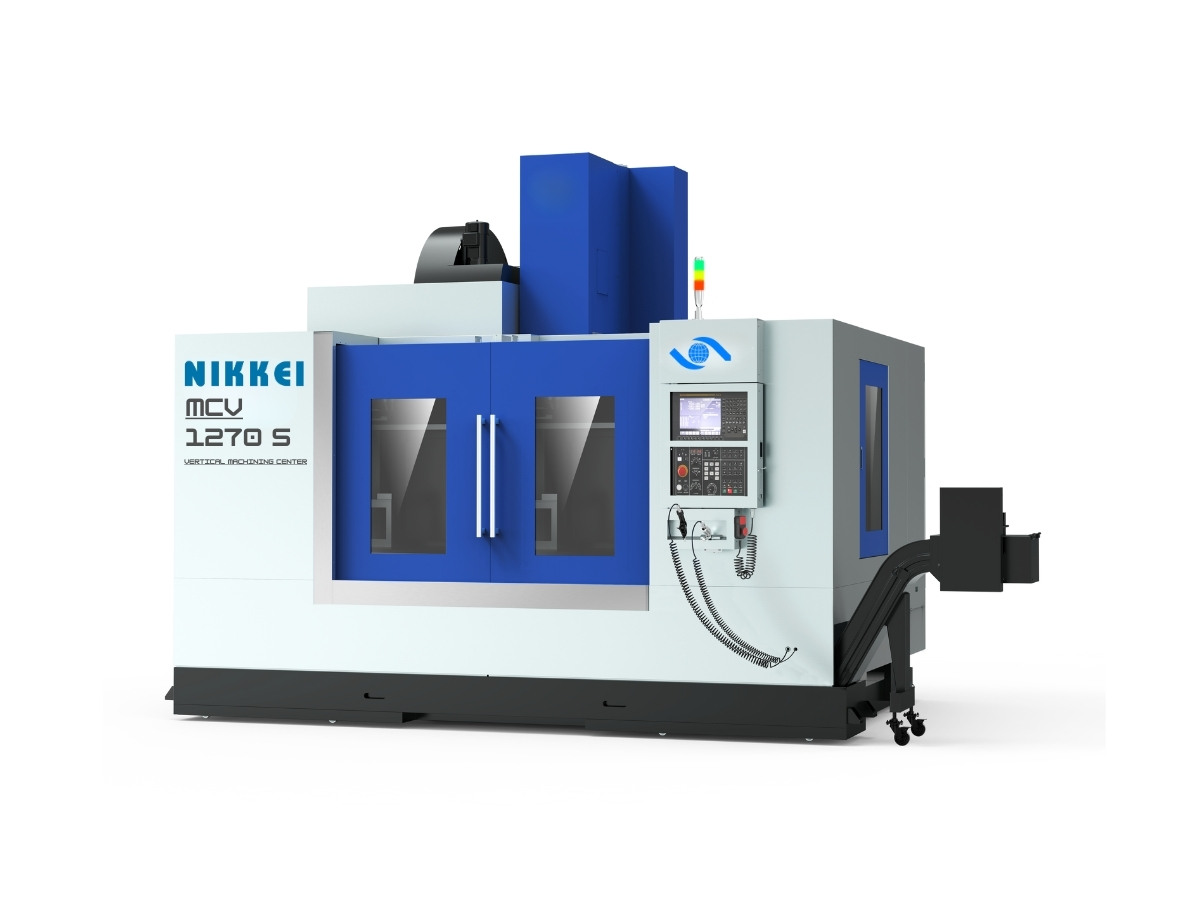

NIKKEI
MCV 1270S

Type: Vertical machining center Vertical

Brand: NIKKEI

Model: MCV 1270S

C.N.C: Fanuc 0iMF Plus

Request a quote

MCV 1270S

MCV 1270S

Technical information

Table

Table dimensions: 1400x700 mm
T-slot/pitch size: 5-18x125 mm
Max weight allowed: 1000 kg

Capacity

Longitudinal X-travel: 1200 mm
Cross Y-travel: 700 mm
Vertical Z-travel: 700 mm

Spindle

Spindle nose: DIN40 ISO
Spindle speed: 12000 rpm.
Motor power: 11/15 Kw

Advances

Rapid X,Y,Z axis: 24000/24000/24000 mm/min

Tool Warehouse

Tool Stations: 24 no.

Table mm. : 1400x700

X,Y,Z strokes mm. : 1200x700x700

RPM : 12.000

Power Kw : 11/15

ISO : DIN 40

Tools : 24
