NIKKEI

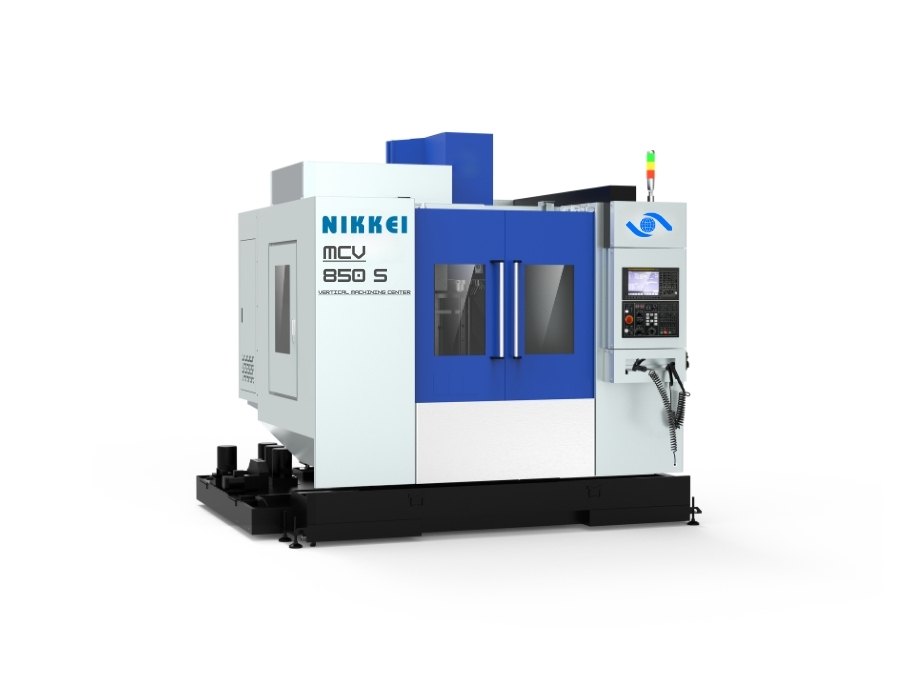

MCV 850S

Type: Vertical machining center Vertical

Brand: NIKKEI

Model: MCV 850S

C.N.C: Fanuc 0iMF

Request a quote

MCV 850S

MCV 850S

Technical information

Table

Table dimensions: 1000x500 mm
T-slot/pitch size: 5-18x100 mm
Max weight allowed: 500 kg

Capacity

Longitudinal X-travel: 850 mm
Cross Y-travel: 500 mm
Vertical Z-travel: 550 mm

Spindle

Spindle nose: DIN 40 ISO
Spindle speed: 10.000 rpm.
Motor power: 11/15 Kw

Advances

Rapid X,Y,Z axis: 48000/48000/32000 mm/min

Tool Warehouse

Tool Stations: 24 no.

Table mm. : 1000x500

X,Y,Z strokes mm. : 850x500x550

RPM : 10000

Power Kw : 11/15

ISO : DIN 40

Tools : 24
