NIKKEI

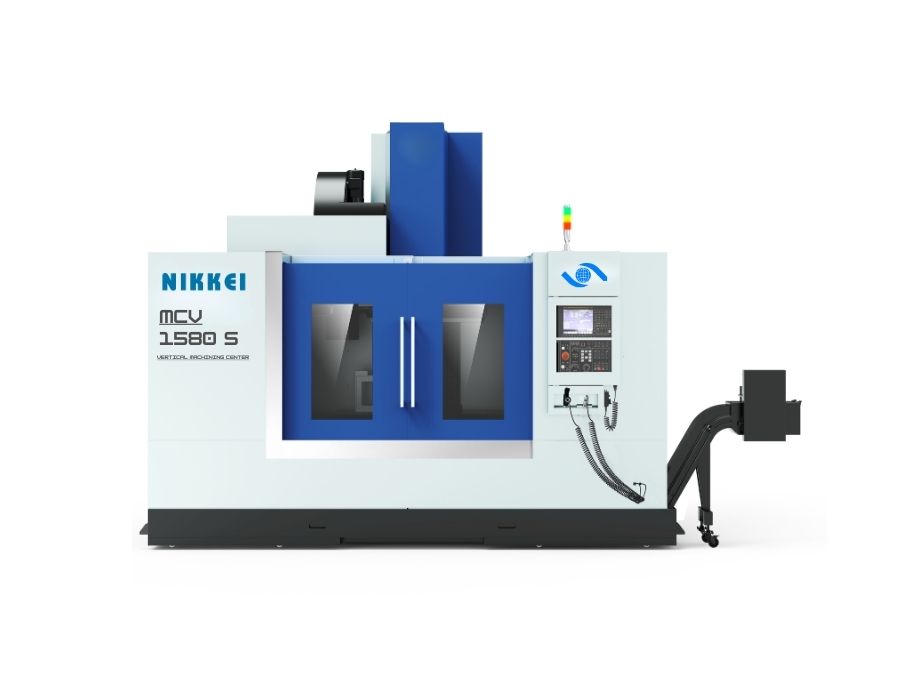

MCV 1580S

Type: Vertical machining center Vertical

Brand: NIKKEI

Model: MCV 1580S

C.N.C: Fanuc 0iMF Plus

Request a quote

MCV 1580S

MCV 1580S

Technical information

Table

Table dimensions: 1700x800 mm
T-slot/pitch size: 5-22x160 mm
Max weight allowed: 1200 kg

Capacity

Longitudinal X-travel: 1500 mm
Cross Y-travel: 800 mm
Vertical Z-travel: 800 mm

Spindle

Spindle nose: DIN 40/ DIN 50 ISO
Spindle speed: 12.000 (ISO 40) / 6.000 (ISO 50) rpm.
Motor power: 11/15 (ISO 40) - 15-18.5 (ISO 50) Kw

Advances

Rapid X,Y,Z axis: 24000/24000/24000 mm/min

Tool Warehouse

Tool Stations: 24 no.

Table mm. : 1700x800

X,Y,Z strokes mm. : 1500x800x800

RPM : 12.000 (ISO 40) / 6.000 (ISO 50)

Power Kw : 11/15 (ISO 40) - 15-18.5 (ISO 50)

ISO : DIN 40/ DIN 50

Tools : 24
