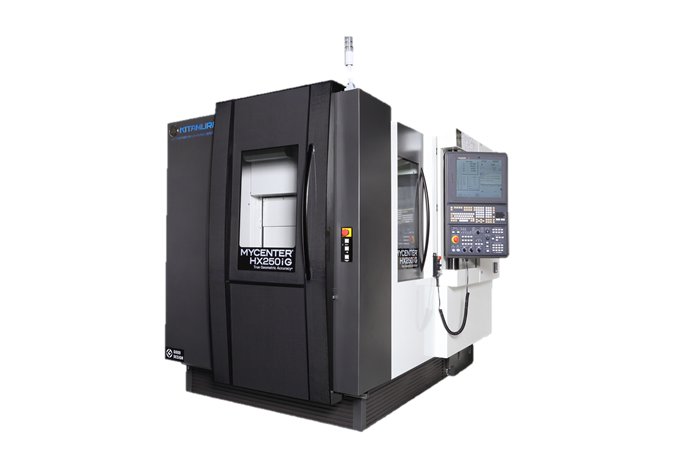

Home New Horizontal machining center KITAMURA HX250iG

KITAMURA
HX250iG

Type: Horizontal machining center

Brand: KITAMURA

Model: HX250iG

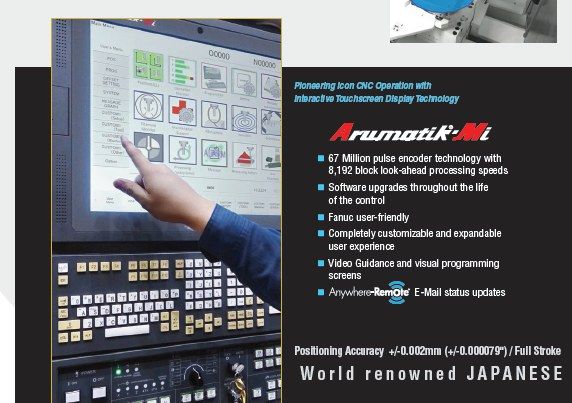

C.N.C: Arumatik Mi

Watch the video
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG
Horizontal machining center KITAMURA HX250iG

Technical information

Table

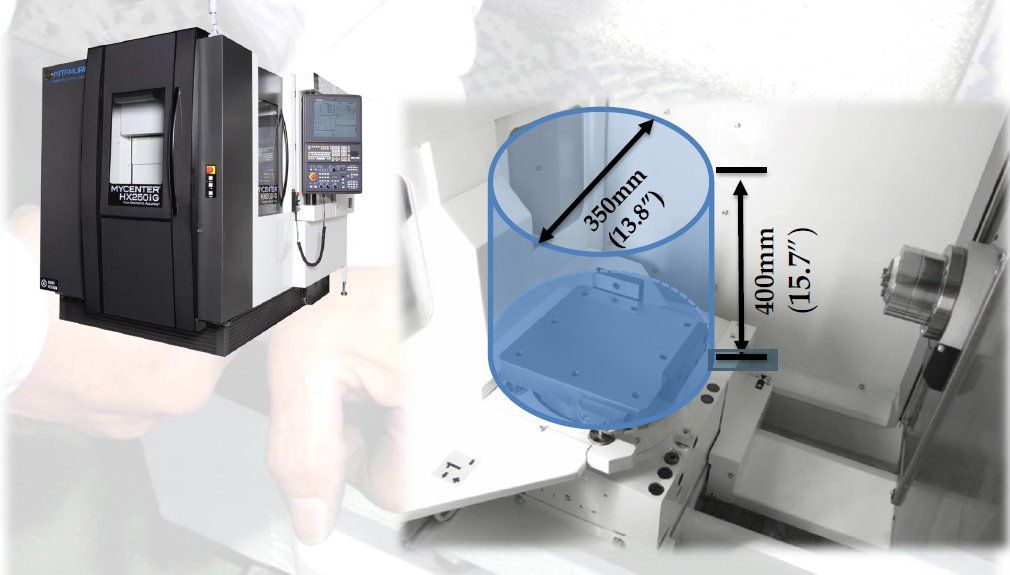

  • Pallet dimensions: 254 x 254 mm

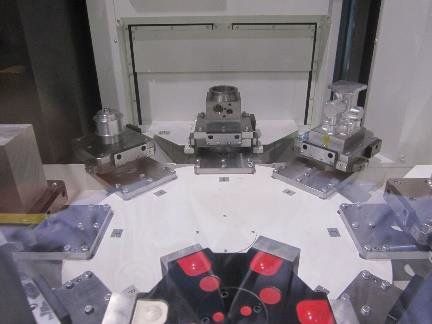

  • No. pallets: da 2 a 10 nr.
  • Table rotation: 0,001 - 360 gradi

Turning capacity

  • Longitudinal X-travel: 305 mm
  • Vertical y-travel: 305 mm
  • Cross z-travel: 330 mm
  • Rapid feedrates: 60 mt./min.

Spindle

  • Spindle nose: 30 /hsk E40 ISO
  • Spindle speed: 15.000 (30.000) giri/min.
  • Motor power: 11 (18) Kw

Tool magazine

  • Tools holder: 40 - 52 - 102 nr.

Pallet mm. : 254 x 254

X,Y,Z travels mm. : 305 x 305 x 330

Rpm : 15.000

Motor power Kw : 11

ISO : 30

Tools : 40

Watch the video
