WELE
SB 216/316/416

Type: Vertical machining center Gantry

Brand: WELE

Model: SB 216/316/416

C.N.C: Fanuc 18iM

Request a quote

Watch the video

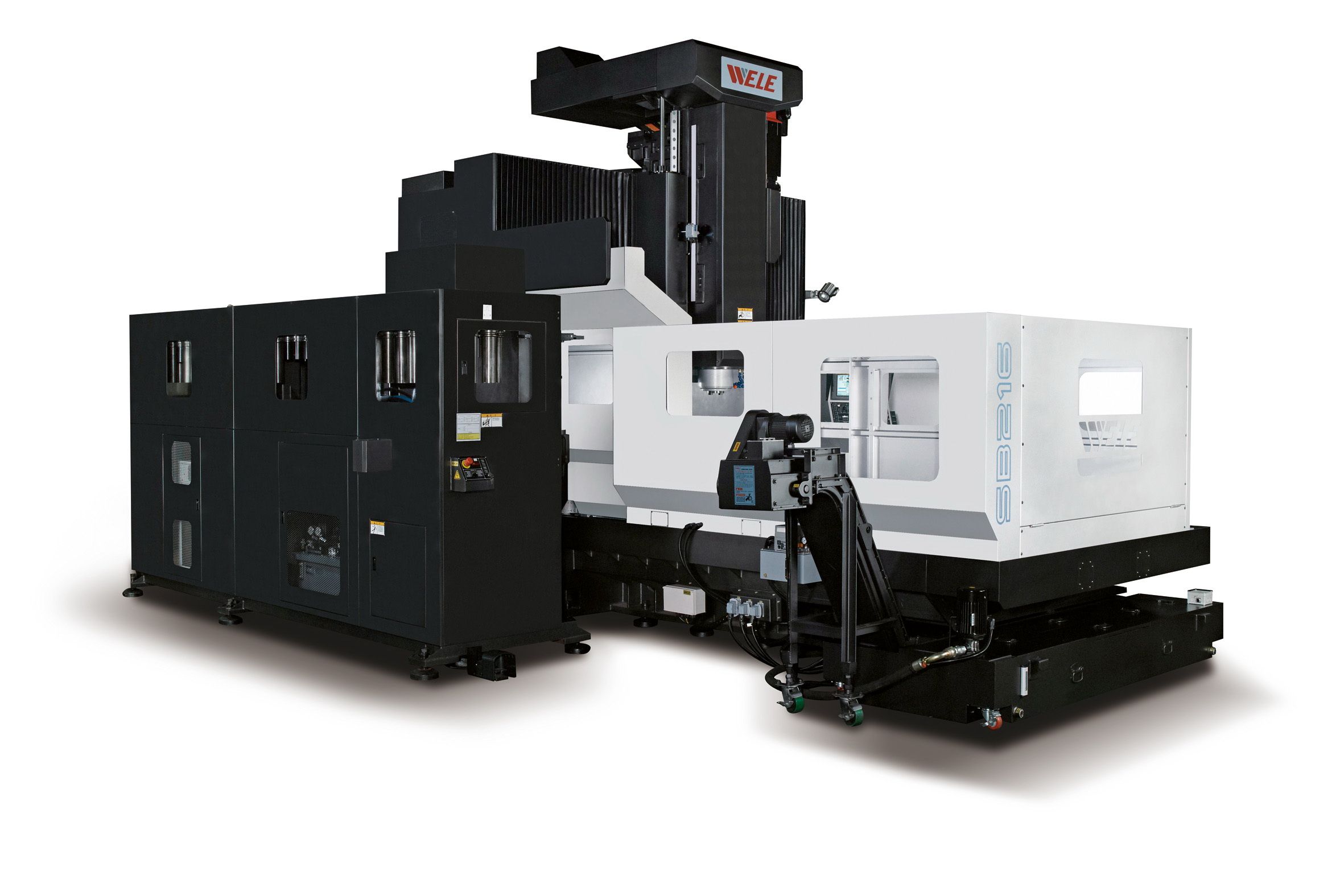

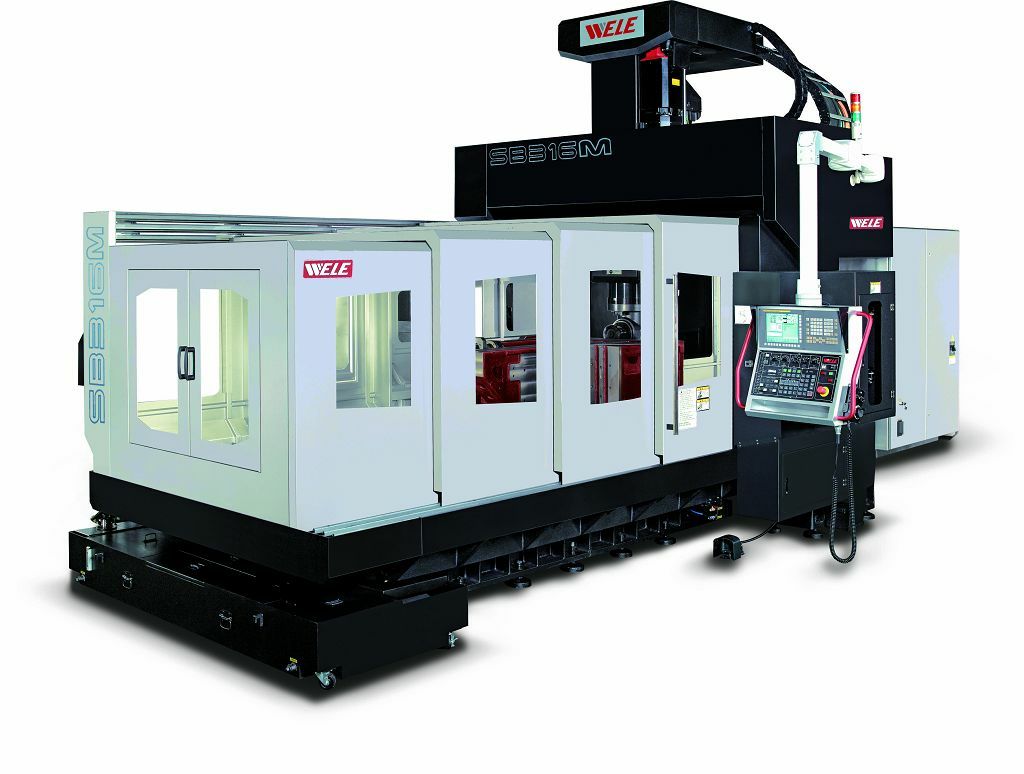

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Vertical machining center WELE SB 216/316/416

Technical information

Table

Table dimensions: 2000/3000/4000x1500 mm

Capacity

Longitudinal X-travel: 2120/3060/4060 mm
Cross Y-travel: 1600 mm
Vertical Z-travel: 800 mm

Spindle

Spindle nose: 50 ISO
Spindle speed: 6000 rpm.
Motor power: 22 - 26 Kw

Tool Warehouse

Tool Stations: 32 no.

Specific properties

Max table load capacity: 8000 kg

Table mm. : 2000/3000/4000x1500

X,Y,Z strokes mm. : 2120/3060/4060x1600x800

RPM : 6000

Power Kw : 22 - 26

ISO : 50

Tools : 32
