Home New Horizontal machining center KITAMURA HX300iG

KITAMURA
HX300iG

Type: Horizontal machining center

Brand: KITAMURA

Model: HX300iG

C.N.C: Arumatik Mi

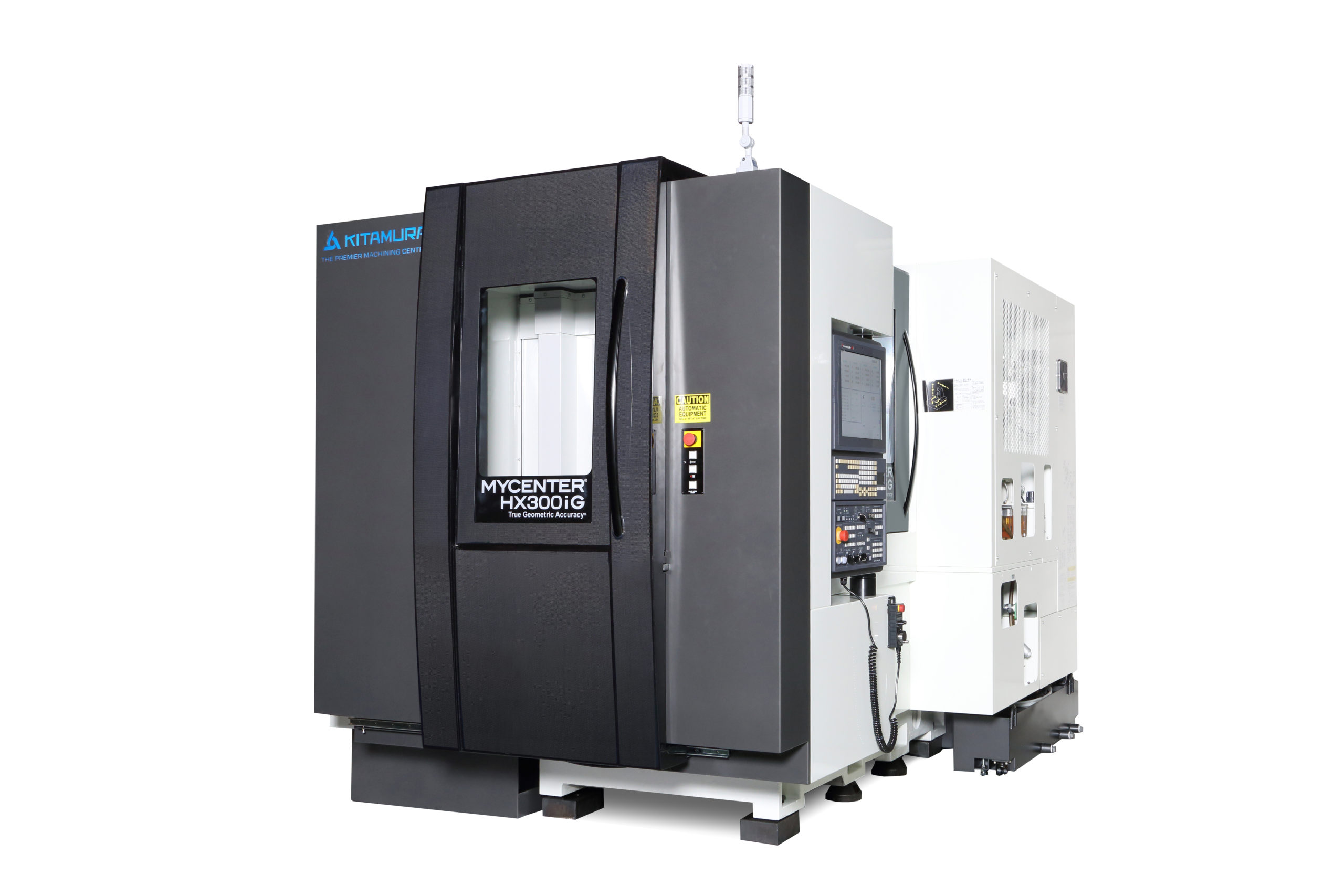

Horizontal machining center KITAMURA HX300iG

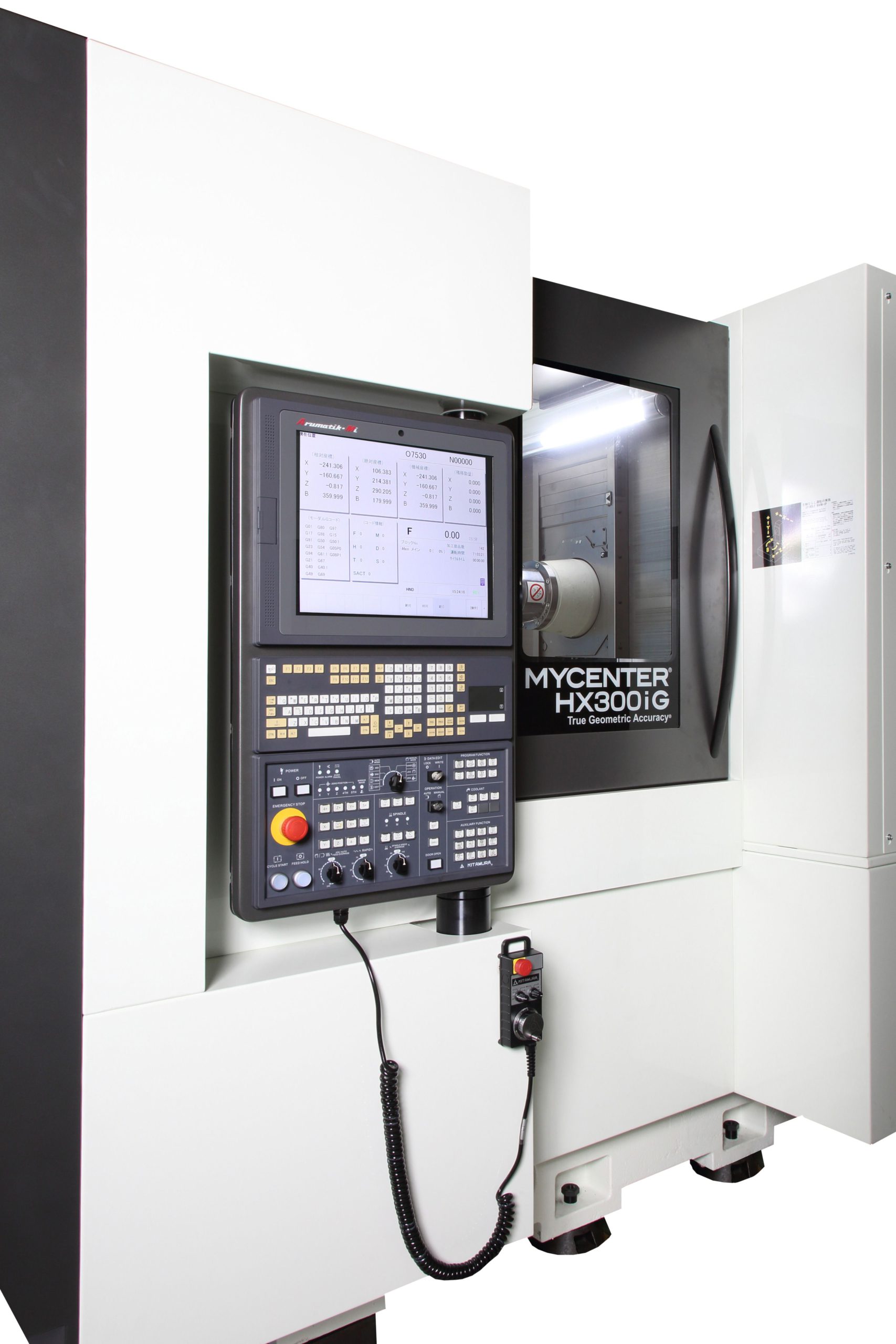

Horizontal machining center KITAMURA HX300iG

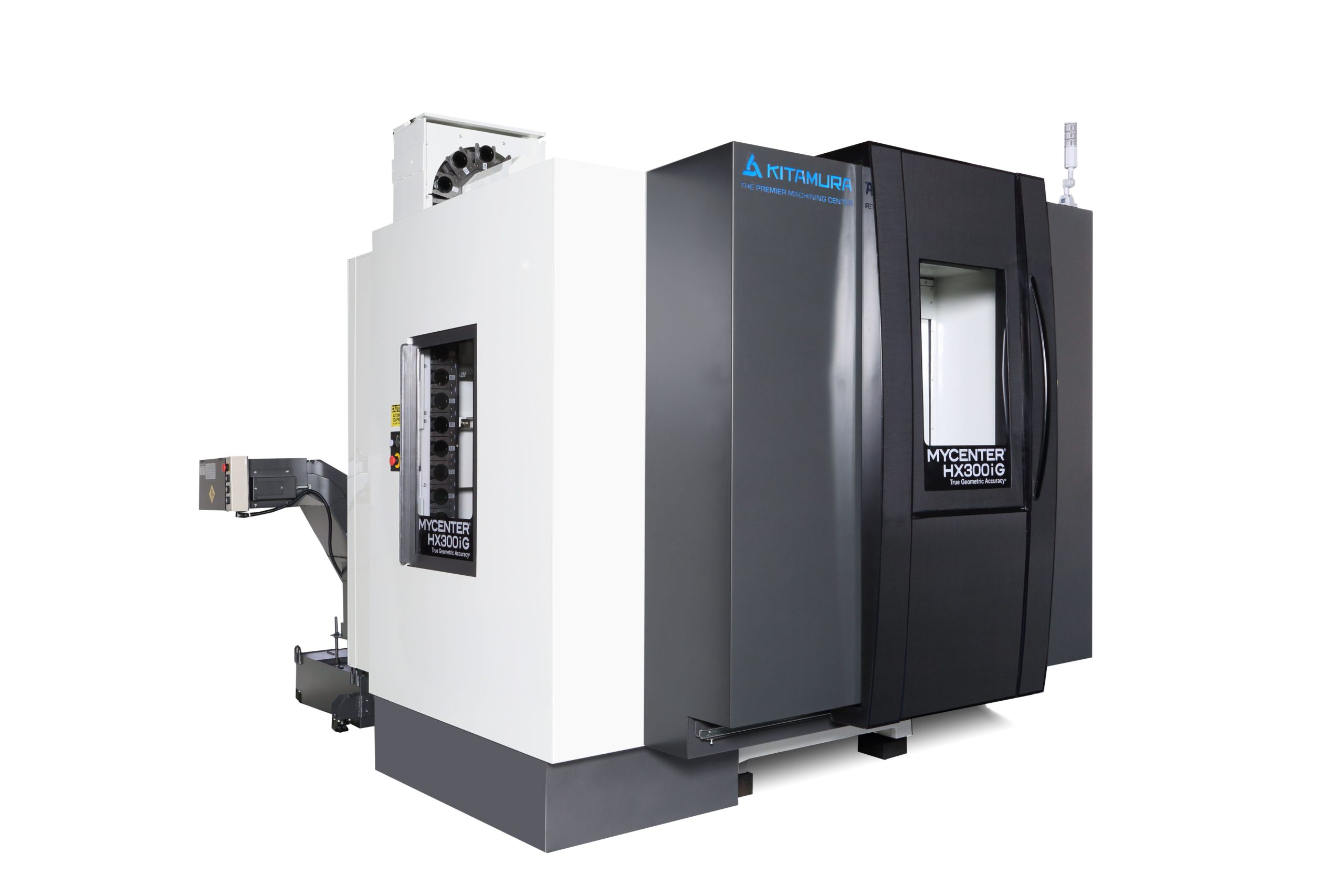

Horizontal machining center KITAMURA HX300iG

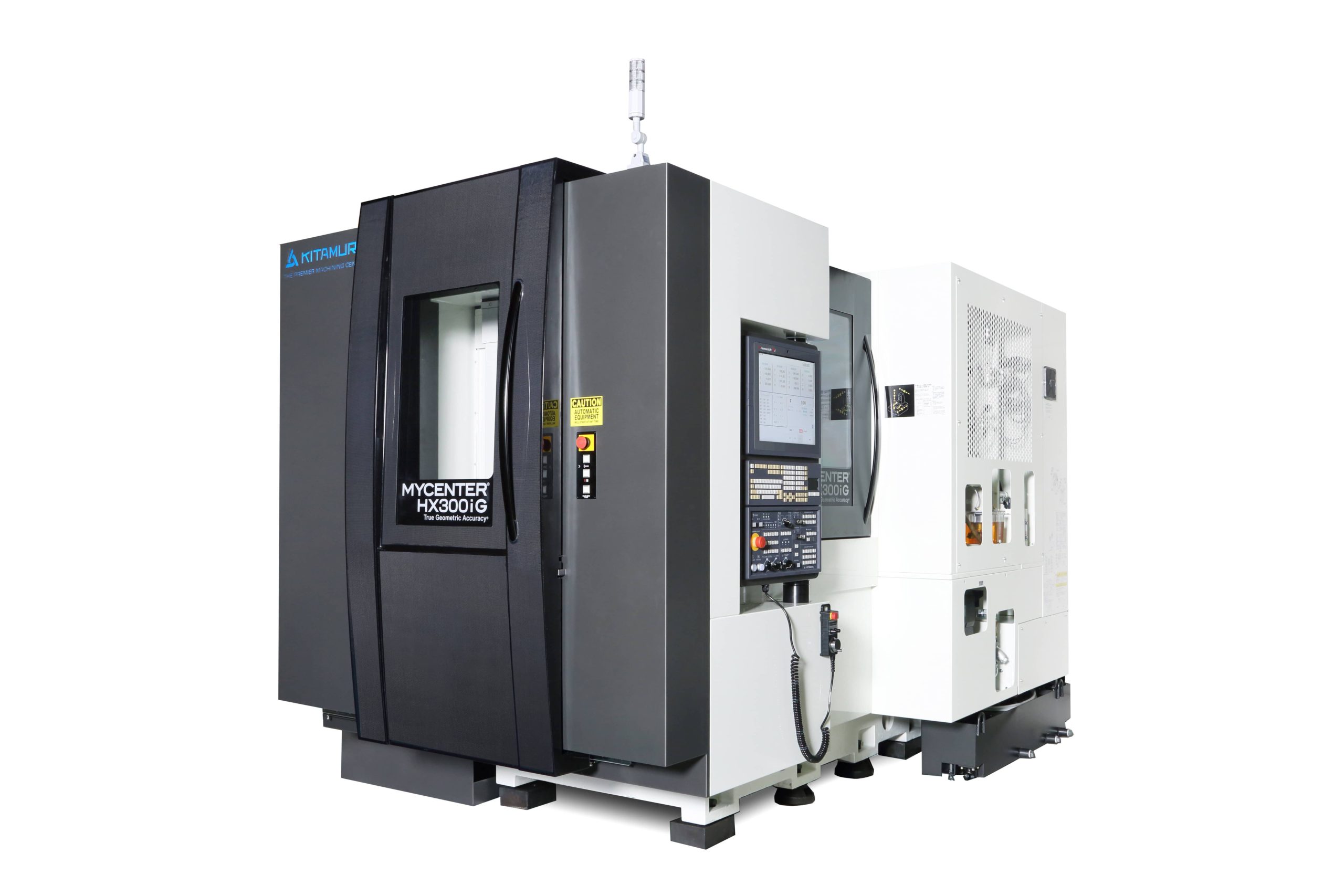

Horizontal machining center KITAMURA HX300iG

Technical information

Table

  • Pallet dimensions: 305x305 mm
  • No. pallets: 2 nr.
  • Table rotation: 0.001 - 360 gradi

Turning capacity

  • Longitudinal X-travel: 460 mm
  • Vertical y-travel: 510 mm
  • Cross z-travel: 560 mm
  • Rapid feedrates: 60 mt./min.

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 15000 (20000) giri/min.
  • Motor power: 7,5-22 Kw

Tool magazine

  • Tools holder: 50 nr.

Pallet mm. : 305x305

X,Y,Z travels mm. : 460x510x560

Rpm : 15000 (20000)

Motor power Kw : 7,5-22

ISO : 40

Tools : 50
