Home New Vertical machining center KITAMURA MY CENTER 3XD

KITAMURA
MY CENTER 3XD

Type: Vertical machining center

Brand: KITAMURA

Model: MY CENTER 3XD

C.N.C: Arumatik Jr

Watch the video

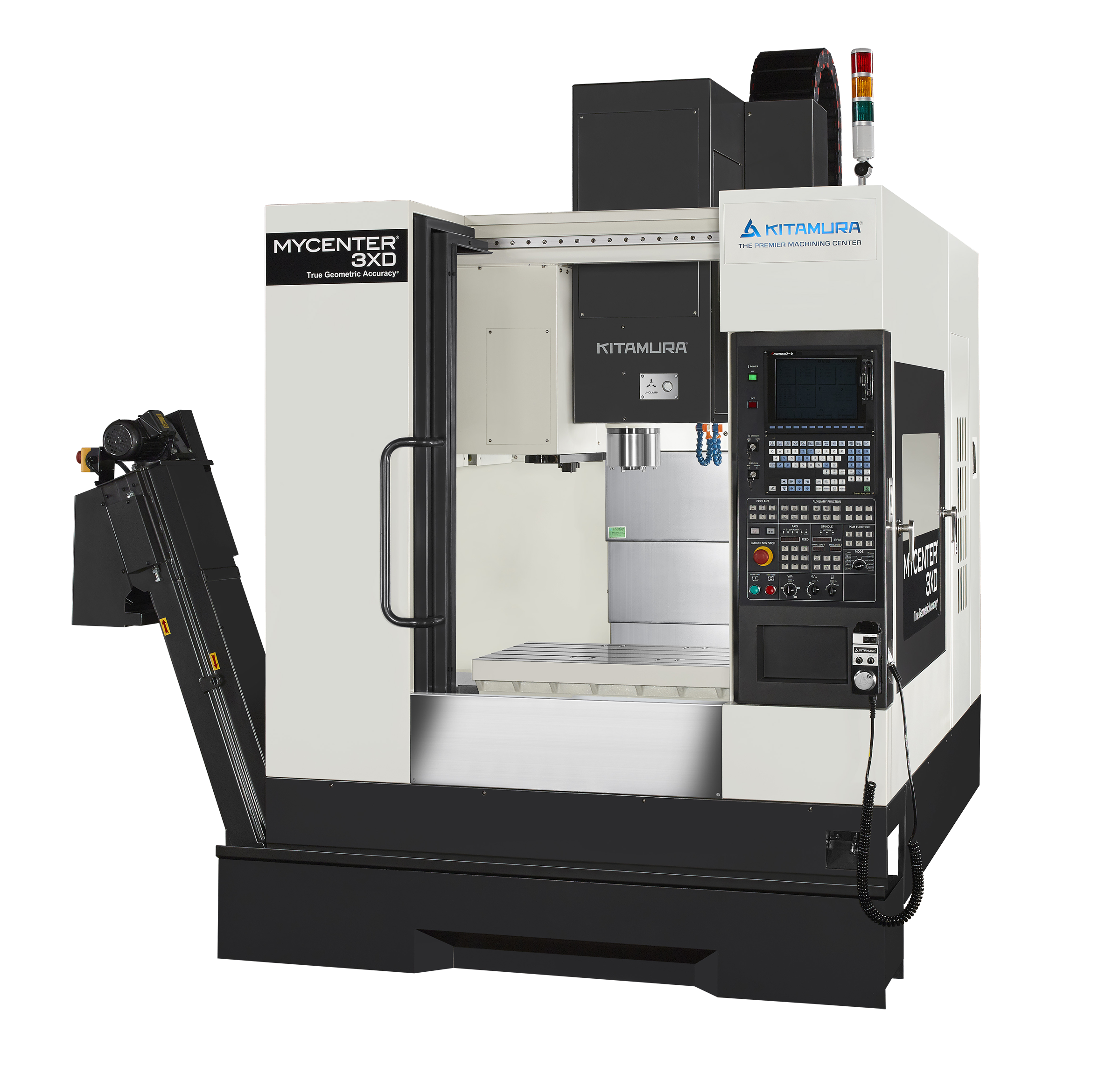

Vertical machining center KITAMURA MY CENTER 3XD

Technical information

Table

  • Table dimensions: 500x680 mm
  • T-slot/pitch size: M16x2.0x25 mm
  • Max weight allowed: 800 kg

Capacity

  • Longitudinal X-travel: 760 mm
  • Cross Y-travel: 510 mm
  • Vertical Z-travel: 510 mm

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 12000 rpm.
  • Motor power: 22-26 Kw

Advances

  • Rapid X,Y,Z axis: 48-42 mm/min

Tool Warehouse

  • Tool Stations: 24 Opz 30 no.

Table mm. : 500x860

X,Y,Z strokes mm. : 760x510x510

RPM : 12000

Power Kw : 22-26

ISO : 40

Tools : 24 Opz 30

Watch the video
